Description
-
乙太網供電
4 個 PoE+ 連接埠能提供高達 60 瓦的功率，為各種支援 PoE 的裝置提供便捷的供電解決方案。 -
VLAN 增強安全性
– 每個乙太網路連接埠都可以指派至一個或多個 VLAN ID，為您的企業提供額外的安全性。 -
QoS 保證流暢的網路體驗
享受基於服務品質流量管理的專用頻寬優先權，以更完善傳輸語音和視訊等關鍵任務流量，揮別拖延問題！ -
適用於群體廣播最佳化的 IGMP 監聽
透過最佳化多媒體流量傳輸，確保更好的網路體驗，尤其是視訊串流或音訊會議。 -
可搭配 ExpertWiFi 系統運作，管理更方便
EBP15 與 ExpertWiFi 系統相容，因此您可以透過管理主路由器* 來控制連接到 EBP15 的裝置，提供更方便的體驗！
Five 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
IEEE 802.1p
IEEE 802.1q
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3at
IEEE 802.3i
IEEE 802.3u
IEEE 802.3x
IPv4
White
60 watts
MAC Address : Up to 8 K
Buffer Memory : 4 Mbits
Switching Capacity : 10Gbps
Packet Forwarding Rate : 7.44Mpps
Jumbo Frame : 15KB
System power ON/OFF
PoE Alert
Link, Speed, activity, and PoE indicators per port built into each RJ-45 port
AC input: 100V~240V (50~60 Hz)
DC output: 54V with 1.25A
Standard: 802.3 af/at compliant
PoE Ports: Port 1 - Port 4
Per Port Max: 30W
Quality of Service
IGMP Snooping
Port Mirroring
Loop Detection/Prevention
Web-based GUI
ExpertWiFi APP (with ExpertWiFi products only)
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -20℃~70℃ (-4℉~158℉)
Operating Humidity: 10%~95%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing
PoE+ Switch
ExpertWiFi AiMesh Mode (with ExpertWiFi router only): centrally control the connected devices via ASUSWRT/ExpertWiFi app
Standalone Mode: IGMP Snooping, VLAN, Loop Detection/Prevention, Port Mirroring, Port-based QoS, 802.1p CoS, Firmware Update, PoE priority setting, PoE status
SSL/TLS

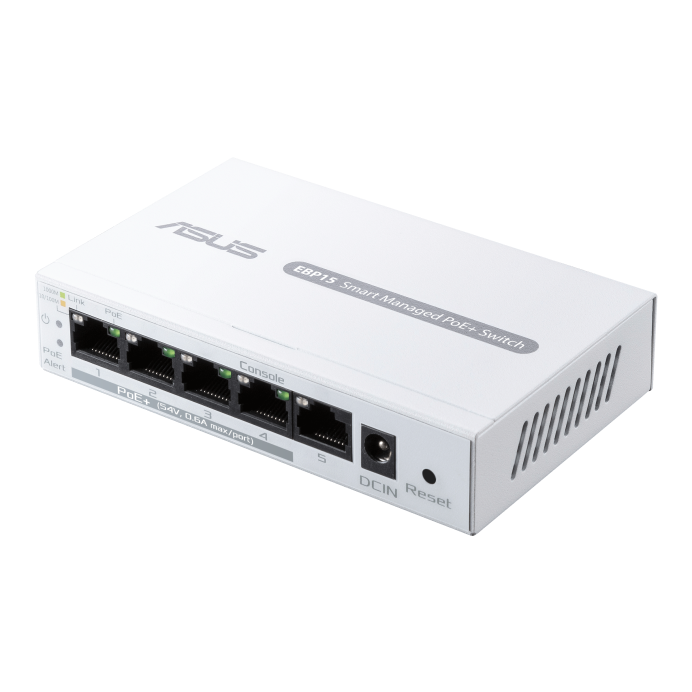

ExpertWiFi EBP15
RJ45 Ethernet Cable
Power Adapter
Quick Start Guide
Warranty Card
248g
121 x 75 x 26mm
