PREMIUM WOOD

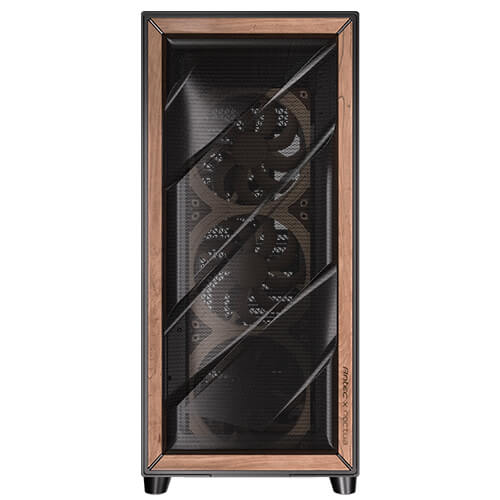

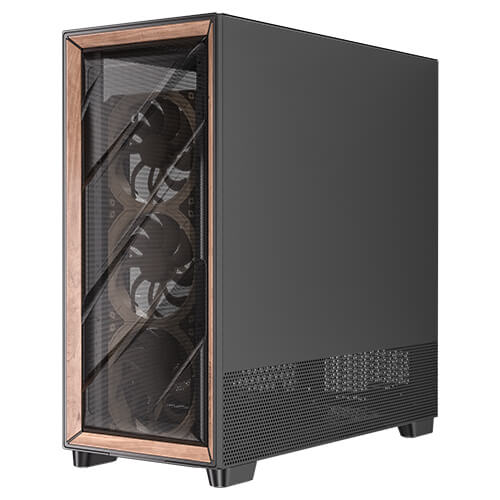

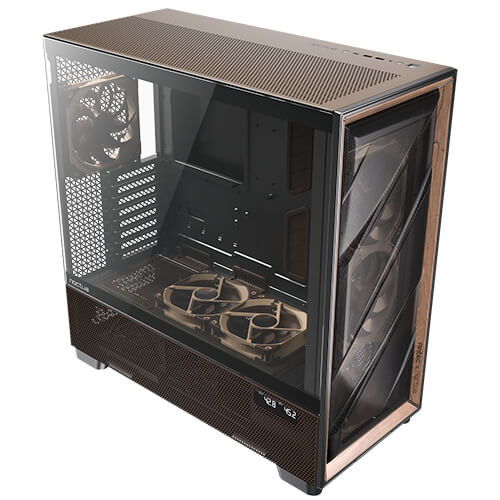

Front panel is crafted with a combination of metal mesh and wood (walnut) to create a high-qualitytexture with different materials, integrating seamlessly into your home design.
Description
Pre-Installed 6 x Noctua PWM FANs
With built-in NOCTUA NA-FH1 PWM FAN HUB
I/O Panel
Dust plugs included.

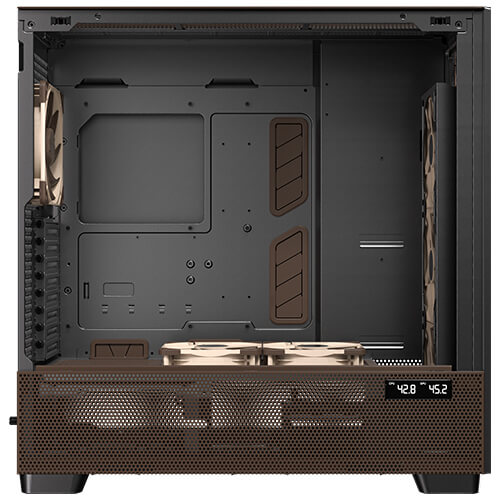

CPU/GPU Dual Temperature Display
Intuitive hardware temperature display design with 4 different modes:
- GPU & CPU On
- GPU & CPU Off
- Only CPU On
- Only GPU On
ANTEC IUNITY
The Antec iUnity provides instant data on PC specs, loads, and usage.
Flow Luxury
F-LUX Platform, abbreviation of Flow Luxury, features advanced case structure design for excellent airflow and 6 fans included, delivering enhanced GPU cooling performance.
FLUX Platform Patent Number: 11259440

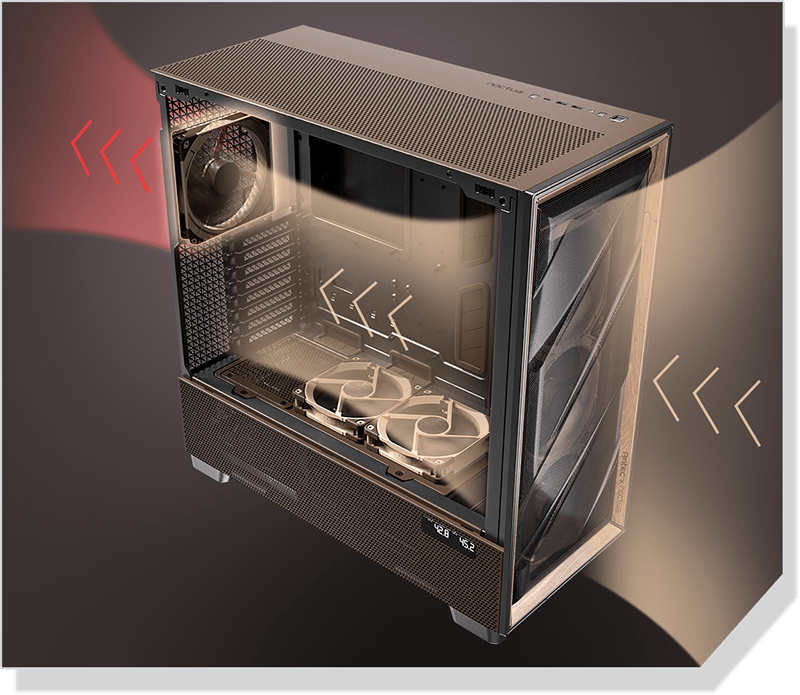

Flux Airflow
Multi-directional vent design, featuring extensive air intakes at the bottom, power supply chamber and lower sides, along with top vents and large-area mesh at the front, creating a dedicated Antec Flux airflow channel.
Flux Vertical Cooling
Air intake via the PSU chamber maximizes heat dissipation while enhancing the intake effect for the graphics card.
Flux Horizontal Cooling
Air intake via the front mesh provides smooth venting channel throughout the case.
Multi-Directional Vent Design
Bottom full-size pull-out dust filter
For easy cleaning and strong dust prevention.
Removable Cooling Bracket on Top of PSU Shroud
When fans (2 available) are installed on the case bottom, remove the top shroud bracket to maximize the airflow, fulfilling the optimal vertical cooling scheme.
Removable Cooling Bracket on Top of PSU Shroud
Remove all three PSU shroud covers to install 3 x 120mm fans or a 360mm push-pull radiator.
Removable Front Cooling Bracket
- Vertically adjustable to 5 positions to fit a large radiator at the top.
- Full cut-out design for enhanced air intake.
- Can install fans or radiators.
Recommended Water Cooling Configuration
Fan & Radiator Support
Innovative iShift PSU 90° Mount
In addition to the standard PSU mount orientation, a 90-degree rotated option powered by the included extension cable is available. Plug in the cable connector from the right side, routing has never been easier.
Support 180mm long PSU.
Reorienting the power supply enlarges the air intake at the bottom.
PSU Installation
Left side of PSU chamber is detachable, making it easy to install the power supply.
PSU Side Mount Guide
Compatible with various power interface layouts:
Tool-Free Panel Design
Removable Top
Cooling Bracket
Cooling Bracket
Mount the fans/radiators on the cooling bracket first and install the cooling bracket back to the case.
Modular Hard
Drive Cage
Drive Cage
Support Vertical GPU
Mount With Vertical Bracket
Mount With Vertical Bracket

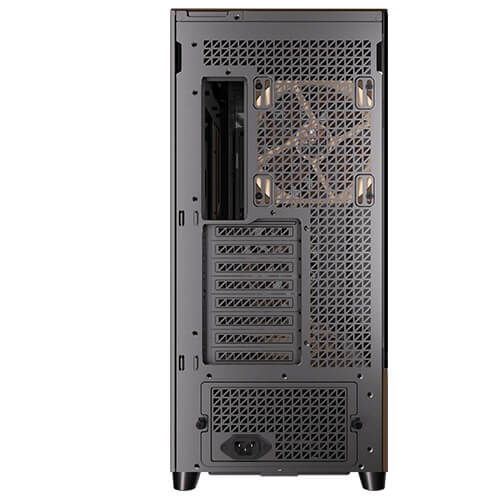

Fully-open PCI slot covers can be removed to install the graphics card vertically.

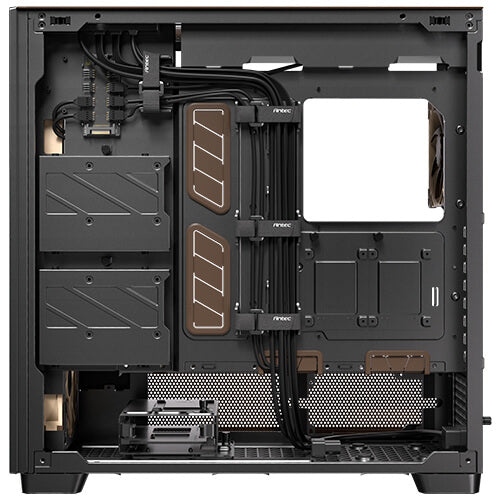

Cable Management
- Cable tie x 3
- Velcro strap X 3
Optimal Cable Routing Experience

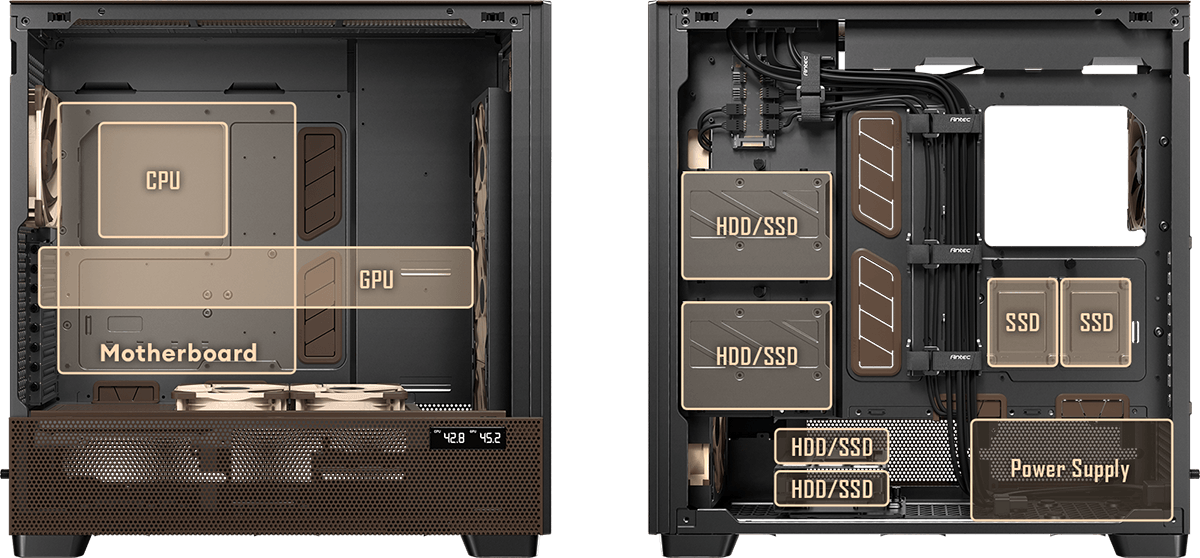

Extensive Interior
-
Motherboard supportE-ATX(≤285mm), ATX, Micro-ATX, ITX
- CPU cooler max height ≤ 190mm
- GPU max length ≤ 455mm
-
-
Power Supply max length(Include cable) ≤ 180/300mm (with HDD)
(Include cable) ≤ 470mm (without HDD)
(Not Include cable) ≤ 180mm (side mount)
-
Power Supply max length(Include cable) ≤ 180/300mm (with HDD)
- 3.5" / 2.5" 4 / 4
- 2.5" 2
