Specifications :
| Model | TI1 |
| Processor |
Intel® Core™ Ultra 5 235H, 14 cores / 14 threads, turbo up to 5.0GHz, 18 MB Intel® Smart Cache |
| Graphics | Intel® Arc™ 140T GPU (up to 2.25GHz) |
| AI Performance | Up to 83 TOPS |
| Memory | Onboard 24GB LPDDR5 (6400 MT/s) |
| Storage | 2 x M.2 2280 PCIe 4.0 SSD Slots (max. 8TB) Pre-installed : 512GB PCIe 3.0 / 1TB PCIe 4.0 SSD |
| Expansion | MCIO (Multi Channel I/O) Port (support PCIe 5.0 x8) |
| Ethernet | 2 x 2.5Gb Ethernet RJ-45 Ports (Intel i226-V) |
| Wireless | - Wi-Fi 6E - Bluetooth 5.3 |
| Video Output | HDMI (2.1) x 1 DisplayPort (2.1) x 1 USB 4 Type-C x 1 Triple-screen Display (8K@60Hz) |
| Audio Output | 3.5mm Audio Jack x 1 |

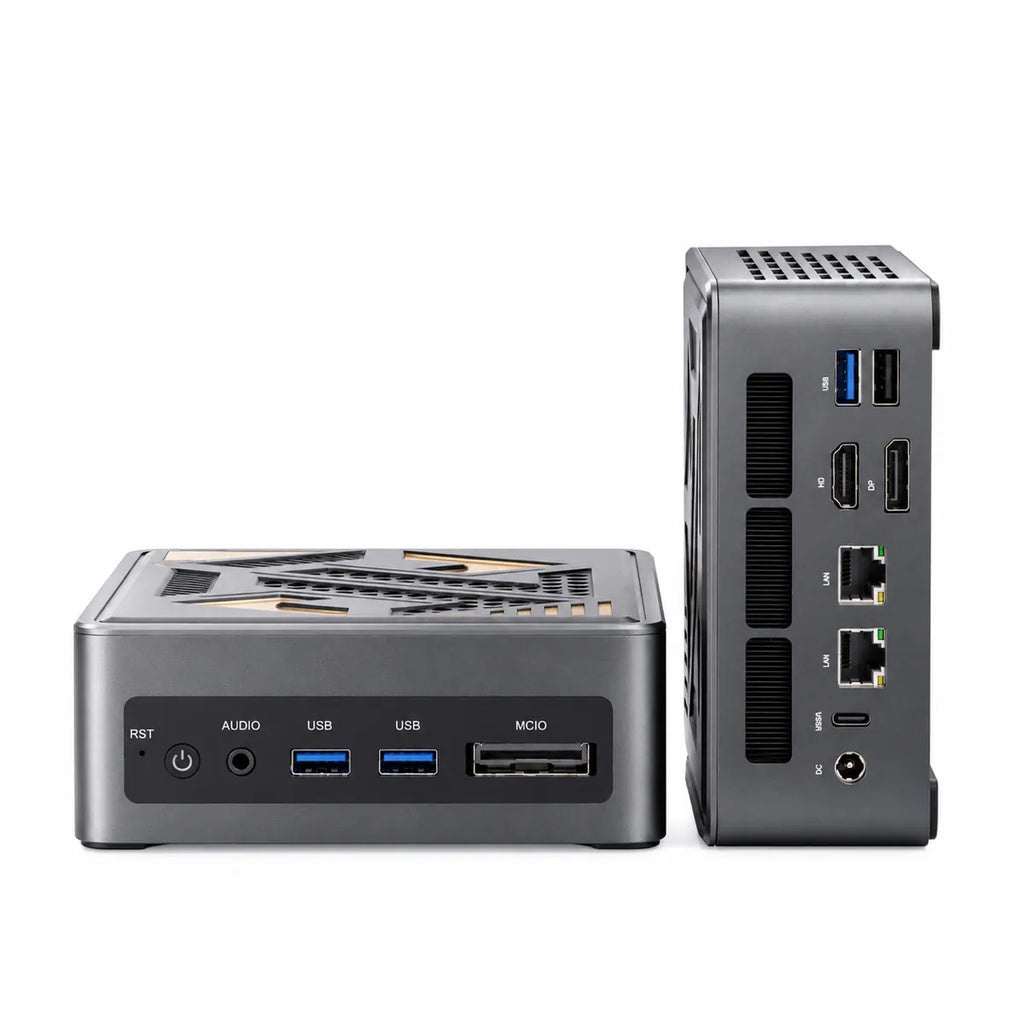

| I/O Ports | HDMI (2.1) x 1 DisplayPort (2.1) x 1 MCIO Port x 1 (128 Gbps) USB 4.0 Type-C x 1 (40 Gbps) USB 3.0 Type-A x 4 (5 Gbps) 2.5Gb Ethernet RJ-45 Port x 2 3.5mm Audio Jack x 1 |
| Cooling System | - Quiet Cooling Fan + VC Vapor Chamber - Top Air Intake, Rear Air Exhaust |
| Power Supply | DC 19V, 6.32A (120W) Power Adapter |
| Operating System | Windows 11 Pro |
| Material | CNC Metal + ABS Plastic |
| Dimensions (W x D x H) | 132 x 132 x 50.5 mm |
