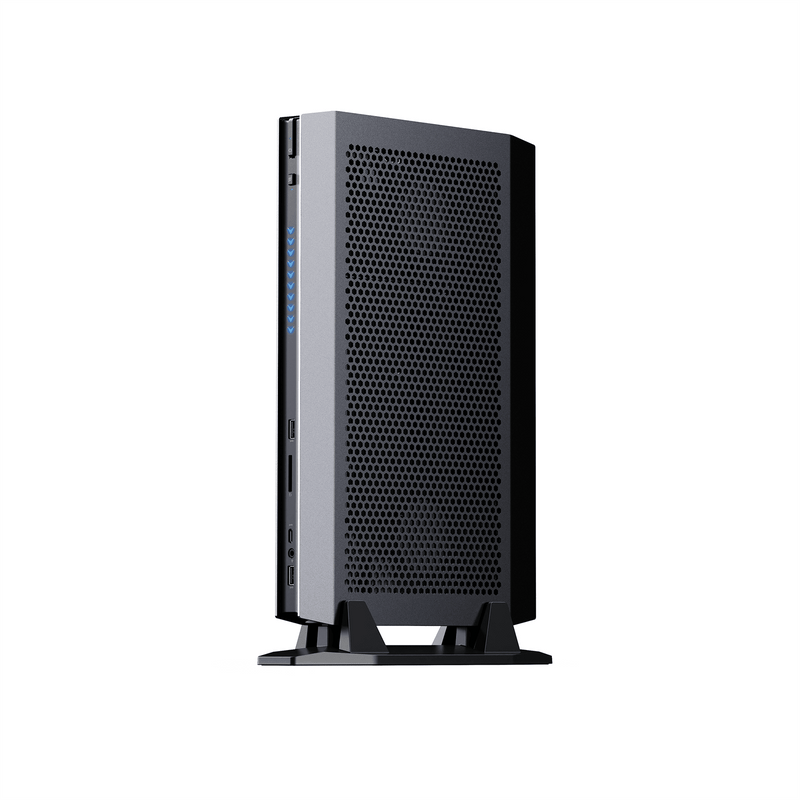

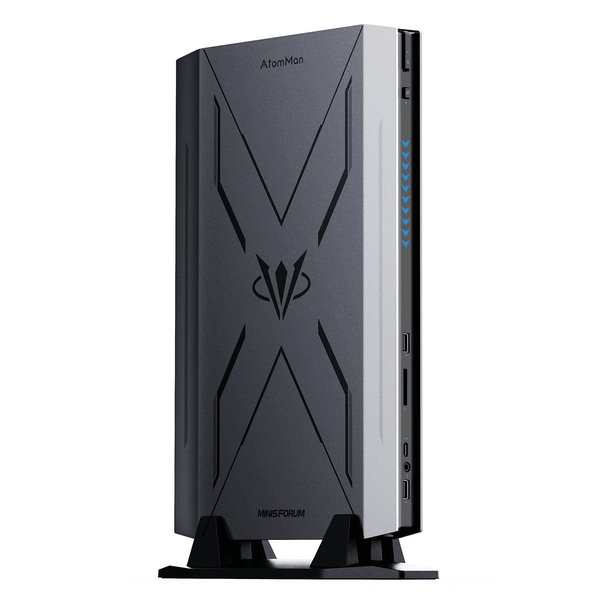

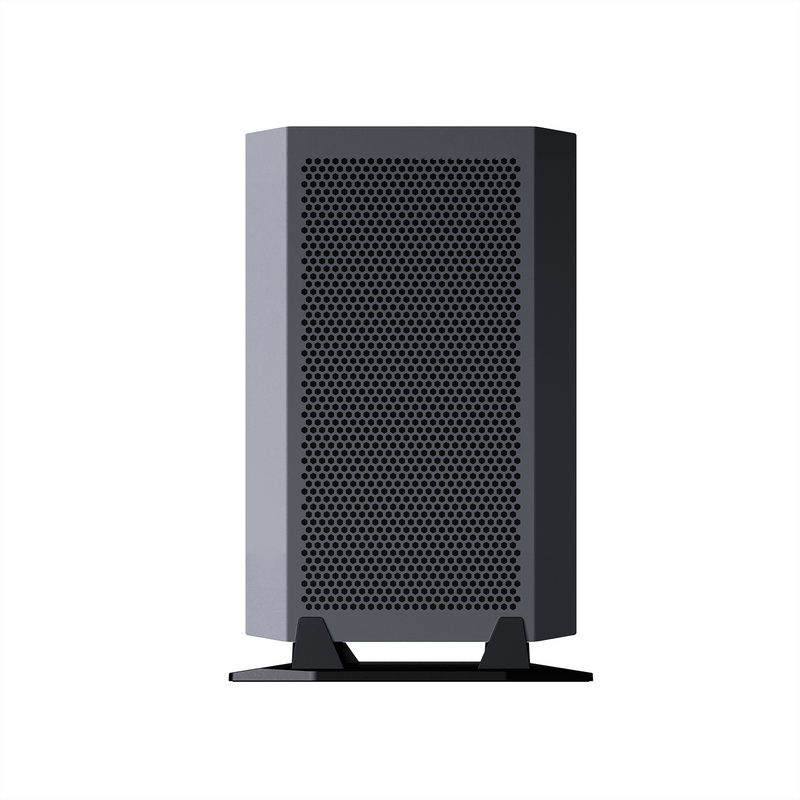

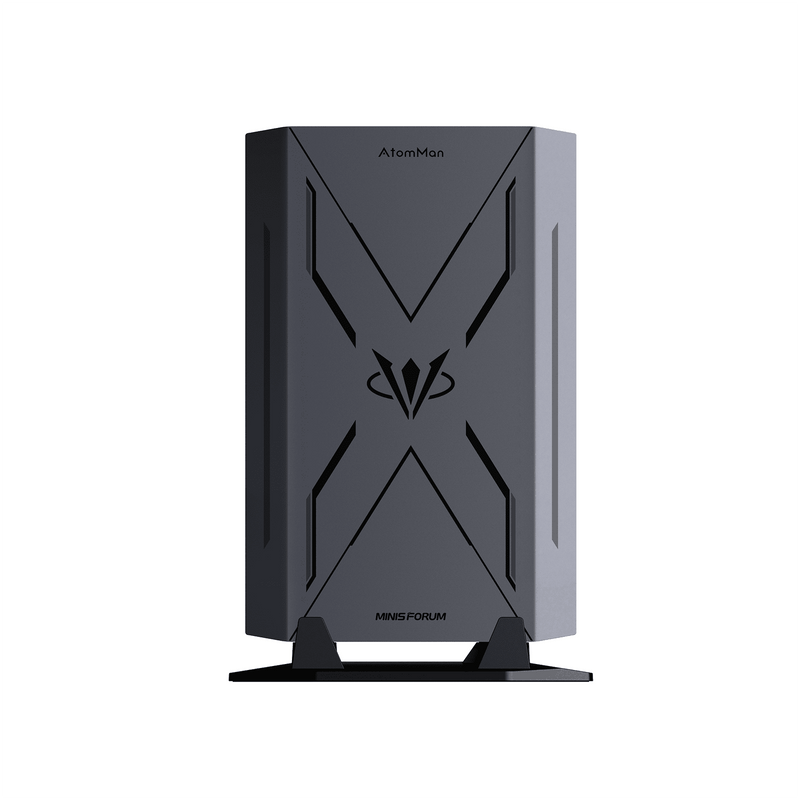

Minisforum AtomMan G7 Pro (32G+1T SYSTEM) Mini PC (Intel Core i9-14900HX / 32GB DDR5 / 1TB SSD / RTX5070 8GB / Windows 11 Pro) CS-MG7PROA

• Intel® Core™ i9 processor 14900HX
• 24 Cores(8 P-cores+16 E-cores) / 32 Threads
• P-core Base Frequency: 2.2 GHz
• Max Turbo Frequency: 5.8 GHz
• TDP (Gaming mode): Up to 120W CPU Only / Up to 85W CPU, 115W GPU
• TDP (Work Mode): Up to 90W CPU Only / Up to 55W CPU, 95W GPU

NVIDIA GeForce RTX 5070 Laptop

Up to 798 TOPS (GPU TOPS)

• DDR5 (SO-DIMM ×2)
• Max Speed Support: 5600
• Max Capacity Support: 96GB

• 1× M.2 2280 NVME SSD Slot (Up to 4TB, PCIe5.0 x4)
• 1× M.2 2280 NVME SSD Slot (Up to 4TB, PCIe4.0 x4)

• CPU Cooling Type: Six-Heatpipe with PCM and Dual Turbo Fans
• CPU&GPU Fan Type: 2× 8015mm turbo fan
• MAX Speed (CPU Fan): 4050 RPM
• Noise (Gaming Mode): 26dBA (idle), 32.8dBA (100% load), (50cm), (Minisforum test environment)
• Noise (Work Mode): 26dBA (idle),44.5dBA (100% load), (50cm), (Minisforum test environment)

• M.2 2230 E-Key
• Wi-Fi 7 (Module: Intel BE200)
• Bluetooth® 5.4

• LAN (RJ45)
• Module: Realtek RTL8125

• HDMI 2.1 FRL ×1 (Up to 8K@60Hz/4K@120Hz)
• USB4 ×1 (Up to 8K@60Hz/4K@120Hz)

• HDMI ×1
• 3.5mm Combo Jack ×1

3.5mm Combo Jack ×1

• 1× USB 3.2 Gen1 (5Gbps)
• 1× SD card reader (SD4.0 UHS-II)
• 1× USB-C 3.2 Gen1 (5Gbps, Data Only)
• 1× 3.5mm Combo Jack
• 1× USB 3.2 Gen1 (5Gbps)
• 1× DC-IN
• 1× USB4 (40 Gbps, PD out Max.15W)
• 1× HDMI 2.1 FRL
• 1× USB 3.2 Gen2 (10Gbps)
• 1× 2.5 GbE LAN port (RJ45, Realtek RTL8125)

• Power Button ×1
• Mode toggle Button ×1

DC-IN (20V/14A, 55*25mm, Max 280W)

Windows 11 Pro

• 385 × 237 × 33mm (No bottom)
• 398 × 260 × 80mm (Includes bottom)

2.62kg (Includes bottom)
