描述
| CPU | Intel® Core™ Ultra 7 256V (Series 2) 8 Cores / 8 Threads, TSMC N3B Process Base Frequency: 2.2GHz Max Turbo: P-core up to 4.8GHz / E-core up to 3.7GHz 12MB Intel® Smart Cache Peak AI Performance: 115 TOPS (INT8) Power Modes: Silent 15W / Balanced 20W / Performance 30W (Peak 37W) Dual Copper Heat Pipes + Single Fan Cooling |
|---|---|
| CPU Socket | FCBGA2833 (27.5mm × 27mm) |
| GPU | Intel® Arc™ 140V GPU Base Frequency: 400MHz Max Dynamic Frequency: 1.95GHz GPU AI Performance: 64 TOPS (INT8) |
| NPU | Intel® AI Boost NPU, up to 47 TOPS (INT8) |
| Memory | 16GB LPDDR5 up to 8533 MT/s |
| Storage | PCIe 4.0 M.2 2280 SSD 1TB |
| Internal Expansion | Dual M.2 2280 NVMe SSD Slots • 1× PCIe Gen4 ×4 NVMe • 1× PCIe Gen4 ×2 NVMe Max Capacity: 8TB ×2 (16TB Total) SATA SSD Not Supported |
| Video Output | HDMI 2.1 TMDS + 2× USB4 Supports up to 4K Display Output |
| Network | Wi-Fi 6E (802.11 a/b/g/n/ac/ax, RZ616, up to 2.4Gbps) Bluetooth 5.2 1× 5G RJ45 Ethernet (RTL8126) |
| Power | DC IN 20V ⎓ 5A (100W) Built-in CMOS Battery |
| Front I/O | • 2× USB 3.2 Gen2 (10Gbps) • 1× 3.5mm Audio Jack (CTIA) • Power Button with White LED Indicator |

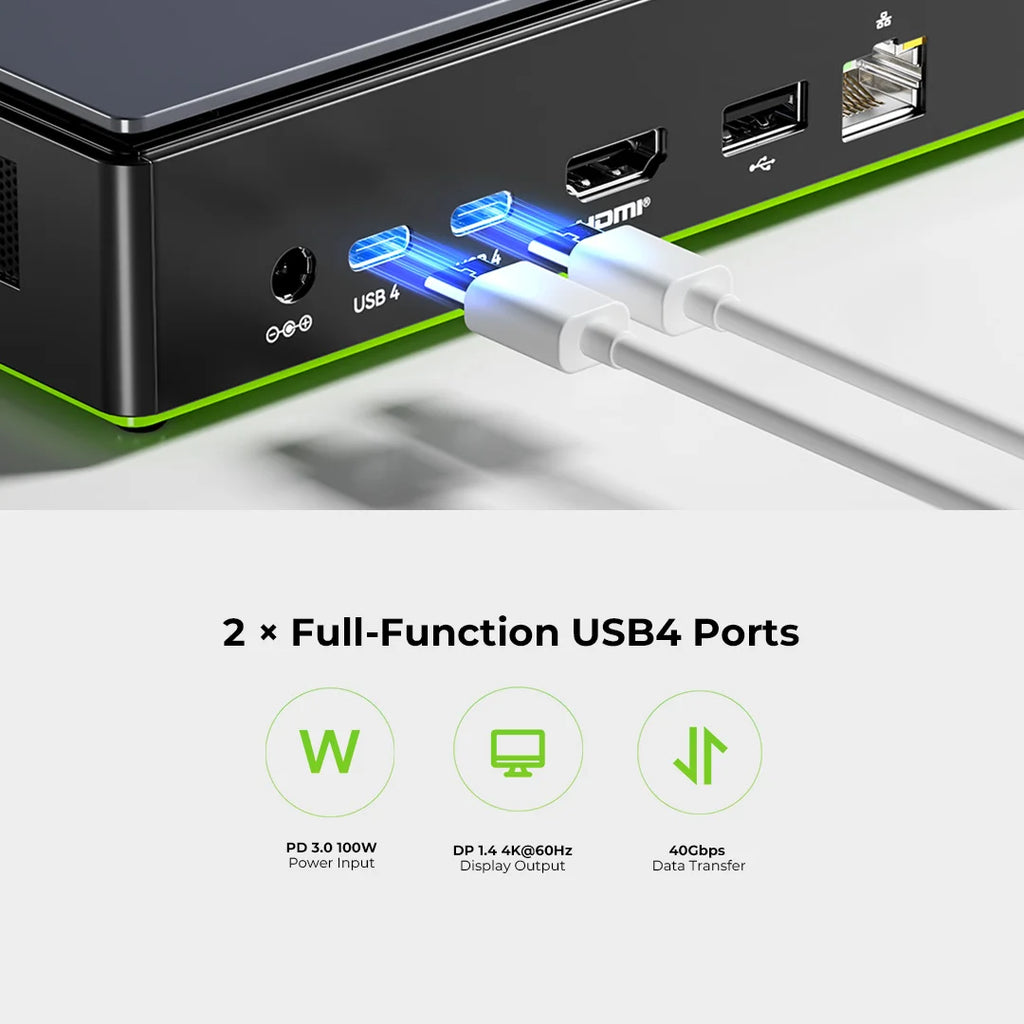

| Rear I/O | • 2× USB4 (40Gbps / PD 100W Input / DP 1.4 4K@60Hz) • 1× USB 2.0 (480Mbps) • 1× HDMI 2.1 TMDS (4K@60Hz) • 1× 5G RJ45 LAN • 1× DC IN 5525 • 1× Security Lock Slot • Reset Button (Clear CMOS) |
| OS | Windows 11 Pro pre-installed; supports Linux and Ubuntu |
| Dimensions | 186 × 88 × 36.6 mm |
| Weight | Approx. 523g (Device), 1.45kg (Package) |
| Package Contents | Power Adapter, HDMI Cable, User Manual, Warranty Card, VESA Mount |
