描述
![]() |
BIGGER SCREEN IN A SMALLER FOOTPRINTWith this monitor, experience a 22% larger viewable screen in a chassis only 7% larger than the VA2246mh-LED that it replaces. Enjoy more screen and more content within a smaller footprint. |
FRAMELESS DESIGNThis monitor features a frameless edge-to-edge screen that delivers an immersive viewing experience and easy configuration of multi-screen setups. With a sleek, eye-catching design that stands out in any setting, this monitor looks as good as it performs. |
|
![]() |
HDMI CABLE IN EVERY BOXFor quick and easy setup, an HDMI cable is included in the box with this monitor. HDMI is a future-proof video standard that delivers true digital picture and audio clarity. The HDMI interface on this monitor allows you to connect to a variety of HD devices including gaming consoles, Blu-ray players, laptop PCs, digital cameras, and many others for the ultimate true high-definition experience. |
INCREDIBLE SCREEN PERFORMANCEThis monitor features Full HD 1920x1080 resolution for unbelievable pixel-by-pixel image performance. With SuperClear MVA technology and a true 8 bit panel, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side. Enjoy vivid colors, amazing clarity and detail, and consistent levels of brightness, no matter the vantage point. |
|
![]() |
ADAPTIVE-SYNCThis monitor is equipped with VESA Adaptive-Sync which seamlessly synchronizes the frame rate output between your graphics card and monitor. This dynamic refresh rate effectively eliminates image tearing, stuttering, and jerkiness for smooth gameplay. *The image contained herein is simulated to reflect an image under different resolution (or scheme) for demonstration purposes only, and may not be the actual image displayed from the product. |
OPTIMIZED VIEW SETTINGSViewSonic’s unique ViewMode feature offers “Game,” “Movie,” “Web,” “Text,” and “Mono” presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized viewing experience for different screen applications. |
ENHANCED VIEWING COMFORTFlicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods. |

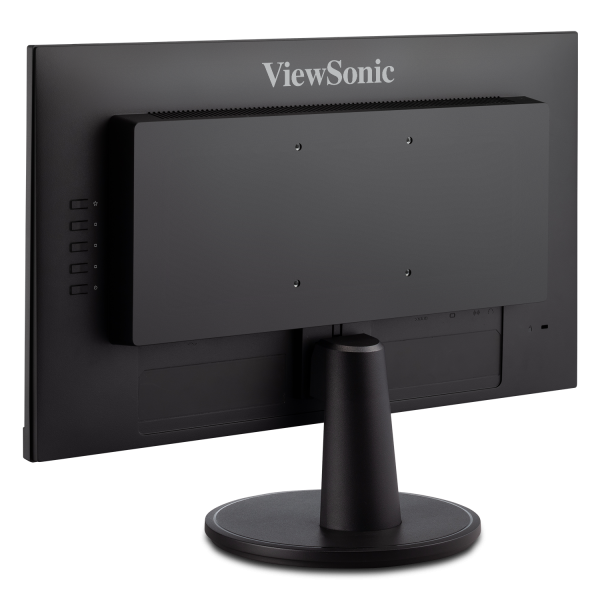

VESA-COMPATIBLE MOUNTMount the monitor as you see fit using its convenient VESA-compatible mount design. |
DUAL INTEGRATED STEREO SPEAKERSDesigned with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience. |
3-YEAR LIMITED WARRANTYHave peace of mind in the quality and reliability of your ViewSonic monitor—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty. |
|
![]() |
![]() |
|
規格
-
顯示規格
顯示尺寸 (mm): 22
可視範圍 (in.): 21.5
面板類型: MVA
解析度: 1920 x 1080
解析度類型: FHD (1920x1080)
靜態對比率: 3,000:1 (typ)
動態對比率: 50M:1
光源: LED
亮度: 250 cd/m² (typ)
Colors: 16.7M
長寬比: 16:9
反應時間 (標準 GTG): 5ms
可視角度: 178º horizontal, 178º vertical
表面塗層: Anti-Glare, Hard Coating (3H) Haze 25%
-
相容性
PC 解析度 (最大值): 1920x1080
Mac® 解析度 (最大值): 1920x1080
-
傳輸介面
VGA: 1
3.5mm Audio In: 1
3.5mm 音源輸出: 1
HDMI 1.4: 1
-
音訊
內建喇叭: 2Watts x2
-
電源
節電模式 (節省): 13W
Eco Mode (optimized): 15W
消耗功率 (典型值): 20W
消耗功率 (最大值): 23W
電壓: AC 100-240V
待機狀態: 0.5W
電源供應: Internal Power Supply
-
附加硬體
Kensington 鎖槽: 1
-
控制項
實體操控: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)
螢幕上顯示: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
-
操作環境
溫度: 32°F to 104°F (0°C to 40°C)
濕度 (非凝結): 20% to 90%
-
壁掛
VESA 相容: 100 x 100 mm
-
輸入訊號
水平頻率: 24 ~ 86KHz
垂直頻率: 48 ~ 75Hz
-
影像輸入
數位同步: TMDS - HDMI (v1.4)
Analog Sync: Separate - RGB Analog
-
人體工學
傾斜 (前/後): -3º / 20º
-
重量 (英制)
淨重 (lbs): 6.4
淨重不含底座 (lbs): 5.7
毛重 (lbs): 8.8
-
重量 (公制)
淨重 (kg): 2.9
淨重不含底座 (kg): 2.6
毛重 (kg): 4
-
外觀尺寸 (寬 x 高 x 深,英制)
外箱 (in.): 21.4 x 15.1 x 5
實體 (in.): 19.4 x 14.6 x 8.1
實體不含底座 (in.): 19.4 x 11.5 x 1.8
-
外觀尺寸 (寬 x 高 x 深,公制)
外箱 (mm): 544 x 384 x 128
實體 (mm): 492 x 372 x 206
實體不含底座 (mm): 492 x 292 x 47
-
一般
安規標準: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NOM, Mexico Energy, CB, RoHS, WEEE
產品內容: VA2247-MH x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, Quick Start Guide x1
回收與處理: Please dispose of in accordance with local, state or federal laws.
