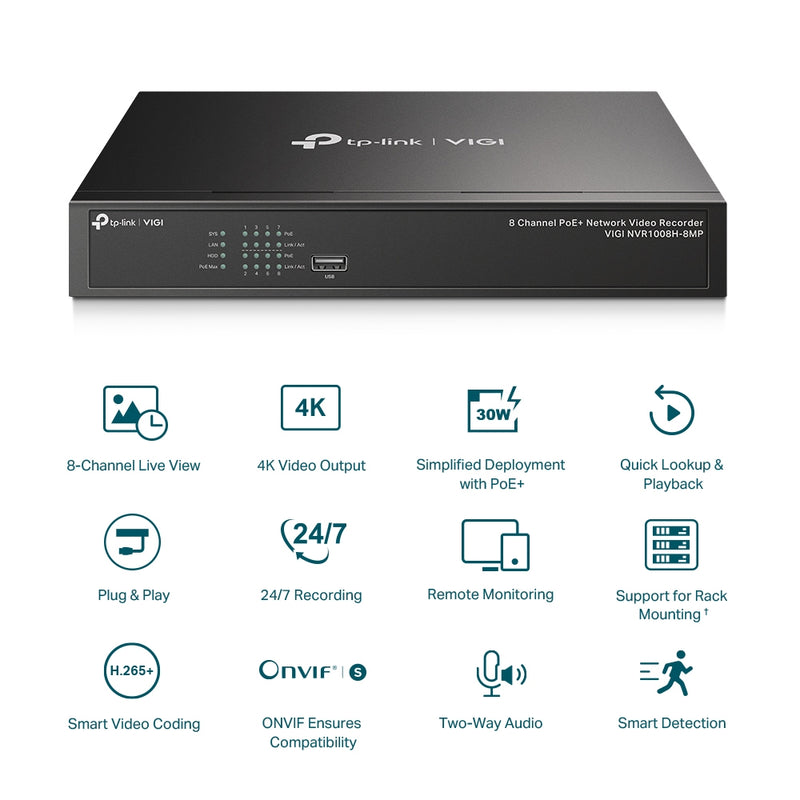

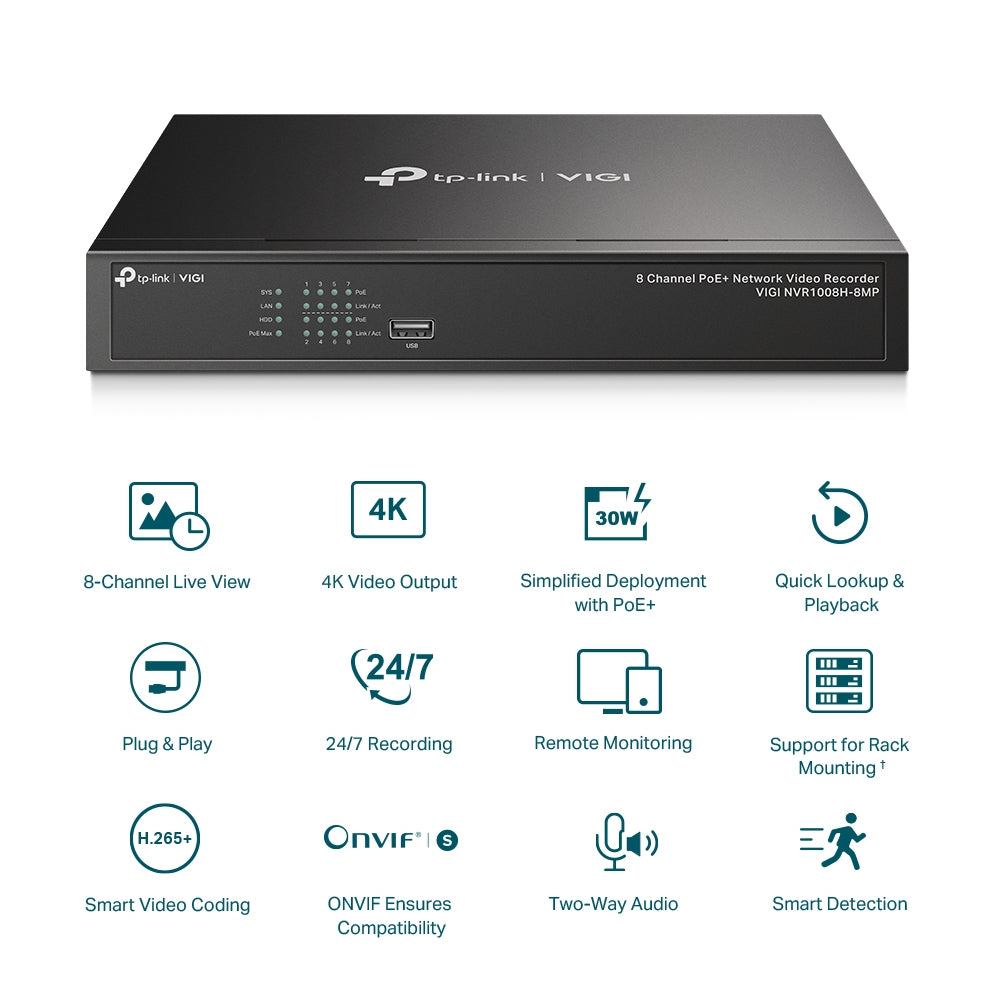

Highlights

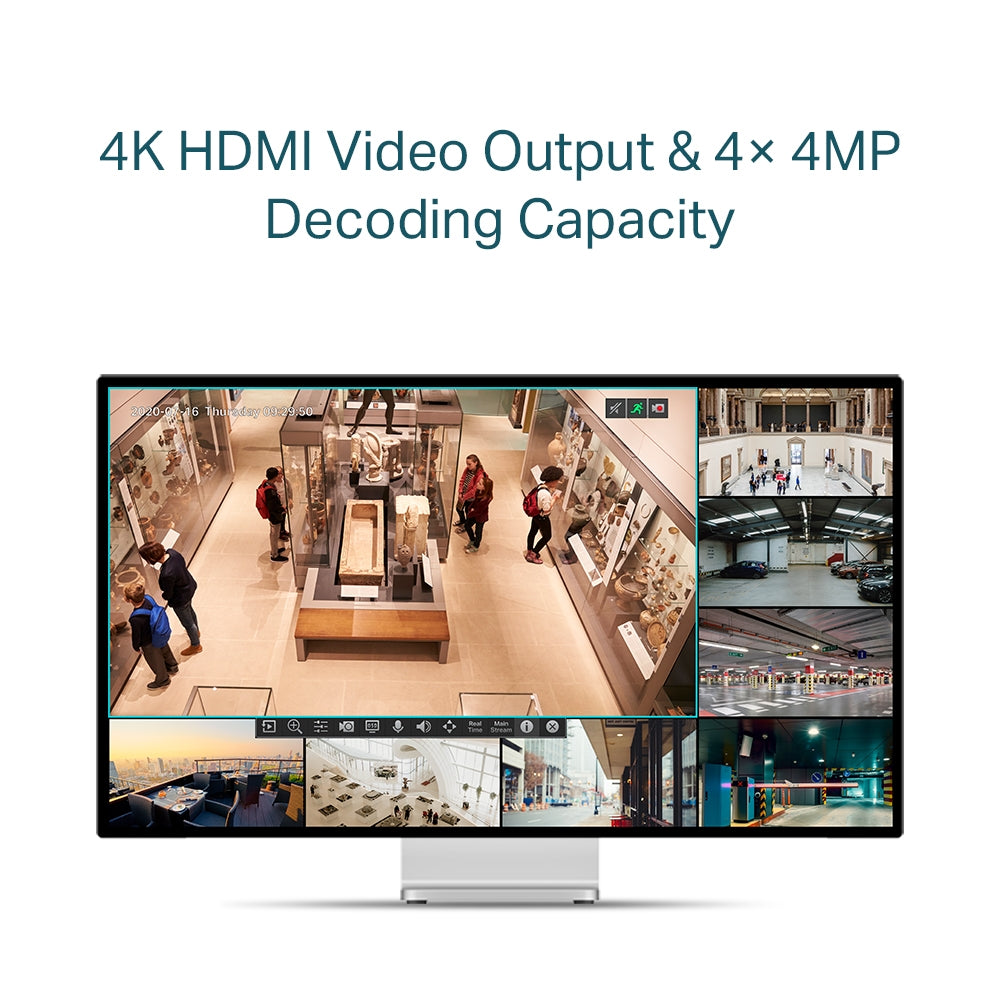

- 4K HDMI Video Output & 16MP Decording Capacity: Sharp image definition up to 8MP and a 8-channel display ensures you capture every detail, from every angle

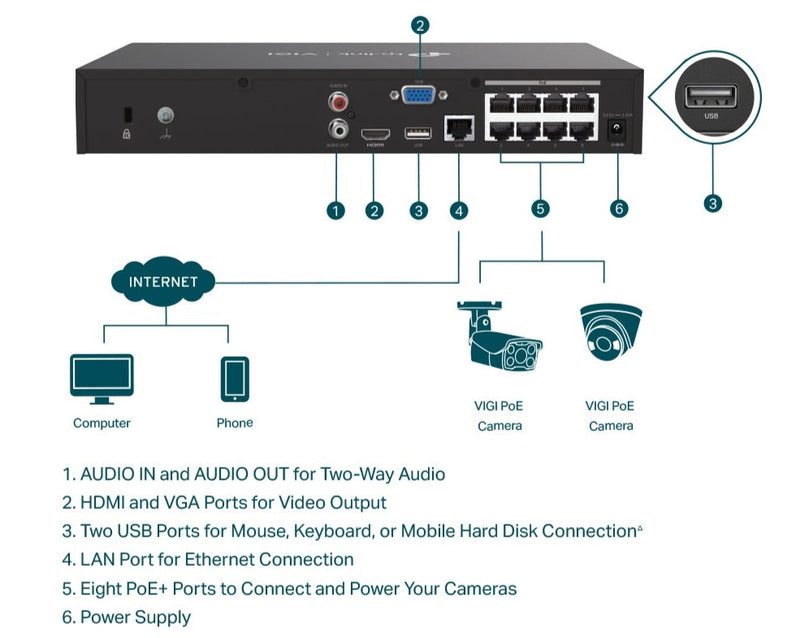

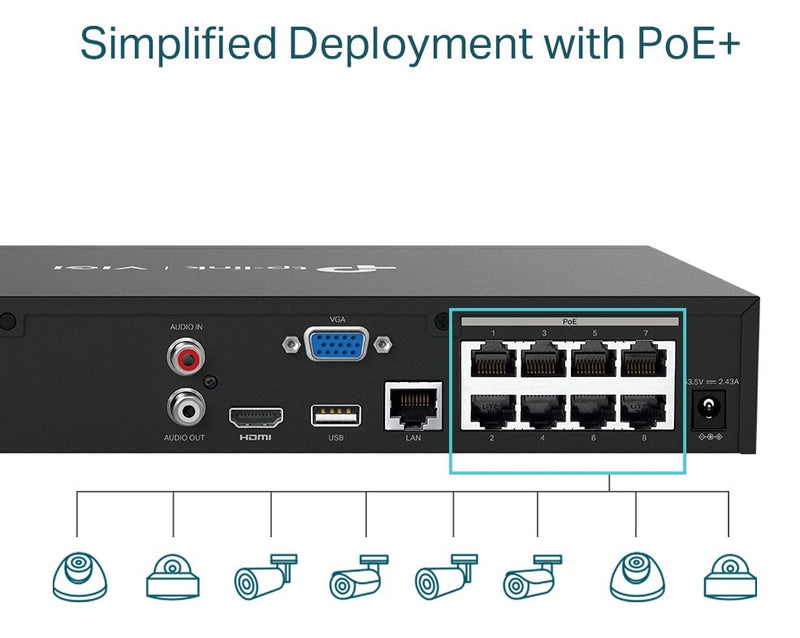

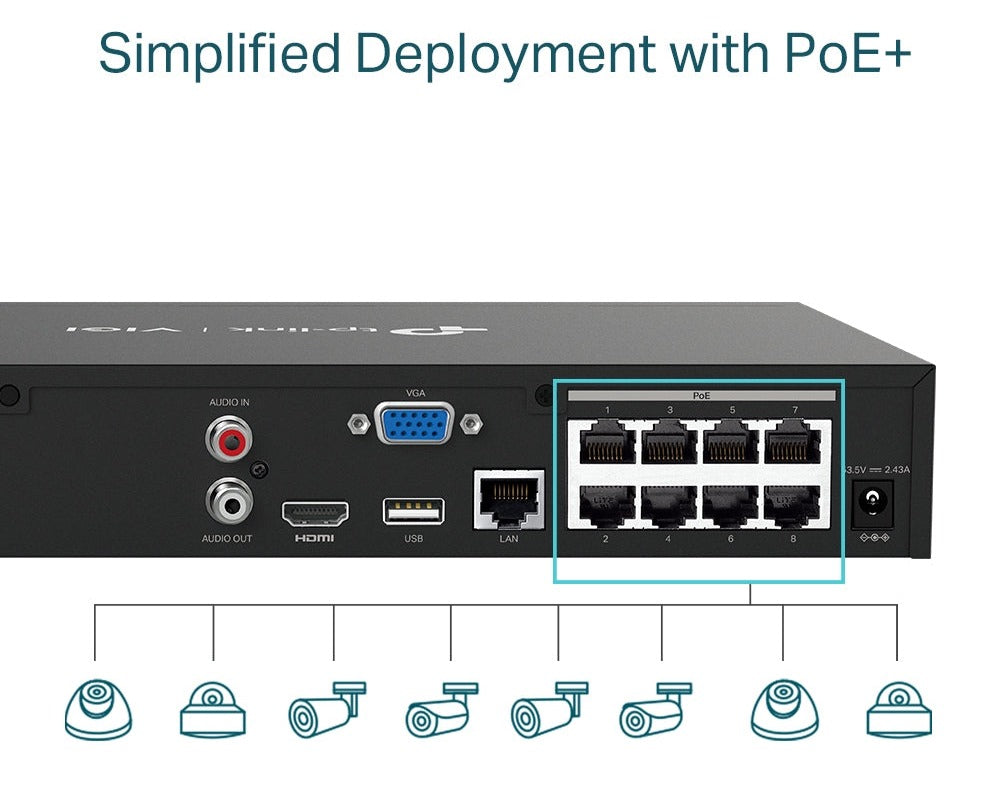

- Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed

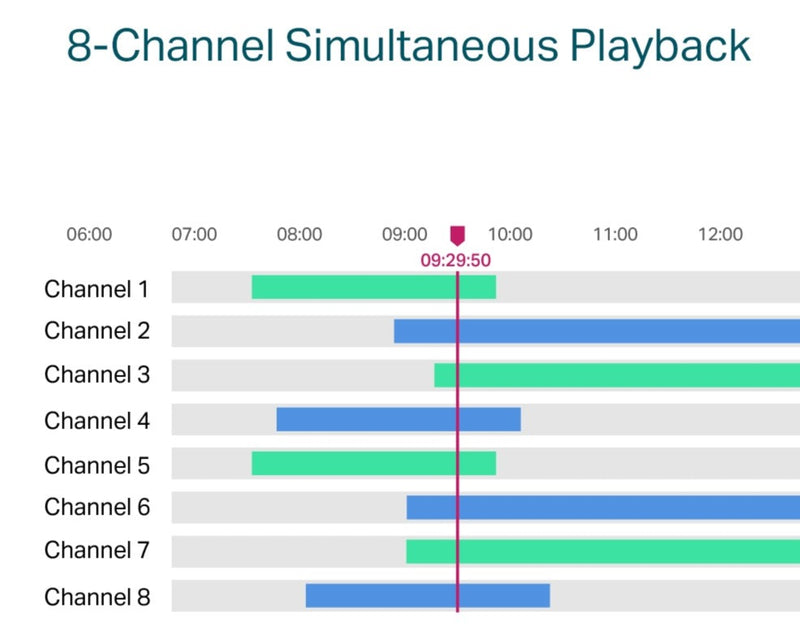

- 8-Channel Simultaneous Playback: Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage

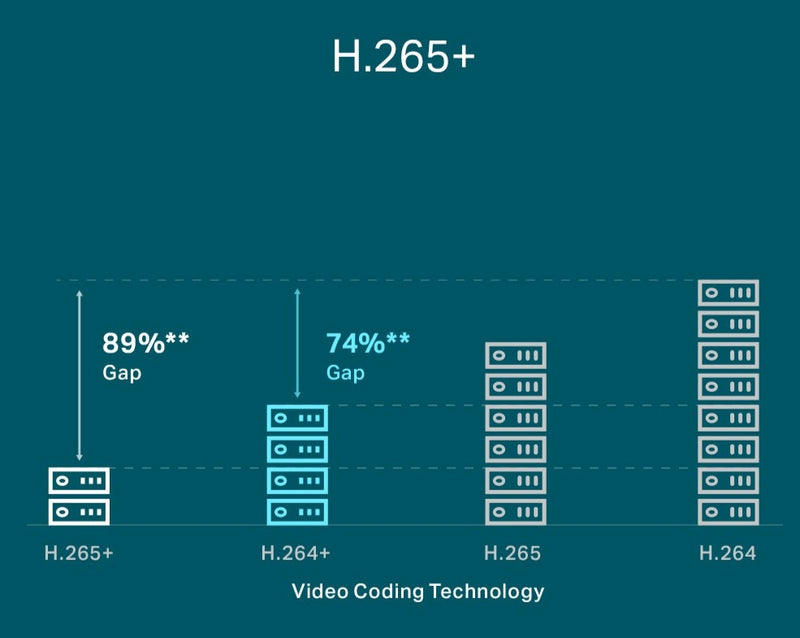

- H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality
- ONVIF Ensures Compatibility: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility
- Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before
- 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access
- Remote Monitoring: The dedicated VIGI app and VIGI Security Manager enable remote monitoring, providing ease and convenience
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management
- Flexible Installation: Choose the suitable installation method by simply housing your NVR on a rack, or placing it on or under a desk for greater convenience
- 2 Years TP-Link Local Manufacturer Warranty
Product Descriptions



Specifications
|
Network |
||
| Protocol | TCP/IP, DHCP, DNS, NTP, UPnP | |
| Incoming Bandwith | 80 Mbps | |
| Outgoing Bandwidth | 60 Mbps | |
|
General |
||
| Package Contents | VIGI Network Video Recorder Power Adapter HDD Screws Mouse Quick Installation Guide |
|
| Operating Temperature | -10–55 °C | |
| External Power Supply | 53.5V DC/2.43 A | |
| Dimensions( H X W X D ) | 294 × 180 × 44 mm | |
| Power Consumption | 4.82 W (without disk) | |
| Video/Image | ||
| Video Input | 8-Channel IP Video Input, up to 8 MP Resolution | |
| Recording Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/ DCIF/2CIF/CIF/QCIF |
|
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz |
|
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz |
|
| DECODING | ||
| Decoding Format | H.265+/H.265/ H.264+/H.264 | |
| Live View/Playback Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/ DCIF/2CIF/CIF/QCIF |
|
| Synchronous Playback | 8 Channel | |
| Capability | 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP | |
| HARD DISK | ||
| SATA | 1 SATA Interface | |
| Capacity | Up to 10 TB | |

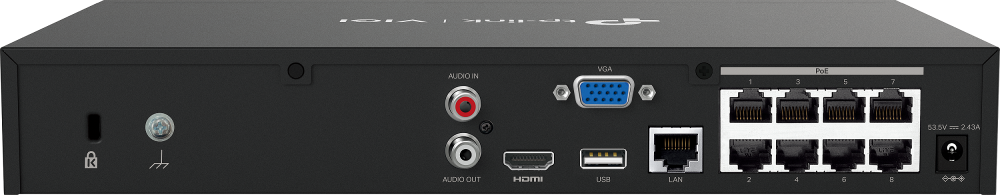

| INTERFACE | ||
| Network Interface | 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface | |
| USB Interface | 2× USB 2.0 | |
