Highlights

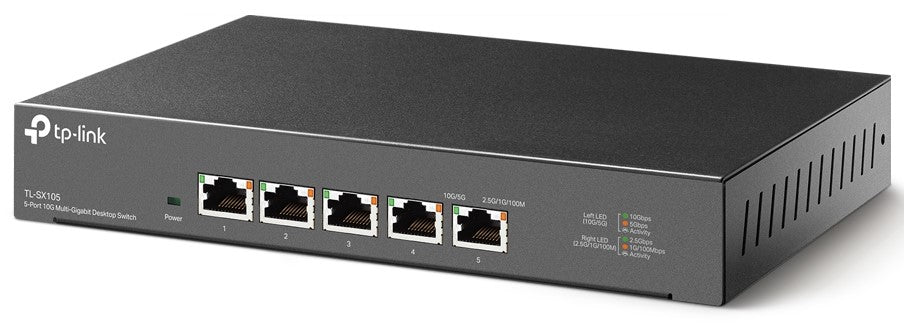

- Five 10 Gbps Ports. 5× 10-Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices, and provide up to 100 Gbps of switching capacity.
- Lightning-Fast Connections. Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/ NIC, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, and more.
- Ideal for Various Scenarios. Built for lightning-fast connections in LAN parties, home entertainment, small and home offices, and workstations.
- Optimal 5-Speed Connections. Auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance.
- Silent Operation. The revolutionary fanless design ensures unprecedented silent operation, ideal for any home or business.
- Durable Metal Casing. Durable metal casing, desktop/wall-mounting, and professional heat dissipation design are well suited for different environments.

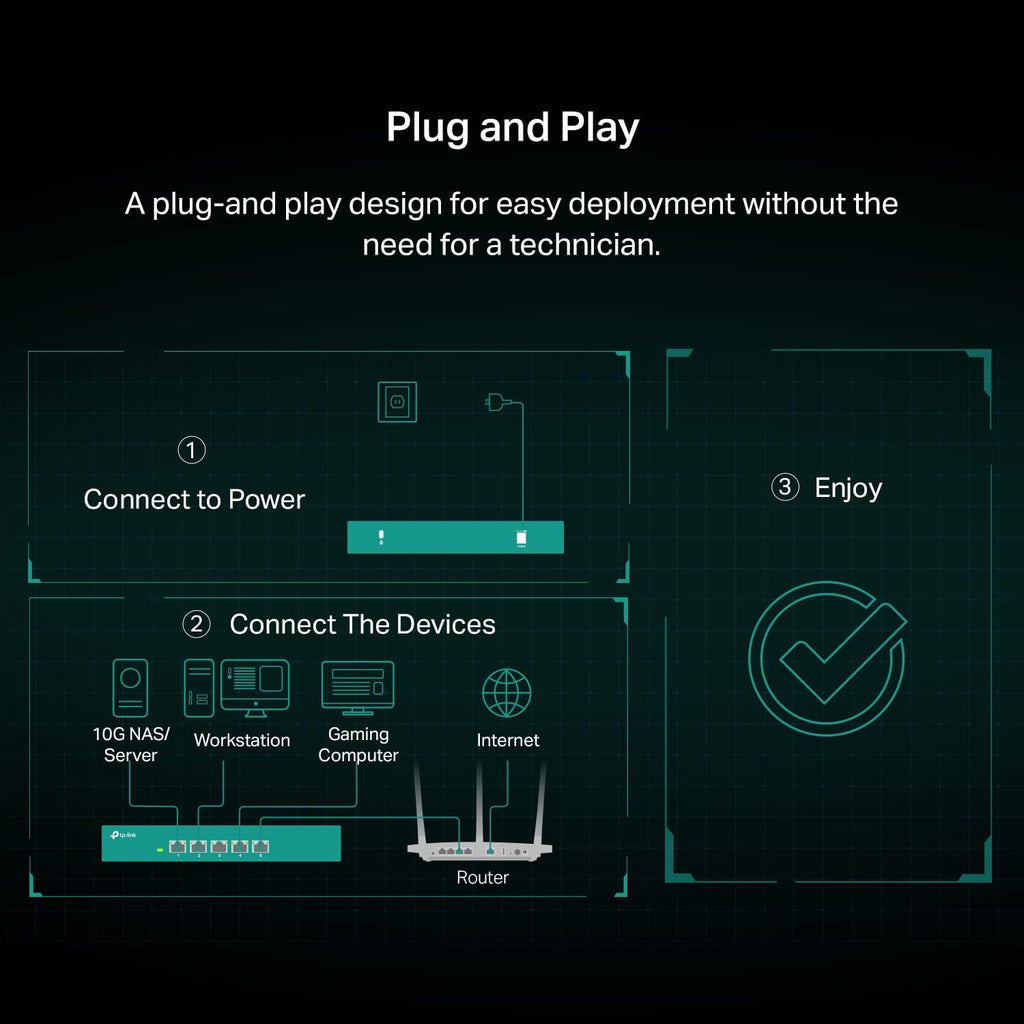

- Plug and Play. Allows for easy deployment without the need for a technician.
- 3 Years TP-Link Local Manufacturer Warranty
Product Descriptions
-
Take Full Control of 10G
10G allows you to fully utilize high bandwidth such as WiFi 6 APs with 10G wired connections
Experience 10G Max Transfer Rate Ultra Smooth LAN Entertainment
Fanless/Metal Design
Our revolutionary fanless design ensures whisper quiet operation. Durable metal casing provides maximum heat dissipation for versatility.
Flexible Deployment
Whether on a desktop or mounted on the wall, you have the flexibility to place the 10G switch where you need.
Specifications
| Hardware Features | |
| Standards and Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz |
| Interface | 5× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 12 VDC / 2.0 A) |
| LED Indicator | • System Power: 1 |
| • Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port | |
| Dimensions ( W x D x H ) | 8.9×5.2×1.4 in (226×131×35 mm) |
| Max Power Consumption | 21.4 W |
| Performance | |
| Switching Capacity | 100 Gbps |
| Packet Forwarding Rate | 74.4 Mpps |
| MAC Address Table | 32 K |
| Packet Buffer Memory | 2 Mb |
| Jumbo Frame | 10 KB |
| Software Features | |
| Advanced Features | • 802.3X Flow Control |
| • 802.1p/DSCP QoS | |
| Transfer Method | Store and Forward |
| Others | |
| Certification | CE, FCC ,RoHS |
| Package Contents | • 5-Port 10G Multi-Gigabit Desktop/Rackmount Switch TL-SX105 |
| • Power Cord | |
| • Installation Guide | |
| • Rubber Feet | |
| Environment | • Operating Temperature: 0–40 °C (32–104 °F) |
| • Storage Temperature: -40–70 °C (-40–158 °F) | |
| • Operating Humidity: 10–90% RH non-condensing | |
| • Storage Humidity: 5–90% RH non-condensing | |
