Highlights

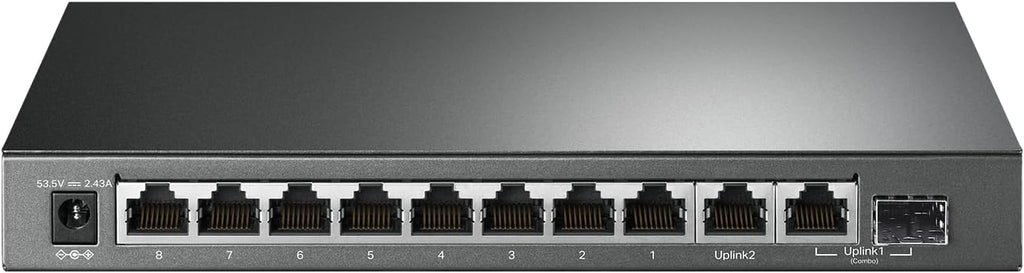

- 9× gigabit RJ45 ports, and 1× gigabit combo SFP/RJ45 Port
- 8× PoE+ ports transfer data and power via a single cable with a total power budget of 123 W*
- Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
- Up to 250 m data and power transmission range under Extend Mode**

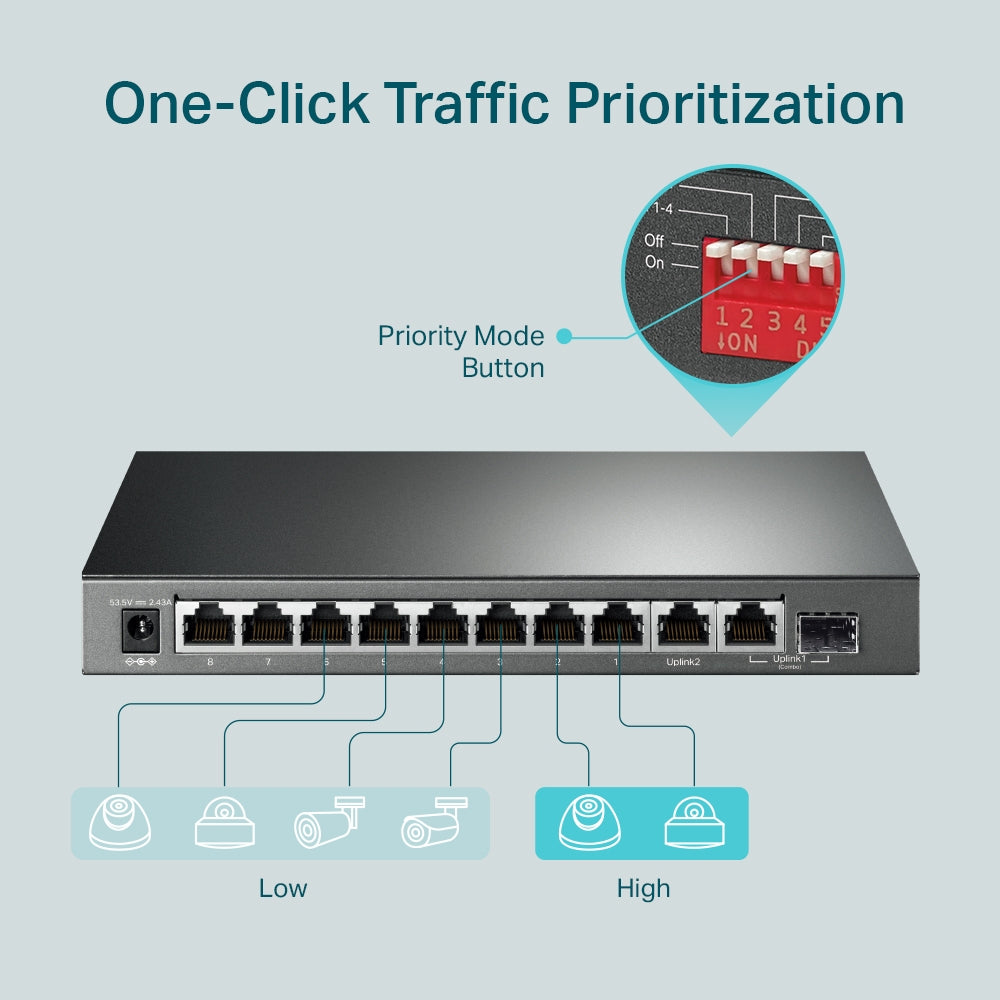

- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications

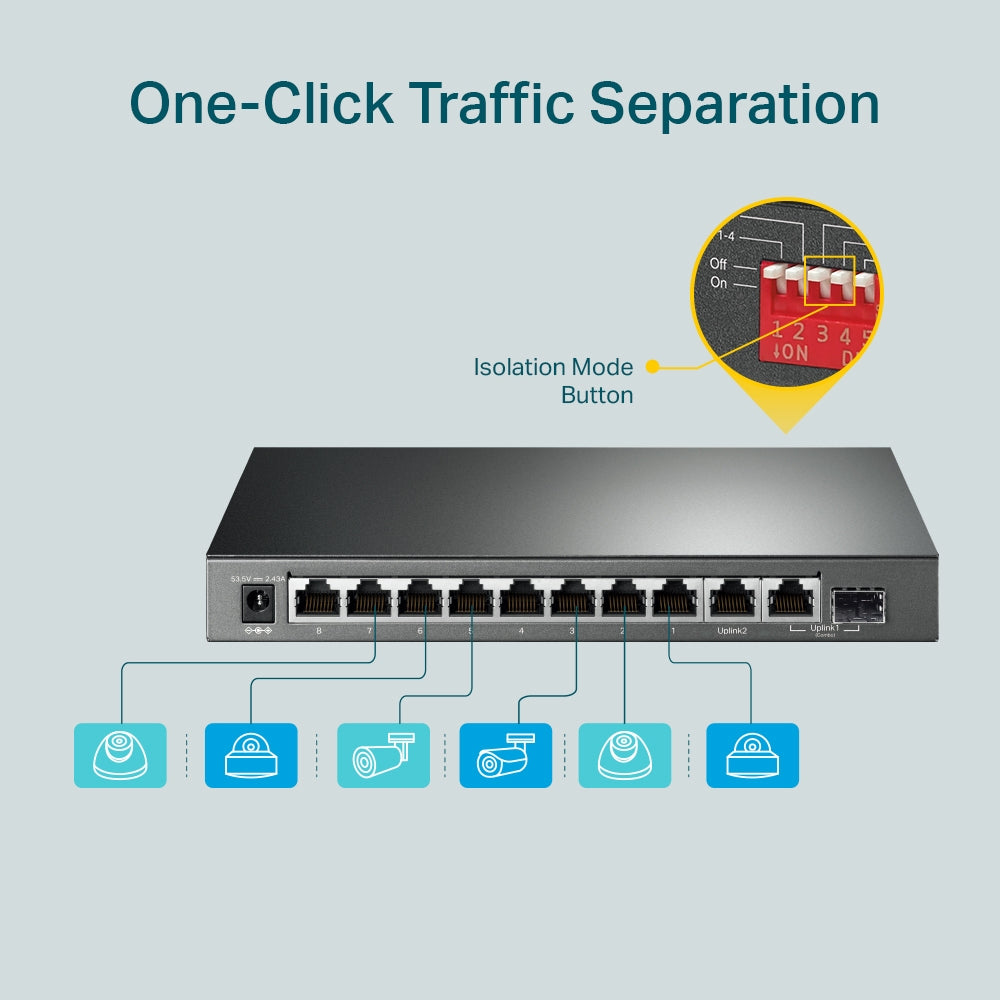

- Isolation Mode allows one-click client traffic separation for higher security and performance

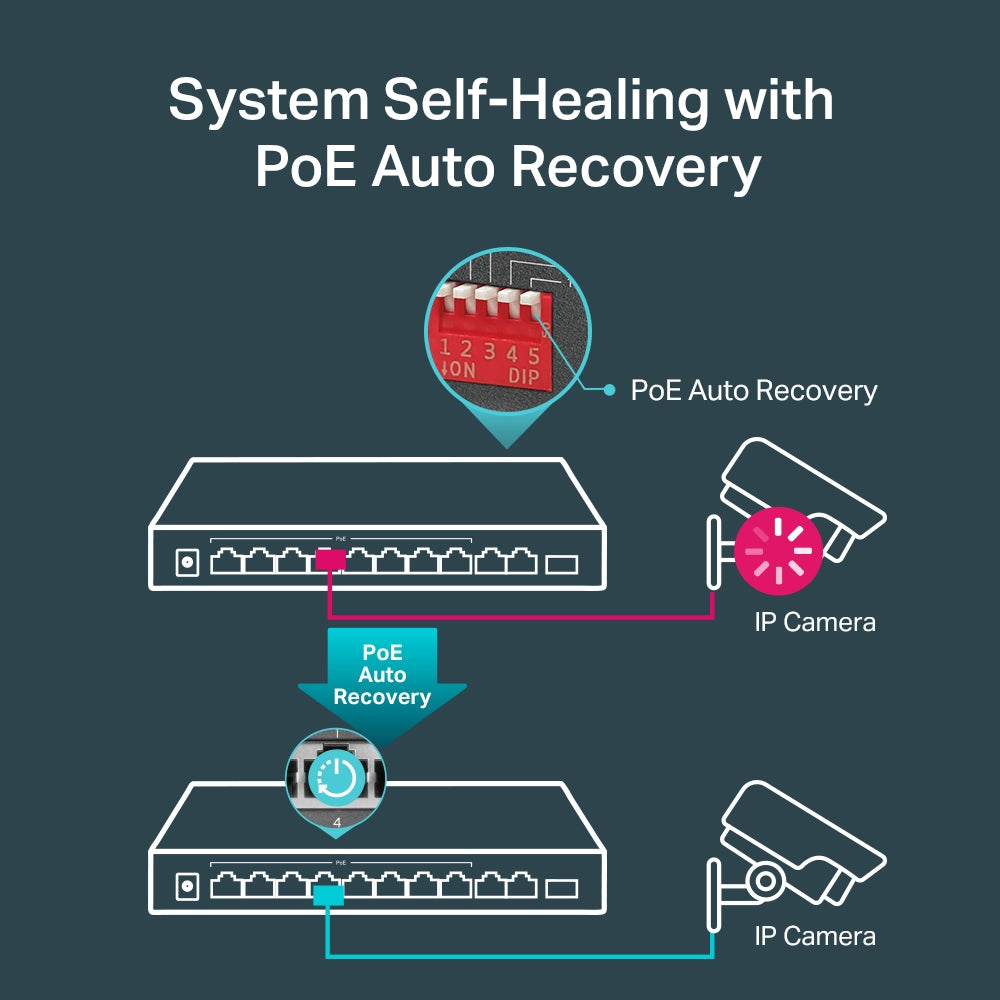

- Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery.

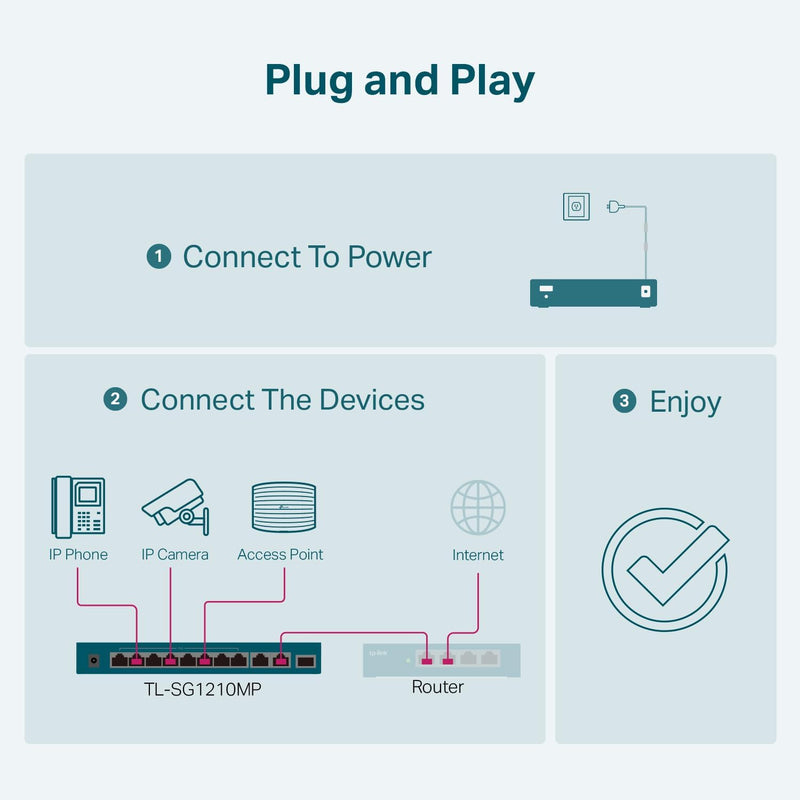

- Plug and play with no configuration required
- Fanless design reduces power consumption and works silently in its location
Product Descriptions

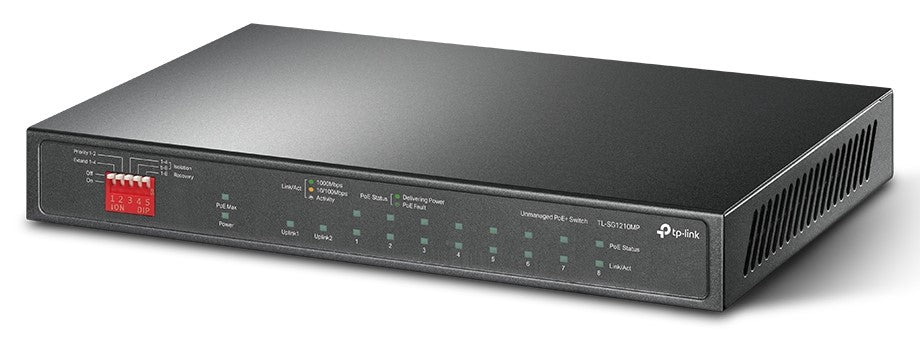

Dedicated 8 PoE+ Switch (123W Budget)
Compliance with 802.3af/at standard supports up to 30W on each PoE port with a total power budget of 123W. This versatile switch provides powered connectivity where a dedicated power supply is not accessible by utilizing PoE.

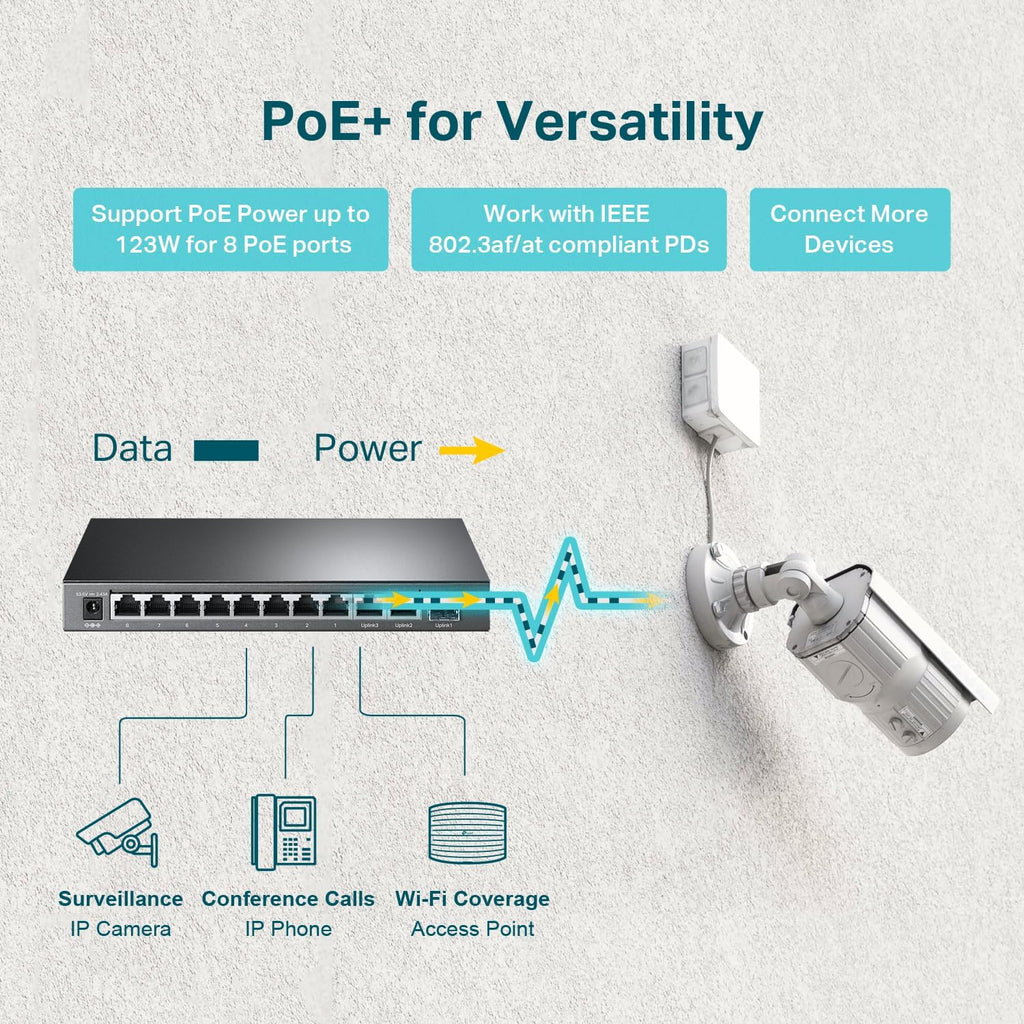

Multiple Application Scenarios
Surveillance
Works with IP Cameras.
Conference Call
Works with IP Phones.

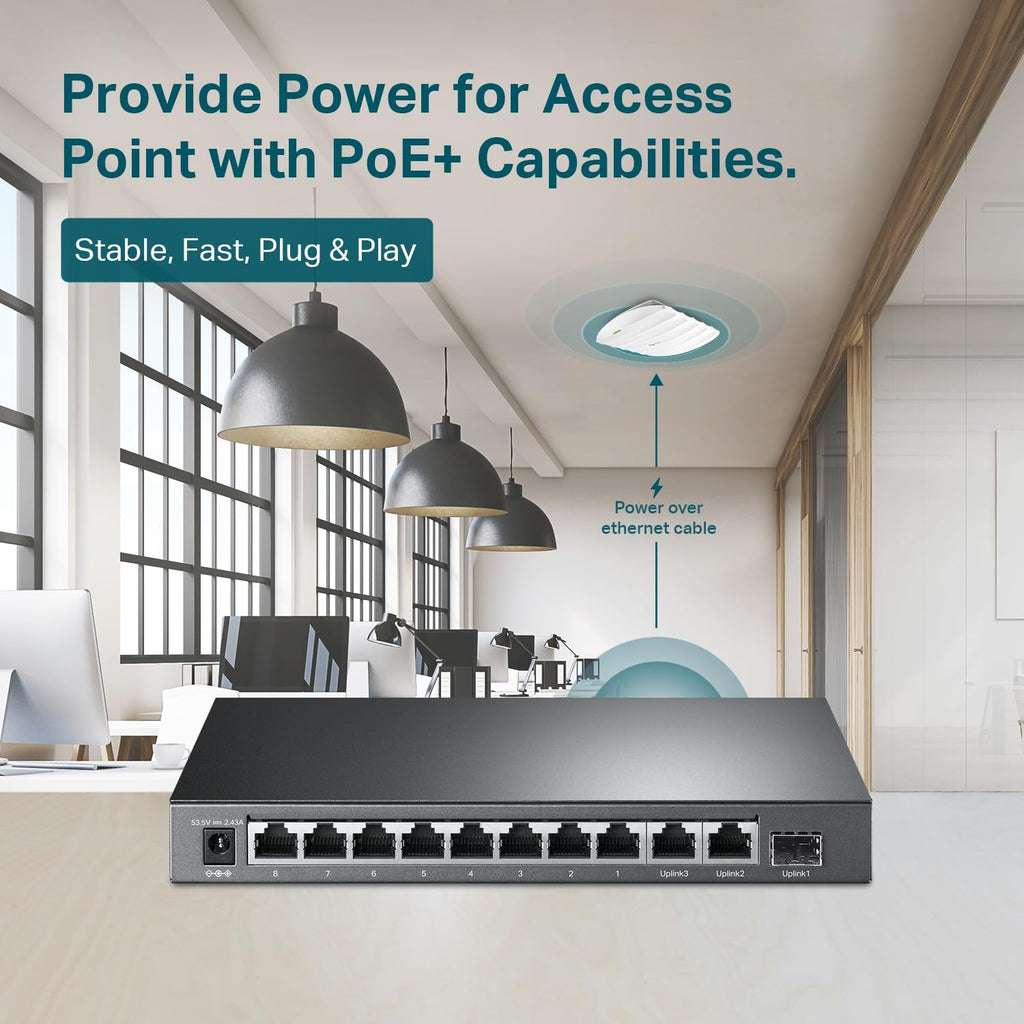

Wi-Fi Coverage
Works with Omada EAPs, perfect solution for hotels, restaurants, etc.
Wired Connections
Works with PCs and Printers.
Intelligent Power Management
• Power Overload Protection prevents power overload by cutting lower priority port’s power
• Automatic PD Detection automatically detects PoE/non-PoE Equipment and provides the required power for your PoE devices
Durable Metal Casing
The interior components of TL-SG1210MP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1210MP delivers switching performance you can depend on.
Advanced Functions for Higher Performance
For Fluent Online Experience
Administrators can use QoS to designate the priority of traffic. For example, prioritize your cameras or IP phones to ensure that voice and video applications remain clear and lag-free.
Traffic Optimization for IPTV
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

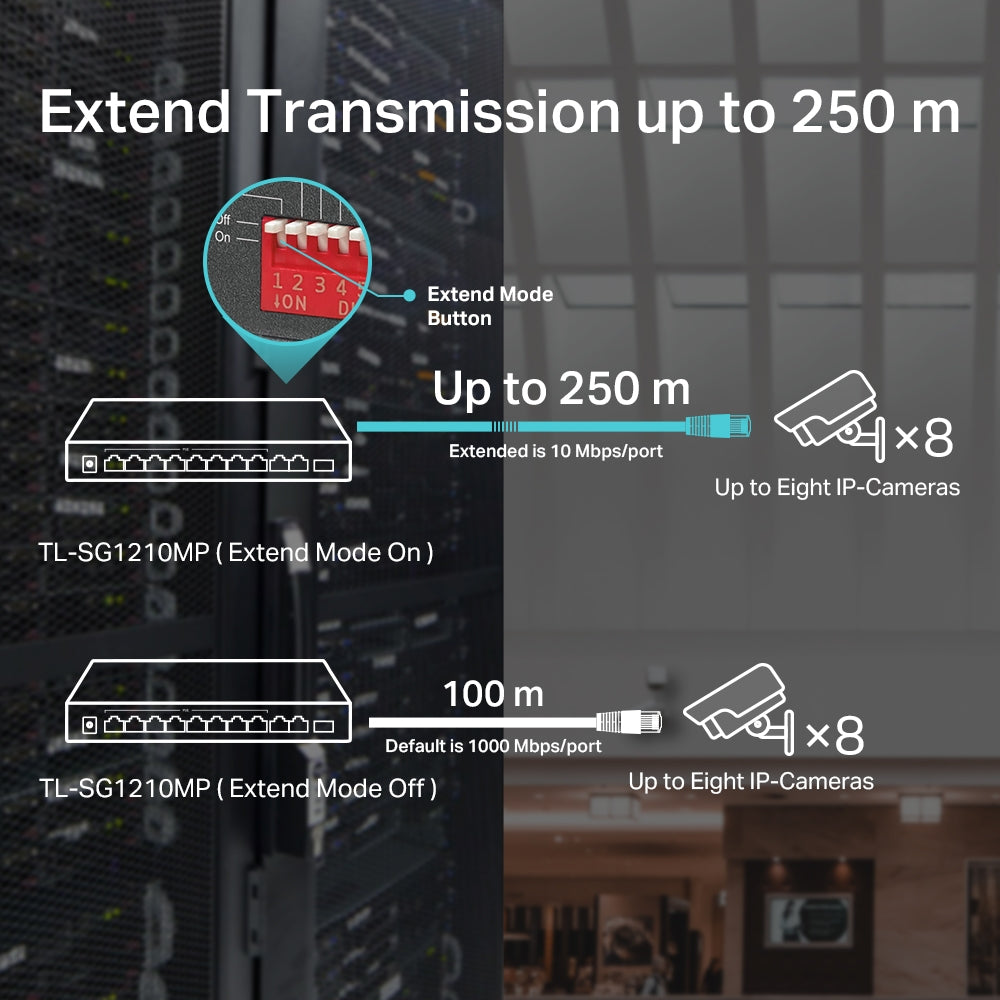

Up to 820 ft
With extend mode on, PoE transmission distance can reach up to 820 ft, the speed of the ports will drop to 10 Mbps/port .
Port Prioritization and Isolation
Keep Your Network Smooth and Safe with Port Prioritization and Separation
Specifications
| HARDWARE FEATURES | |
|---|---|
| Interface | • 9× 10/100/1000 Mbps RJ45 Ports • 1× 1000 Mbps Combo SFP/RJ45 Port • AUTO Negotiation • AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5VDC / 2.43A) |
| Packet Forwarding Rate | 14.88 Mpps |
| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power Supply: 123 W |
| Mac Address Table | 4K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 20 Gbps |
| Dimensions ( W x D x H ) | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
| Max Power Consumption | • 7.93 W (220V / 50Hz with no PD connected) • 141.40 W (220V / 50Hz with 123 W PD connected) |
| Max Heat Dissipation | • 27.04 BTU/h (220V / 50Hz with no PD connected) • 482.17 BTU/h (220V / 50Hz with 123 W PD connected) |
| SOFTWARE FEATURES | |
|---|---|
| Transmission Method | Store-And-Forward |
| Advanced Functions | • Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission) • Priority Mode Button (Ports 1–2) • Isolation Mode Button (Ports 1–4 / 5-8) • PoE Auto Recovery (Ports 1-8) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | • TL-SG1210MP • Power Adapter • Installation Guide |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
