Highlights

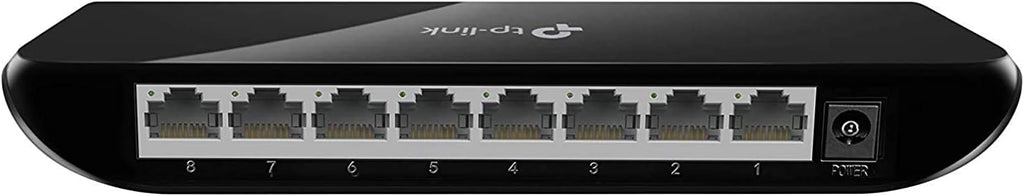

- 8 Gigabit Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
- Green Ethernet technology saves the power up to 80%
- IEEE 802.3x flow control provides reliable data transfer
- Plastic case, desktop or wall-mounting design
- Plug and play, no configuration required
- 3 Years TP-Link Local Manufacturer Warranty
Product Description
Specifications
HARDWARE FEATURES | |
Standards and Protocols | IEEE 802.3i/802.3u/ 802.3ab/802.3x |
Interface | 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
Fan Quantity | Fanless |
Physical Security Lock | No |
External Power Supply | External Power Adapter (Output: 5VDC / 0.6A) |
Jumbo Frame | 15 KB |
Switching Capacity | 16 Gbps |
Dimensions ( W x D x H ) | 7.1 * 3.5 * 1.0 in. (180 * 90 * 25.5 mm) |
Max Power Consumption | 4.63W(220V/50Hz) |
Max Heat Dissipation | 15.80BTU/h |
SOFTWARE FEATURES | |
Transfer Method | Store and Forward |
MAC Address Table | 4K |
Advanced Functions | Green Technology, saving power up to 80% 802.3x Flow Control, Back Pressure |
OTHERS | |
Certification | FCC, CE, RoHs |
Package Contents | 8-Port Gigabit Desktop Switch TL-SG1008D Power Adapter Installation Guide |
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
