Highlights
- Converts the data between fiber (optical signal) and copper (electric signal).
- Extends fiber distance up to 20 km.
- The 802.3af PoE output makes remote camera deployment easier and more convenient.
- WDM (Wave Division Multiplexing) technology enables to transmit and receive data over one single fiber strand instead of two.
- Wide operating temperature (0–50 ℃) with reliability.
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode.
- 3 Years TP-Link Local Manufacturer Warranty
Product Descriptions
Specifications
| Standards and Protocols | IEEE802.3, IEEE802.3i, IEEE802.3u |
|---|---|
| Operating Temperature | 0–50 °C (32–122 °F) |
| Storage Temperature | -40–70 °C (-40–158 °F) |
| Operating Humidity | 10–90% RH non-condensing |
| Storage Humidity | 5–90% RH non-condensing |
| Interface | • 1× 10/100 Mbps PoE RJ45 port (Auto MDI/MDIX) • 1× 100 Mbps SC fiber port |
| Network Media | 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (≤100 m) |

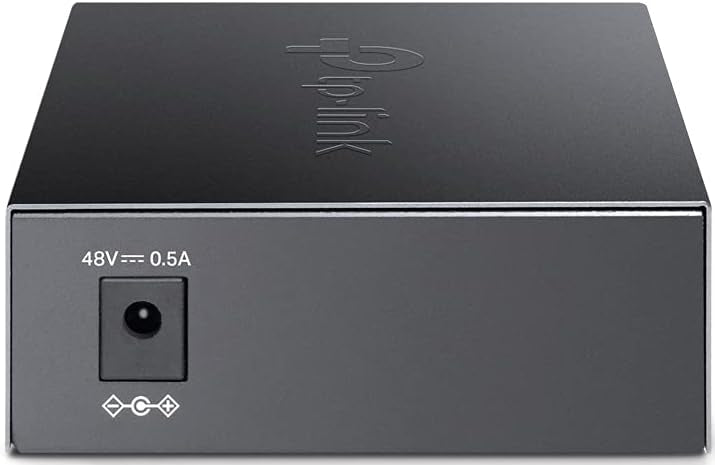

| Power Supply | 48 V/0.5 A |

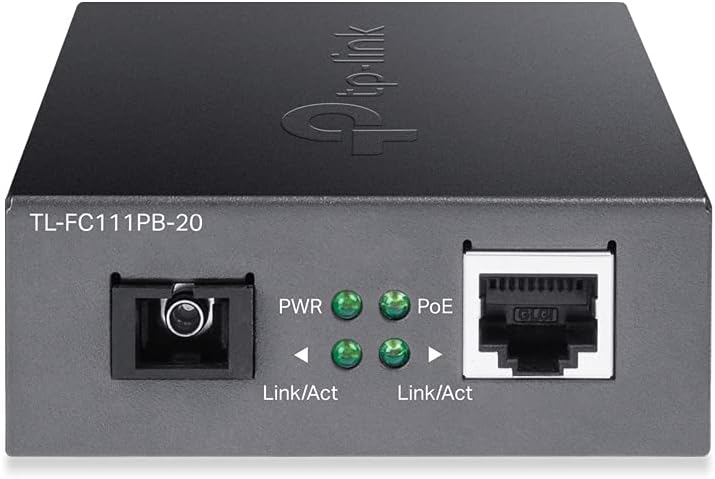

| LED | PWR, Link/Act, PoE |
| Dimensions (W*D*H) | 3.7×2.9×1.1 in (94.5×73.0×27.0 mm) |
| Wave Length | 1310 nm TX, 1550 nm RX |
| Connector Type | • 1× 10/100 Mbps PoE RJ45 port • 1× 100 Mbps SC fiber port |
| Fiber Type | 9/125 μm single-mode fber (≤20 km) |
| Package Contents | • Media Converter TL-FC111PB-20 • Power Adapter • Installation Guide |
| Warranty | 3 Years TP-Link Local Manufacturer Warranty |
