High-Capacity, Advanced Networking Solution for Intensive Business Applications

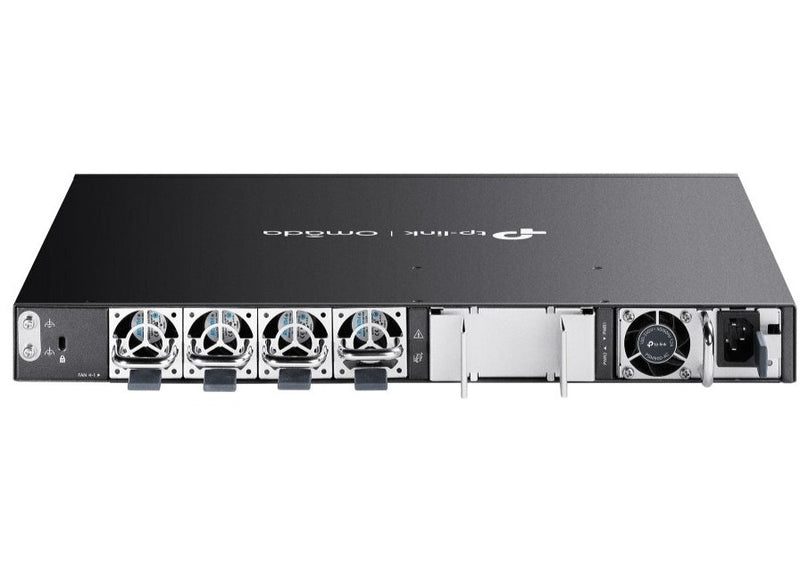

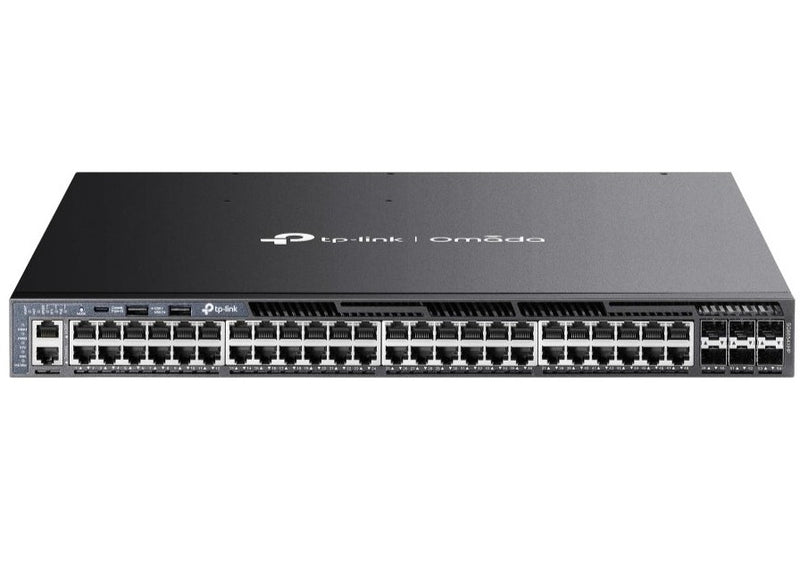

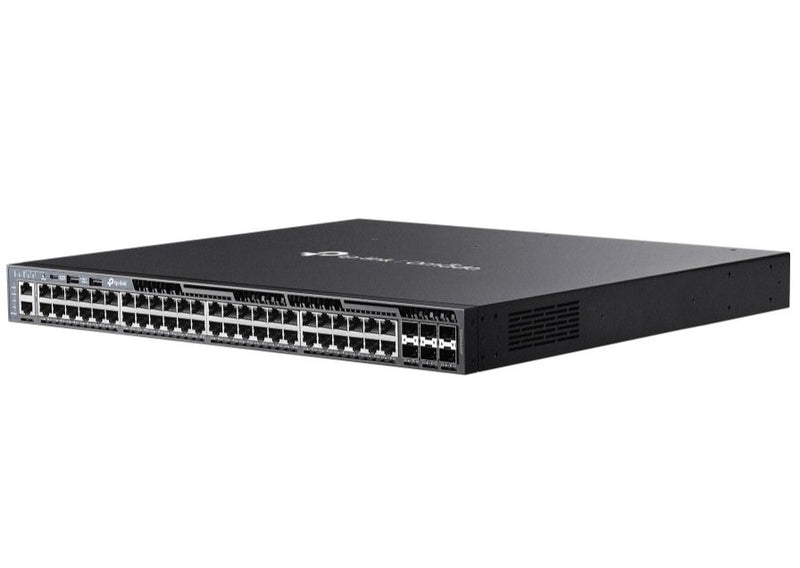

The TP-Link SG6654XHP is an L3 managed PoE+ switch that is part of the Omada series, designed to meet the demanding requirements of SMBs, enterprises, and ISPs. This switch is particularly suited for convergence layer applications, offering high-speed connectivity, extensive PoE+ support, and advanced routing capabilities.

Key Features

• 48× Gigabit RJ45 PoE+ Ports: Deliver both power and data over a single cable with IEEE 802.3at/af-compliant PoE, supporting a wide range of devices like wireless APs, surveillance cameras, and IP phones.
• 6× 10G SFP+ Slots: Provide high-speed fiber uplink connections, ensuring minimal latency and fast data transfer to servers or network backbones.
• 1440 W Total PoE Budget: Offers substantial power to support numerous PoE devices, with up to 30W per port.
• Physical Stacking Capability: Supports stacking up to 4 units, providing a total switching capacity of up to 864 Gbps for enhanced scalability and performance.
• Layer 3 Routing Features: Includes Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay for efficient network routing and segmentation.
• Robust Security Strategies: Features ACL, Port Security, DoS Defend, and 802.1X for comprehensive network protection.
• High Availability: Equipped with field-replaceable power supplies, VRRP support, and ERPS for increased reliability and network uptime.
• Centralized Cloud Management: Integrates with Omada SDN for streamlined network administration and monitoring.
• Flexible Standalone Management: Can be managed via web, CLI, SNMP, and RMON, offering versatility in network administration.

Ideal Use-Cases

The SG6654XHP is ideal for networks that require a high-density PoE+ connectivity, high-speed uplinks, and sophisticated Layer 3 routing. This includes environments like large office buildings, educational campuses, and data centers.

User-Friendly Management

This switch offers centralized cloud management through Omada SDN as well as traditional standalone management options, providing flexibility for different operational needs. Secure management interactions are ensured with SSL/SSH encryption for web and CLI access.

Conclusion

The TP-Link SG6654XHP is a versatile and powerful networking solution, offering a blend of extensive PoE+ support, rapid 10 Gbps connectivity, advanced routing capabilities, and robust security. Its integration into TP-Link's Omada SDN platform adds to its appeal, making it an excellent choice for complex, high-demand network environments.
