描述
Highlights

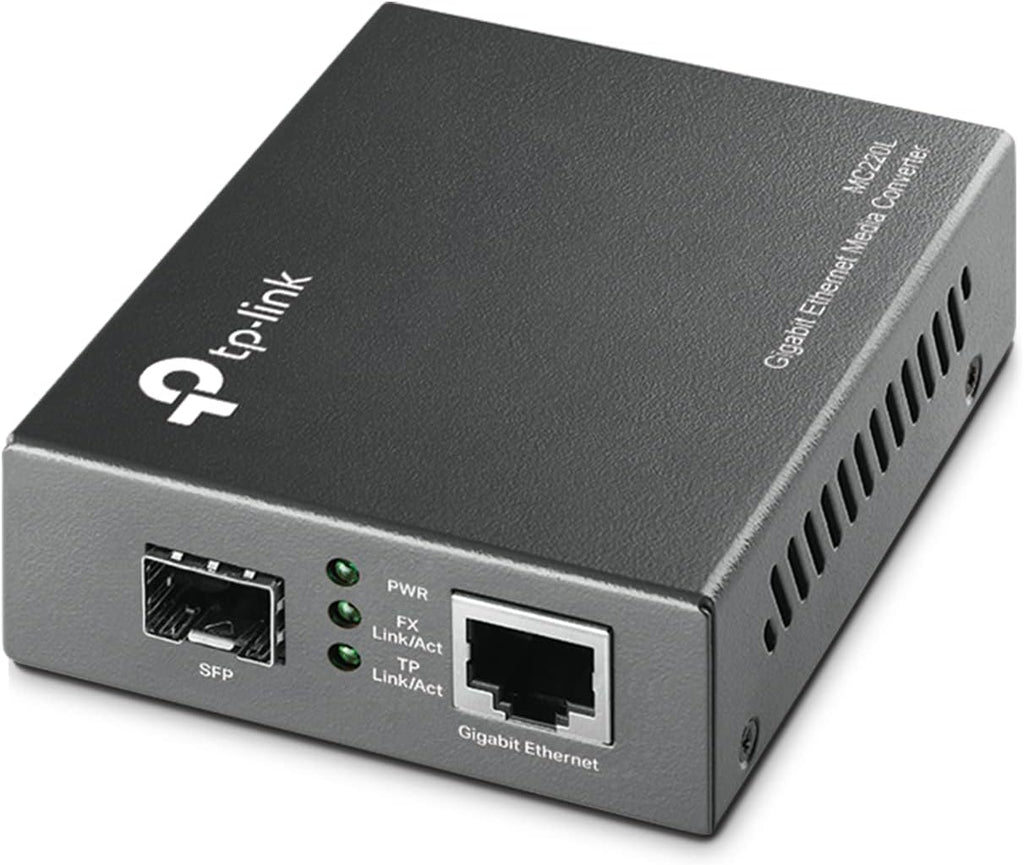

- Model: MC220L
- Supports full duplex flow control (IEEE 802.3x)

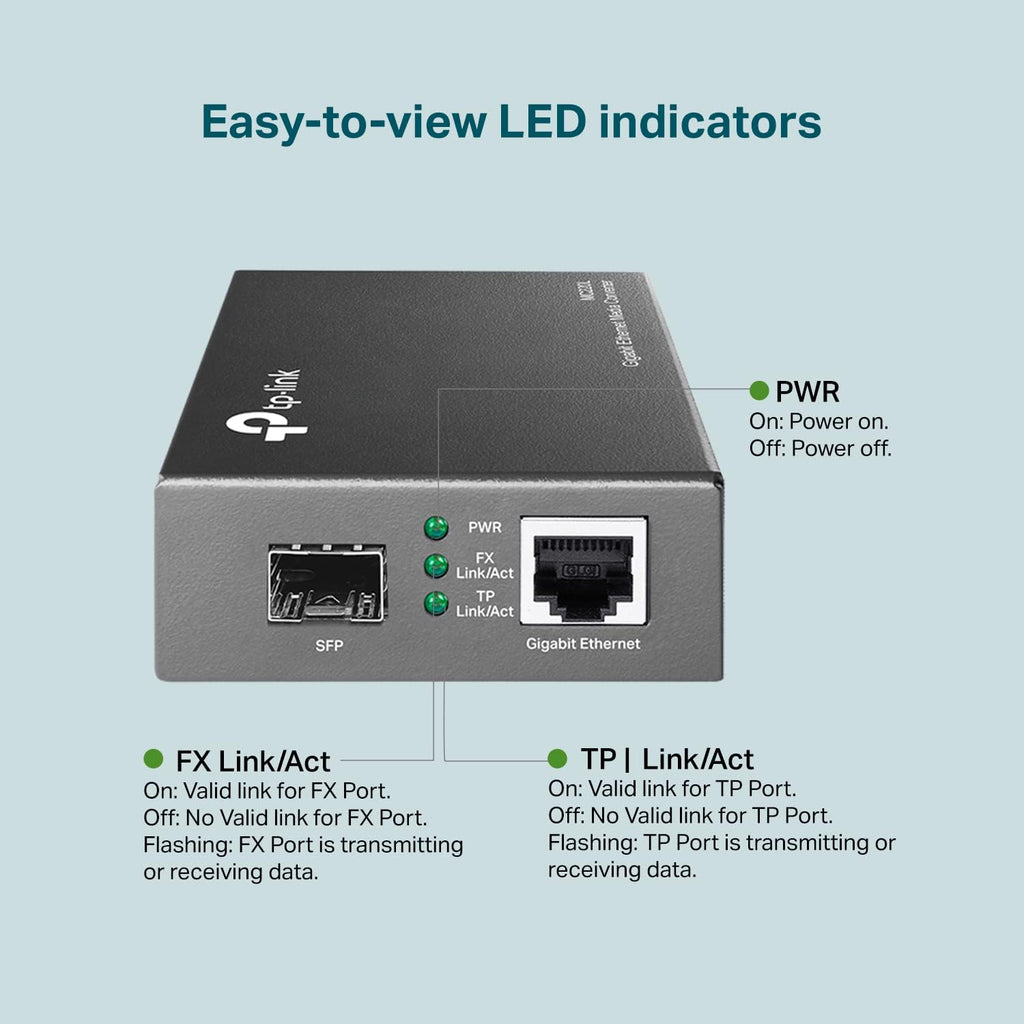

- LED indicators provide an easy way to monitor network activity
- Fix into a TL-MC1400 chassis
- Supports 10/100Mbps and Gigabit data transfer rates to meet a range of requirements
- Extends fiber distance up to 0.5km for multi-mode fiber or up to 10km with single-mode fiber
- 1 10/100/1000Mbps auto-negotiation RJ45 ports supporting Auto-MDI/MDIX
- Auto-negotiation of half-duplex / full-duplex transfer mode
- Complies with IEEE 802.3ab and IEEE 802.3z
- FX port supports hot-swappable
- Max power consumption 1.7 W
- 3 years TP-Link Local Manufacturer Warranty
Product Description
Specifications
| MEDIA CONVERTER & MODULE | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |

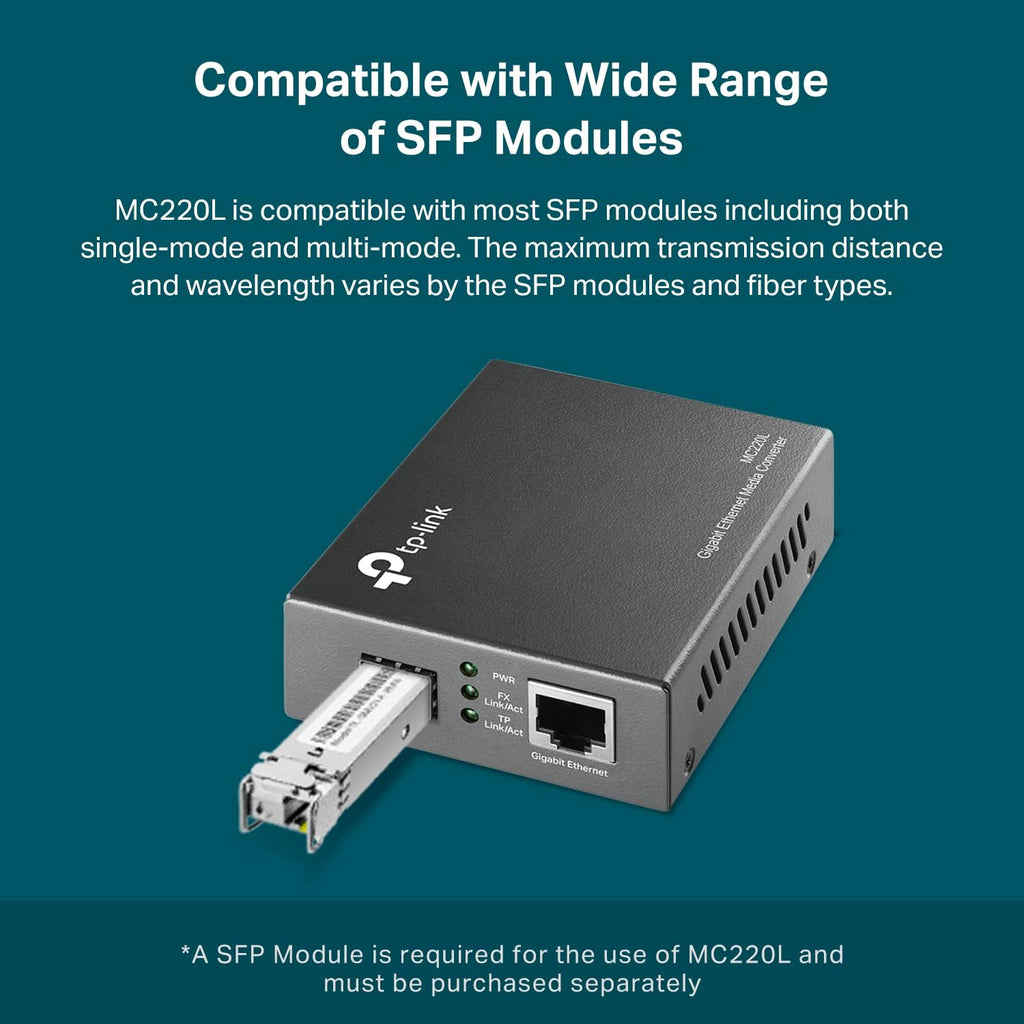

| Basic Function | Auto-negotiation of Half-Duplex / Full-Duplex transfer mode Maximum transmission distance depends on the inserting SFP module |

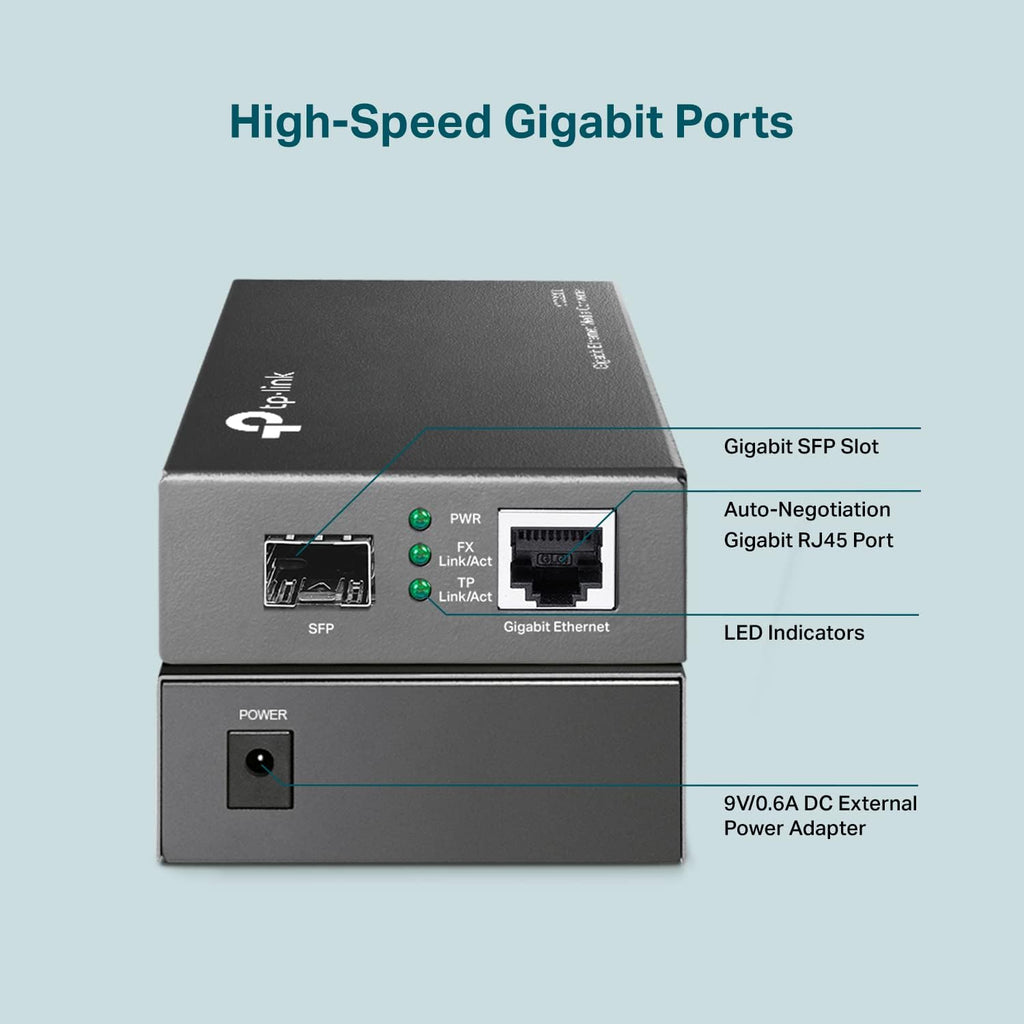

| Ports | 1 1000M SFP port 1 10/100/1000M RJ45 port (Auto MDI/MDIX) |
| Wave Length | Depends on the used SFP module |
| Network Media 1000BASE-X | Multi-mode/Single-mode SFP module |
| Network Media 1000BASE-T | UTP category 5, 5e cable (maxium 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| LED Indicators | PWR, Link/Act |

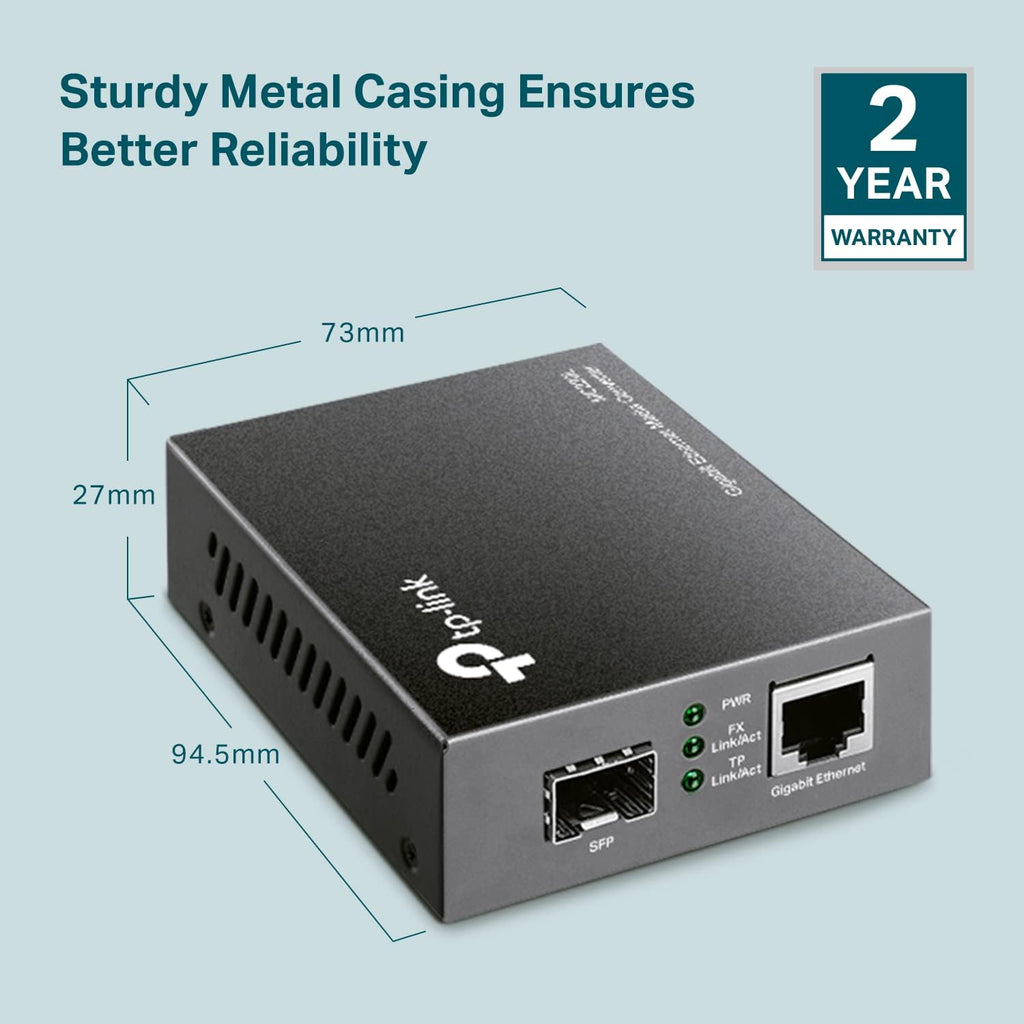

| Dimensions (W*D*H) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Power Supply | External Power Adapter |
| Max Power Consumption | 1.7W |
| Safety & Emission | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
