TP-LINK
價格:
HK$369.00

描述

Highlights

  • 1 x Ethernet port 10/100 Mbps (RJ-45)
  • maximum transmission distance - 20 km
  • transmission via one single-mode fiber (WDM)
  • LED indicators showing operating status
  • easy installation (plug and play)
  • power supply included

Specifications

Name Ethernet media converter TP-LINK MC111CS
Code L11721
Standards
 IEE 802.3, IEEE 802.3u, IEE 802.3x
Transmission properties Half/Full Duplex transfer (TX port)
WDM technology
Full/Half Duplex Flow Control
Interfaces 1x10BASE-T  UTP 3,4,5 (max. 100 m)
EIA/TIA-568 STP 100 Ω (max. 100 m)
1x100BASE-T  UTP 5, 5e (max. 100 m)
EIA/TIA-568 STP 100 Ω (max. 100 m)
1x100BASE-FX single-mode (SC)
WDM TX 1550nm
RX 1310nm

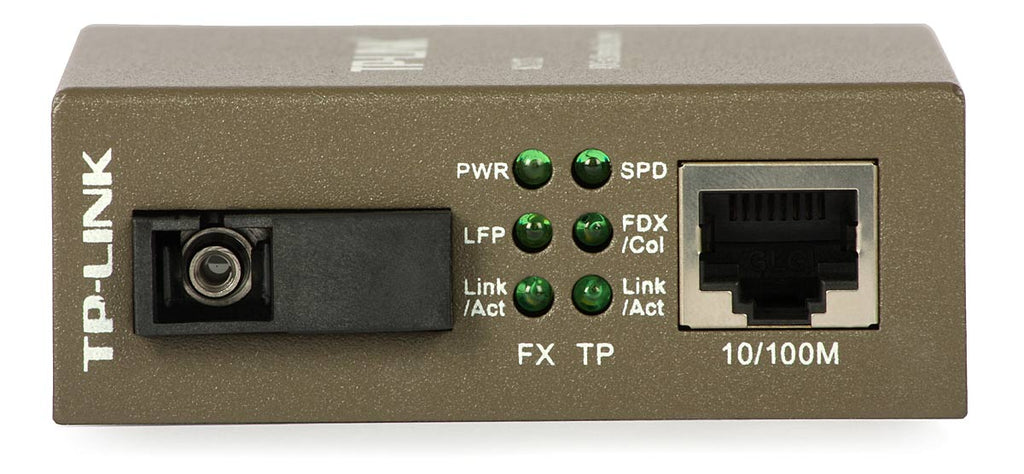

LED indicators
 PWR, FDX/Col, LINK, SPD
Certificates
 FCC, CE
Transmission windows [nm] 1310, 1550
Range [km] 20
Power 230 VAC / 9 VDC
Dimensions [mm] 94.5x73x27
Operating temperature [º] 0-40
