Highlights
- 10/100/1000Mbos Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX

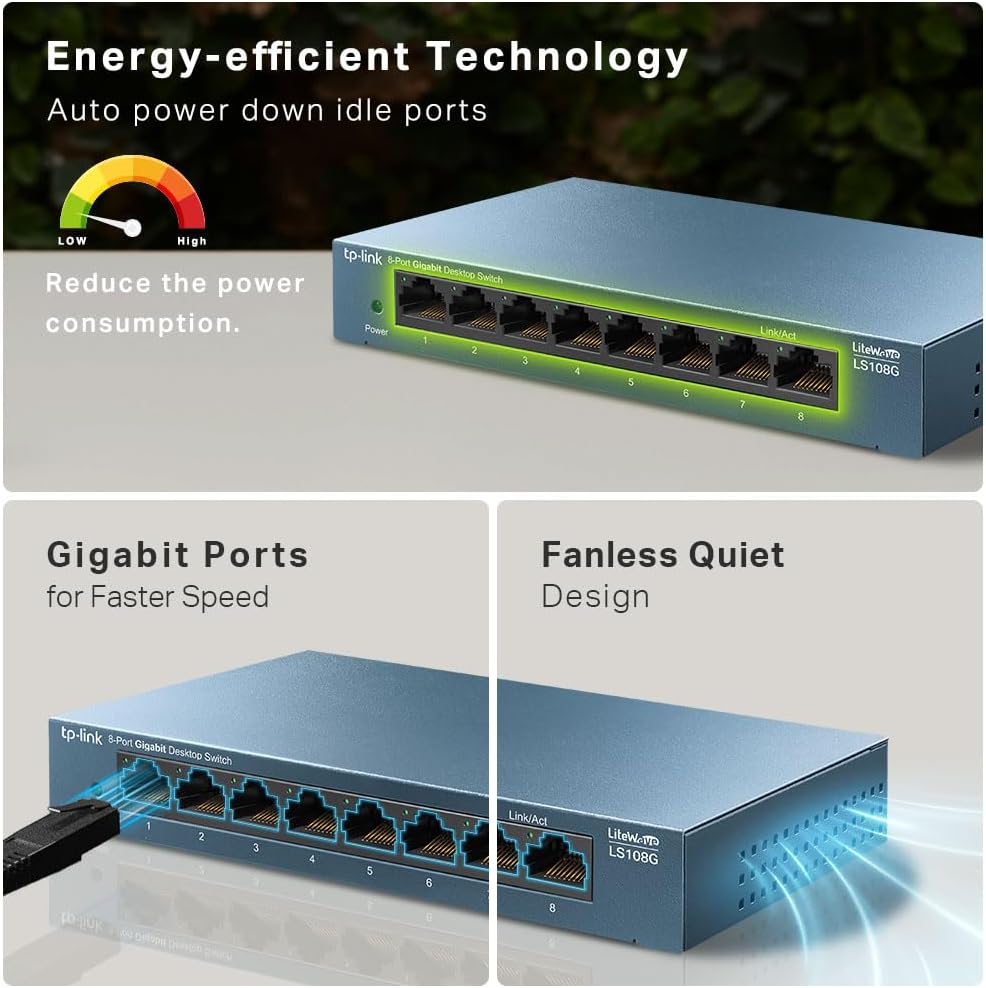

- Green Ethernet technology saves power
- IEEE 802.3X flow control provides reliable data transfer
- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS function
- Plug and play, no configuration needed
- 3 Years TP-Link Local Manufacturer Warranty
Product Descriptions
Specifications
| Hardware Features | |
| Standards and Protocols | IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p |
| Interface | 8 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter • V1, V3: 9VDC / 0.6A • V2: 5VDC / 0.6A |

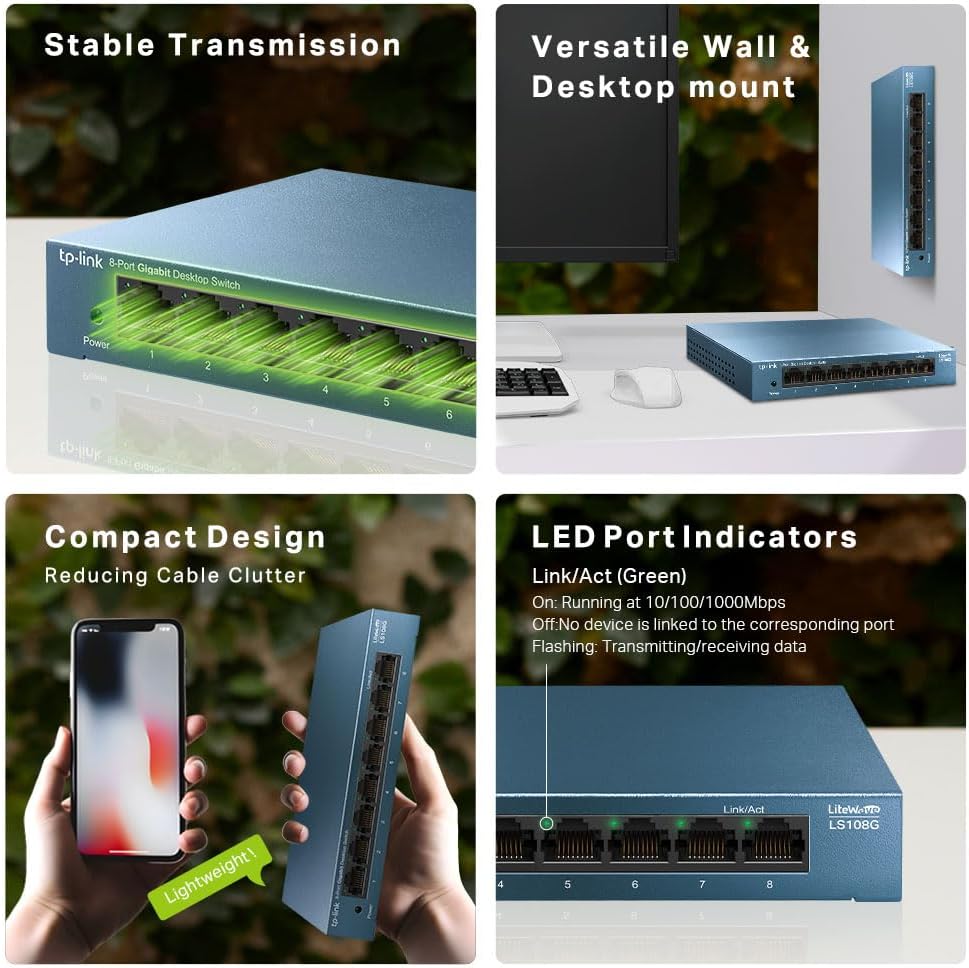

| LED Indicator | • System Power |
| • Link/Act indicators per port built into each RJ-45 port | |

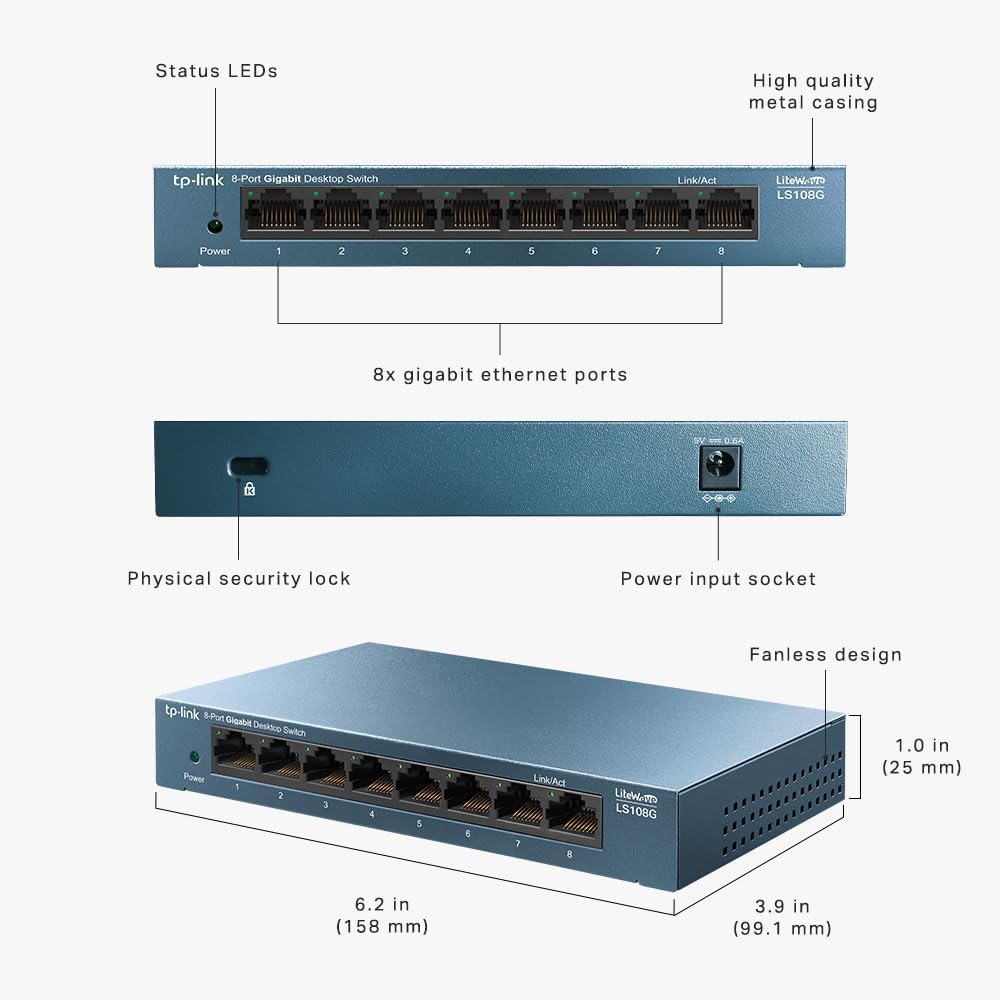

| Dimensions ( W x D x H ) | 6.2 x 3.9 x 1.0 in. (158 x 99.1x 25 mm) |
| Max Power Consumption | 3.7W(220V/50Hz) |
| Max Heat Dissipation | 12.617 Btu/hr |
| Performance | |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 4 K |
| Packet Buffer Memory | 1.5 Mb |
| Jumbo Frame | 16 KB |
| Software Features | |
| Advanced Features | • 802.3X Flow Control |
| • 802.1p/DSCP QoS | |
| Transfer Method | Store and Forward |
| Others | |
| Certification | CE, FCC ,RoHS |

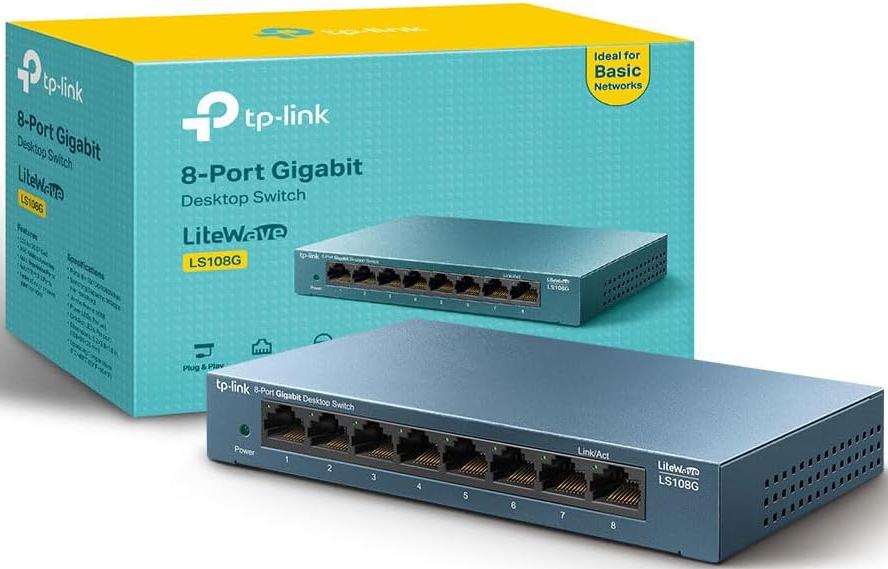

| Package Contents | • 8-Port 10/100/1000Mbps Desktop Switch |
| • Power Adapter | |
| • Installation Guide | |
| Environment | • Operating Temperature: 0–50 °C (32–122 °F) |
| • Storage Temperature: -40–70 °C (-40–158 °F) | |
| • Operating Humidity: 10–90% RH non-condensing | |
| • Storage Humidity: 5–90% RH non-condensing | |
| Warranty | 3 Years TP-Link Local Manufacturer Warranty |
