Highlights

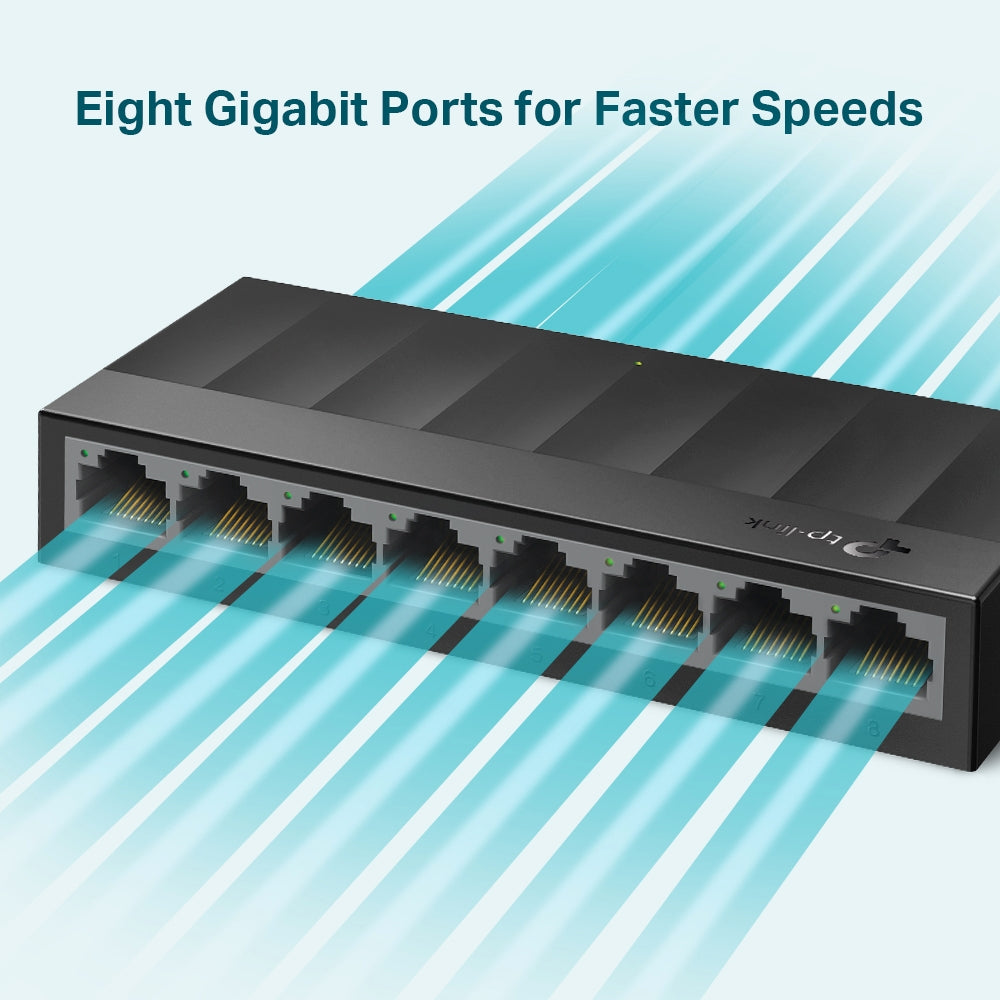

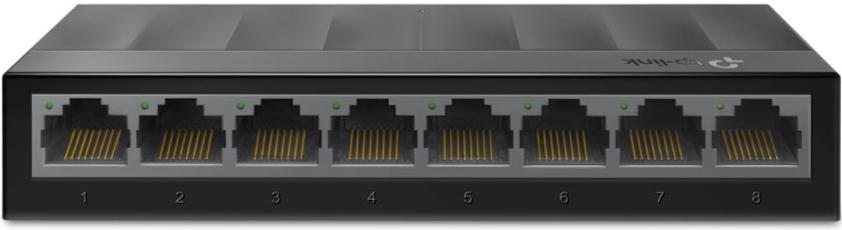

- 8× 10/100/1000Mbos Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX

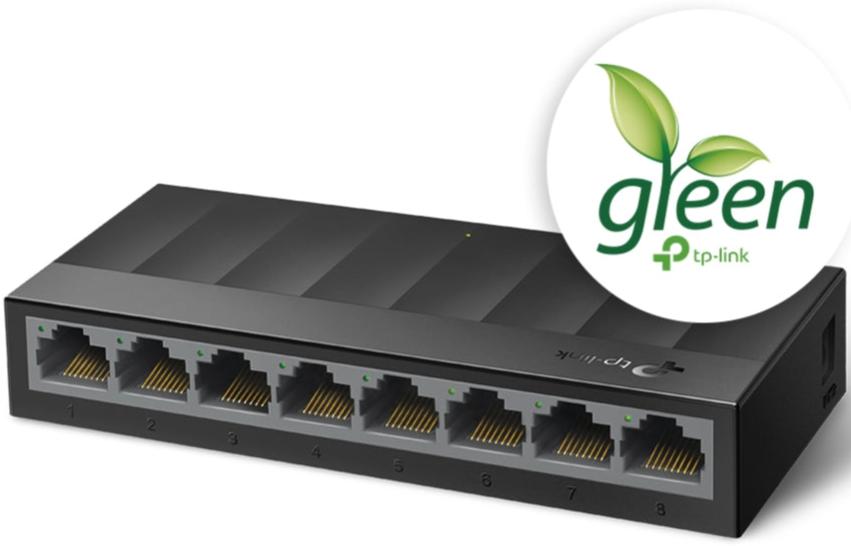

- Green Ethernet technology saves power
- IEEE 802.3X flow control provides reliable data transfer
- Plastic casing, desktop or wall-mounting design
- Plug and play, no configuration needed

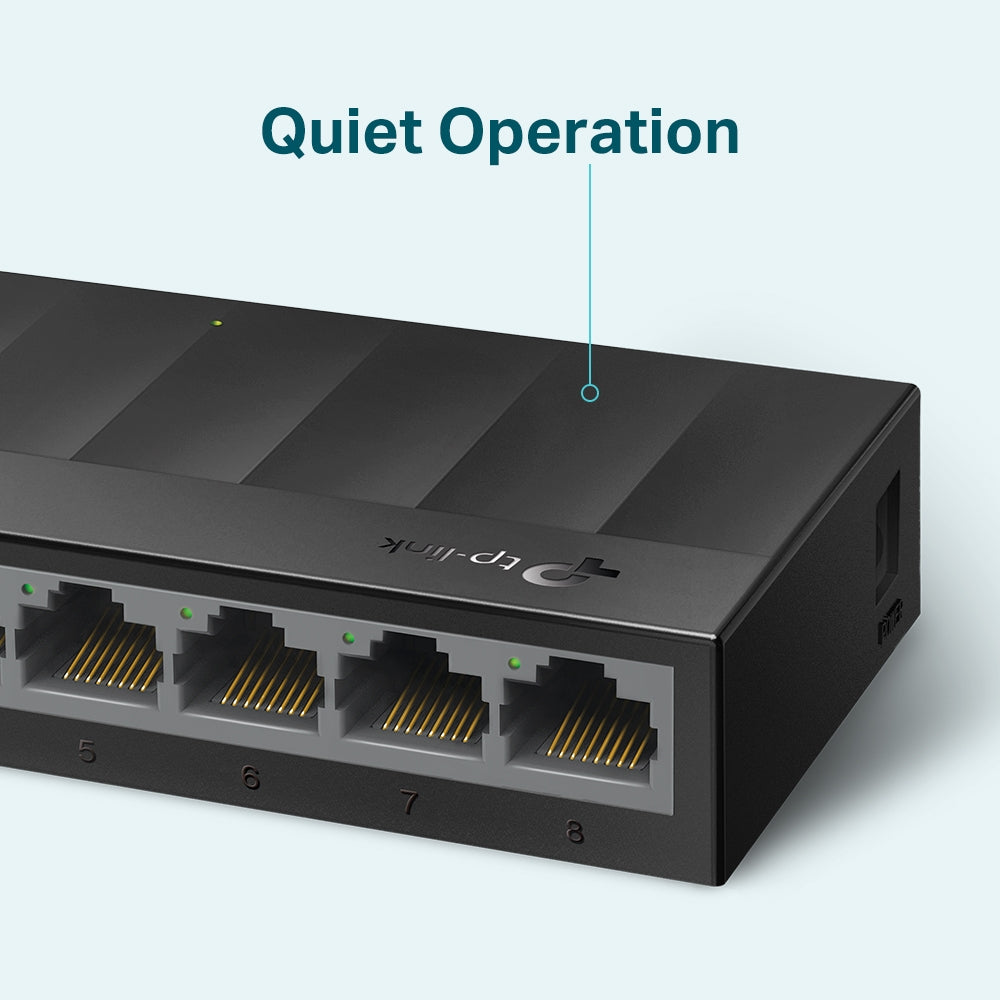

- Fanless design ensures quiet operation
- 3 Years TP-Link Local Manufacturer Warranty
Product Descriptions
Specifications
| Hardware Features | |
| Standards and Protocols | IEEE 802.3i/802.3u/ 802.3ab/802.3x |
| Interface | 8× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 5VDC / 0.6A) |
| Dimensions ( W x D x H ) | 5.0 × 2.6 × 0.9 in. (127 × 66.5 × 23 mm) |
| Max Power Consumption | 2.7W |
| Max Heat Dissipation | 13.3 BTU/h |
| Performance | |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 4 K |
| Packet Buffer Memory | 1.5 Mb |
| Jumbo Frame | 16 KB |
| Software Features | |
| Advanced Features | • Green Technology |
| • 802.3X Flow Control | |
| • Back Pressure | |
| Transfer Method | Store and Forward |
| Others | |
| Certification | CE, FCC ,RoHS |

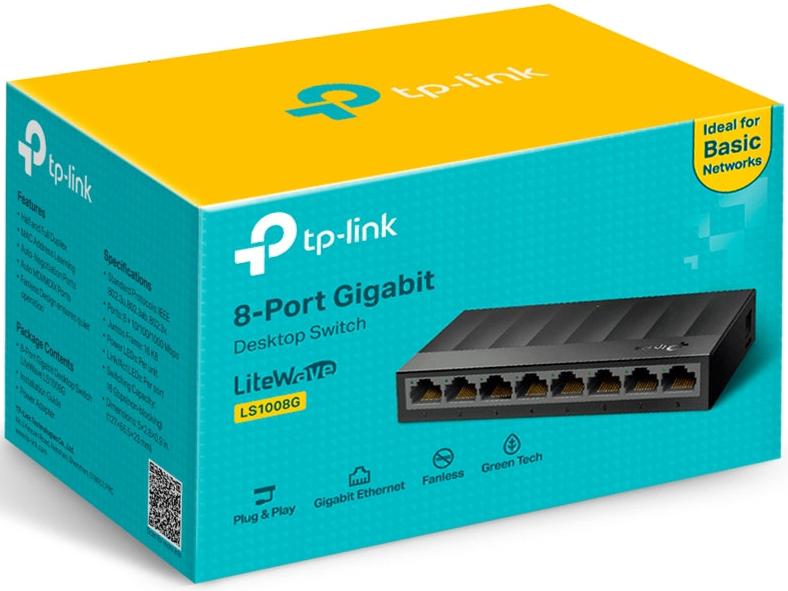

| Package Contents | • 8-Port 10/100/1000Mbps Desktop Switch |
| • Power Adapter | |
| • Installation Guide | |
| Environment | • Operating Temperature: 0°C~40°C (32°F~104°F) |
| • Storage Temperature: -40℃~60℃ (-40℉~140℉) | |
| • Operating Humidity: 10–90% RH non-condensing | |
| • Storage Humidity: 5–90% RH non-condensing | |
| Warranty | 3 Years TP-Link Local Manufacturer Warranty |
