描述
COMBAT FG is fully compatible with Intel ATX 3.1 specifications and supports up to 200% power offset. The dual 8-pin sockets on the HCS terminal and modular panel to the 12+4-pin socket design on the GPU side are safer designs to avoid large-angle bending problems. The latest design meets the latest PC requirements more safely through IEC/EN 62368 and ALPM mode.
★ 120mm FDB Fan: Unique 7-blade design allows high airflow and a more stable cooling system, and provides precise rotation speed to minimize noise (dBA).
★ 100% fully modular, all ultra-flexible ribbon cables can be easily managed for routing inside the case.
★ Passed the 80 PLUS® Gold certification from the US high performance certification body, with efficiency of 87% 90% 87% at 20% 50% 100% rated load.
★ Adopting all Japanese capacitors, with excellent characteristics of high stability and long life
★ Full range automatic voltage detection design 100V~240V (active PFC)
★ Compliant with ATX 12V v3.1, EPS 12V v2.92 specifications.
★ Complies with EU EuP (Energy-using Products) directive/US Energy Star (Energy Star) standards
★ Overvoltage protection/overcurrent protection/overpower protection/short circuit protection/overtemperature protection
★ Supports all Intel / AMD multi-core CPUs and ATX / BTX compatible motherboards (Haswell Ready)
★ Support NVIDIA® SLI™ & ATI CrossFireX™ high-performance graphics cards
★Supports PCIe 8pin and PCIe 6pin connectors, compatible with graphics card power connectors of various brands, meeting the requirements of high-end graphics cards.
★Multi-national safety certification
Specifications
|
model |
SF-650C12FG |
|
|
Actual Wattage |
650W |
|
|
Conversion efficiency |
Load 20%: 87%; Load 50%: 90%; Load 100%: 87% |
|
|
Intel Power Design Specification |
EPS version 2.92 |
|
|
Supported CPU |
The entire series supports the latest Intel and AMD multi-core chipsets and compatible motherboards |
|
|
Voltage |
Full voltage design (100~240V) / equipped with active power factor correction (APFC) |
|
|
Appearance |
Hexagonal honeycomb heat dissipation holes, high-efficiency convection design |
|
|
Fan specifications |
12cm FDB bearing intelligent temperature control silent fan |
|
|
Body size |
140mm(L) x |
|
|
Protection line |
Overvoltage protection OVP / Overcurrent protection OCP / Overtemperature protection OTP / Short circuit protection SCP / Overload protection OPP |
|
|
Safety Certification |
cTÜV us / TÜV / CB / CE / FCC / UKCA / BSMI / RoHS / EAC |
|
|
temperature |
Verified by high temperature test at 40℃ ambient temperature |
|
|
After-sales service |
10 -year free warranty |
|
|

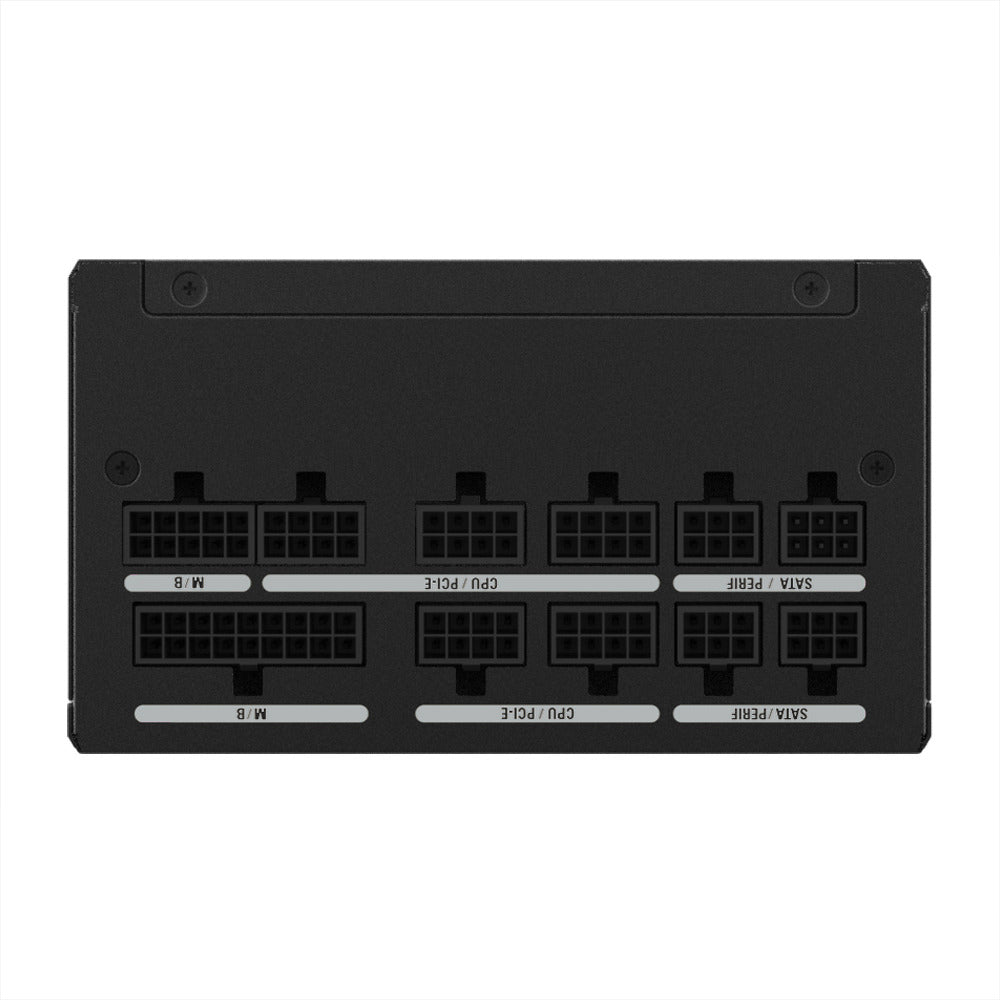

Wire configuration |
||
|
20+4Pin detachable design |
fixed |
One set (600mm) |
|
(4+4Pin) CPU connector |
Two groups (600mm) |
|
|
12+4 Pin (PCI 5.0) |
One set (600mm) |
|
|
SLI (2 x PCI 6+2Pin) |
Two groups (500+150mm) |
|
|
3SATA |
Two groups (400+150mm) |
|
|
4 large 4Pin+FDD |
One set (400+150mm) |
|
|

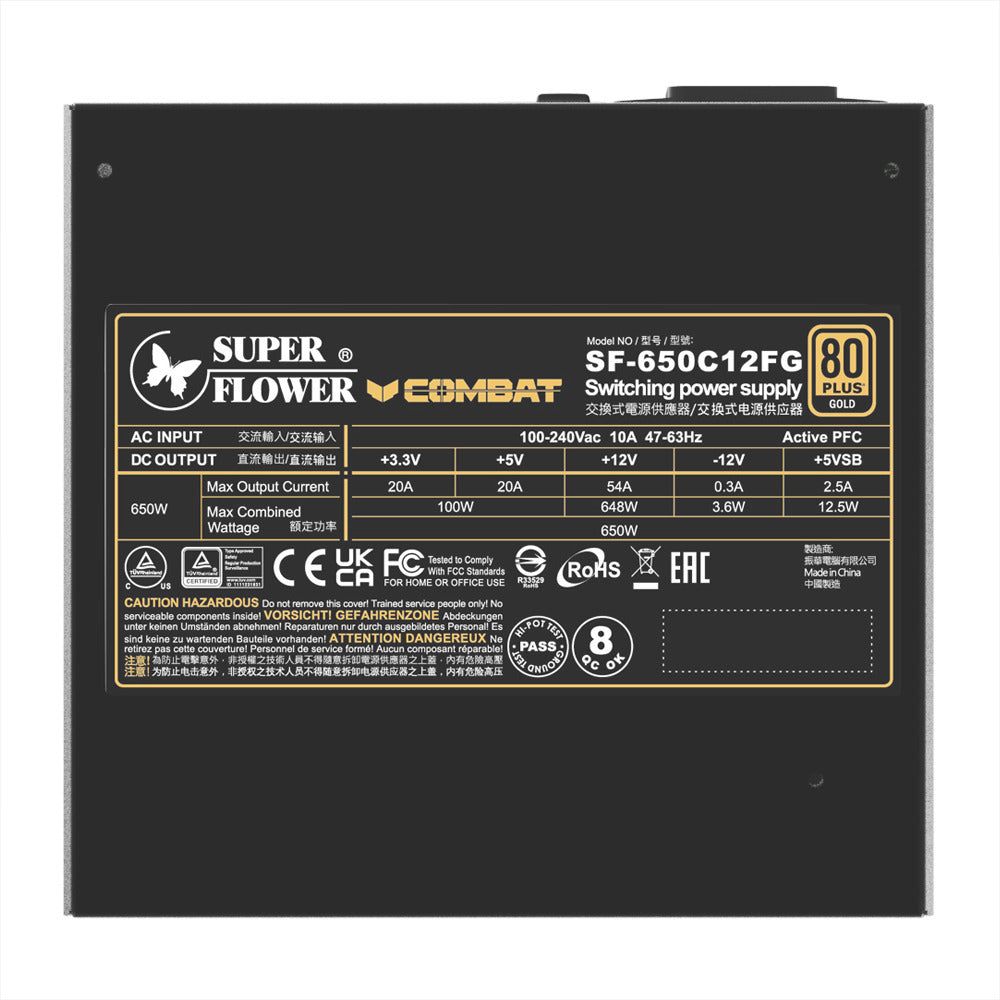

Model: SF-650C12FG |
||||||
|
AC INPUT |
100-240V 10A 47-63Hz |
|||||
|
DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5VSB |
|
|
650W |
Max Output Current |
20A |
20A |
54A |
0.3A |
2.5A |
|
Max Combined Wattage |
100W |
648W |
3.6W |
12.5W |
||
|
650W |
||||||
