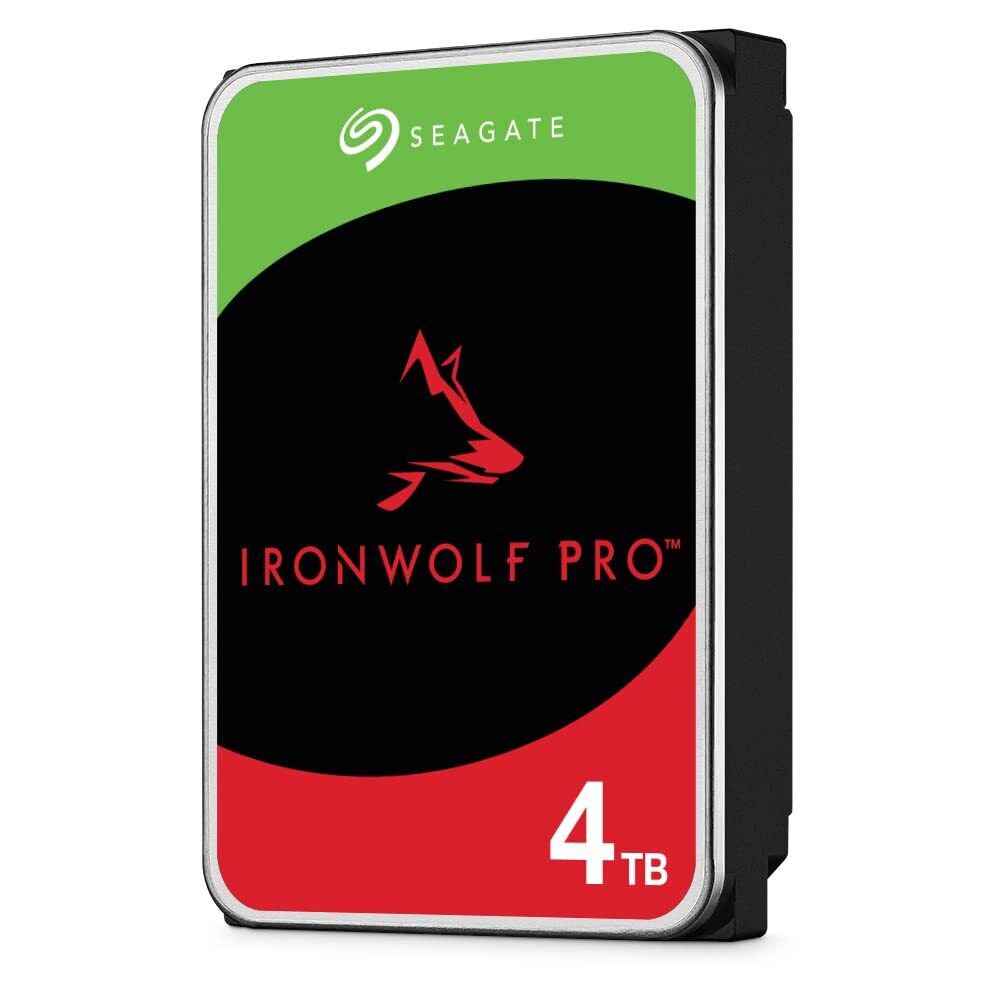

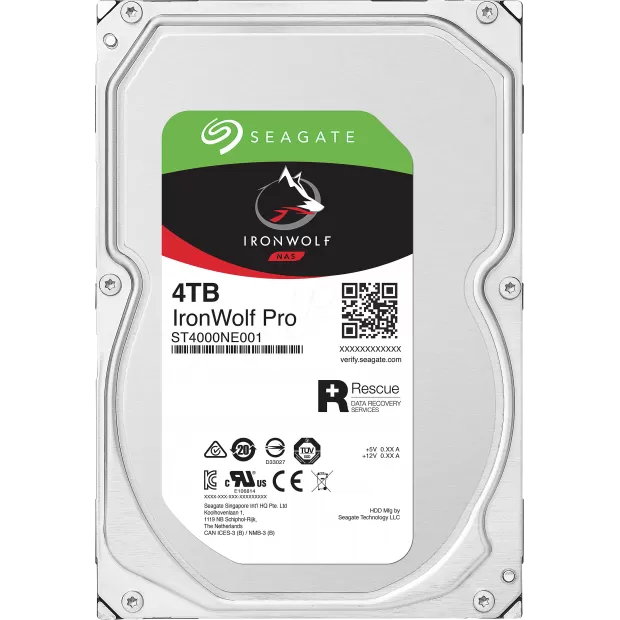

Seagate 4TB IronWolf Pro ST4000NE001 NAS 3.5" SATA 7200rpm 128MB Cache HDD



Brand Seagate
Series IronWolf Pro
Model ST4000NE001
Interface SATA 6Gb/s
Capacity 4 TB
Form Factor 3.5"
Features and Performance
Drive Bays Supported Up to 24-bay
Multi-User Technology 300 TB/Year
Rotational Vibration (RV) Sensor Yes
Hot-Plug Support Yes
Cache (MB) 256MB
Reliability/Data Integrity
Mean Time Between Failures (MTBF, Hours) 1,200,000
Reliability Rating @ Full 24×7 Operation (AFR) 0.73%
Non-Recoverable Read Errors per Bits Read, Max 1 per 10E15
Power-On Hours per Year (24×7) 8,760
Sector Size (Bytes per Logical Sector) 512E
Rescue Services Yes
Spindle Speed (RPM) 7,200
Interface Access Speed (Gb/s) 6.0, 3.0, 1.5
Max. Sustained Transfer Rate OD (MB/s) 214MB/s
Average Latency (ms) 4.16
Interface Ports Single
Rotational Vibration @ 10-1,500 Hz (rad/s) 12.5
Power Management
Startup Current, Typical (12V, A) 2
Idling Average (W) 5.5 W
Average Operating Power (W) 8.7W
Standby Mode/Sleep Mode, Typical (W) 1/1
Power Supply Requirements +12 V and +5 V
Operating Temperature Range 5°C - 60°C
Non-Operating Temperature Range -40°C - 70°C
Shock, Operating 2 ms (Read/Write) (Gs) 50/50 Gs
Shock, Non-Operating, 1 ms and 2 ms (Gs) 200 Gs
Dimension 26.11 x 101.85 x 147 mm
Weight 643 g
Warranty Information
Warranty 5 Year Limited Warranty
