| SPECIFICATIONS | |

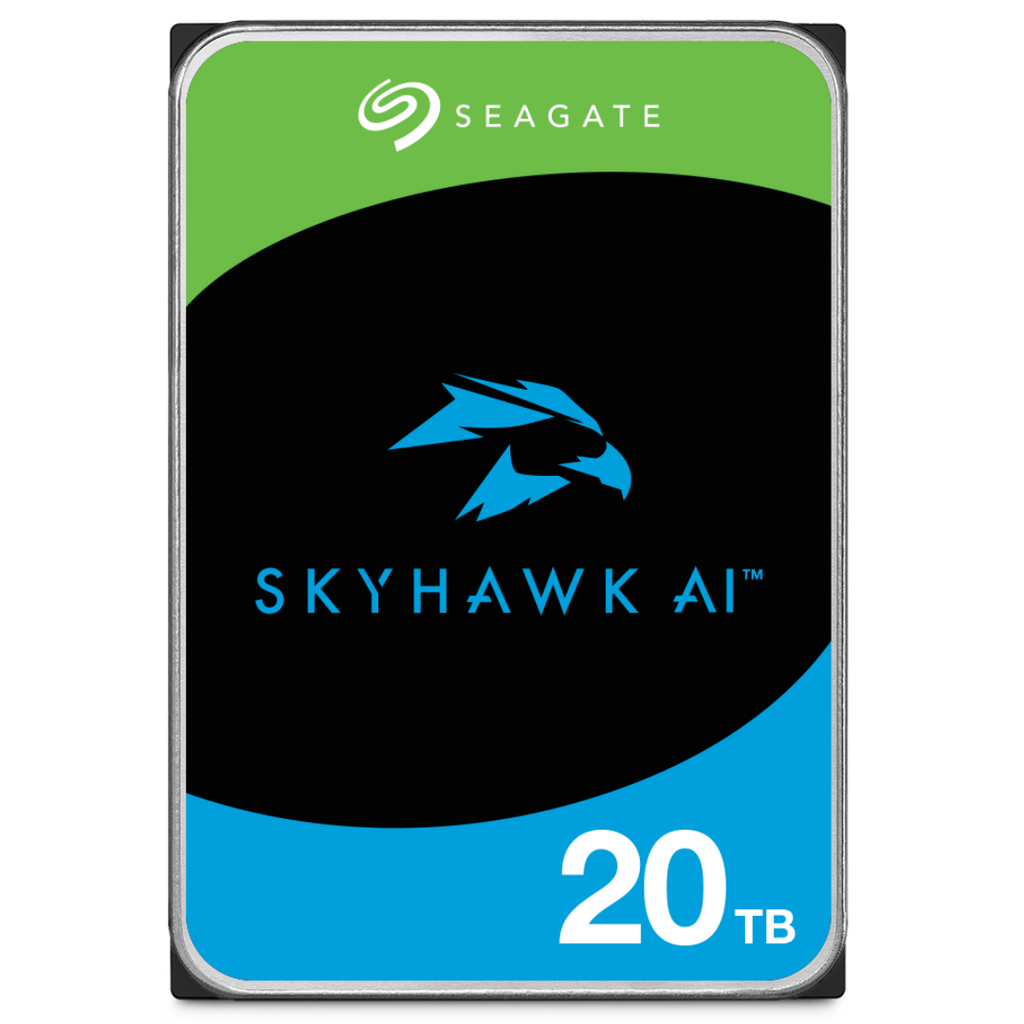

| Brand | Seagate |
| Series | SkyHawk AI 20TB |
| Model | ST20000VE002 |
| Capacity | 20TB |
| Interface | SATA 6 Gb/s |
| Recording Technology | CMR |
| Drive Design | Helium |
| Features & Performance | |
| Drive Bays Supported | Unlimited |
| AI Channels | 32 |
| AI Real Time Capture Events/Sec | Up to 120 |
| AI Real Time Compare Events/Sec | Up to 96 |
| HD Cameras Supported | Up to 64 |
| RV Sensors | Yes |
| Max Data Transfer Rate | Up to 285MB/s |
| Cache | 256MB |
| Reliability/Data Integrity | |
| Tarnish Resistant | Yes |
| Load/Unload Cycles | 600,000 |
| Non-recoverable Read Errors Rate, Max | 1 Per 10E15 |
| Power-On Hours Per Year | 8,760 |
| Workload Rate Limit (WRL) | 550 |
| Mean Time Between Failures (MTBF) (Hours) | 2,500,000 Hours |
| Power Management | |
| Startup Current, Typical (12V) | 2A |
| Average Read/Write Power | 7.5W |
| Idling Average | 3.5W |
| Standby Mode/Sleep Mode, Typical | 1W / 1W |
| Voltage Tolerance (5 V) | ±5% |
| Voltage Tolerance (12 V) | ±10% |
| General | |
| Operating (Ambient) | 5°C - 65°C |
| Non-operating(ambient, min) | -40°C |
| Dimensions | 26.11mm x 101.85mm x 146.99mm |
| Weight | 680g |
| Warranty Information | |
| Warranty | 3 Year Warranty |
