General Feature
Product Type
NVMe™ SSD
Family Line

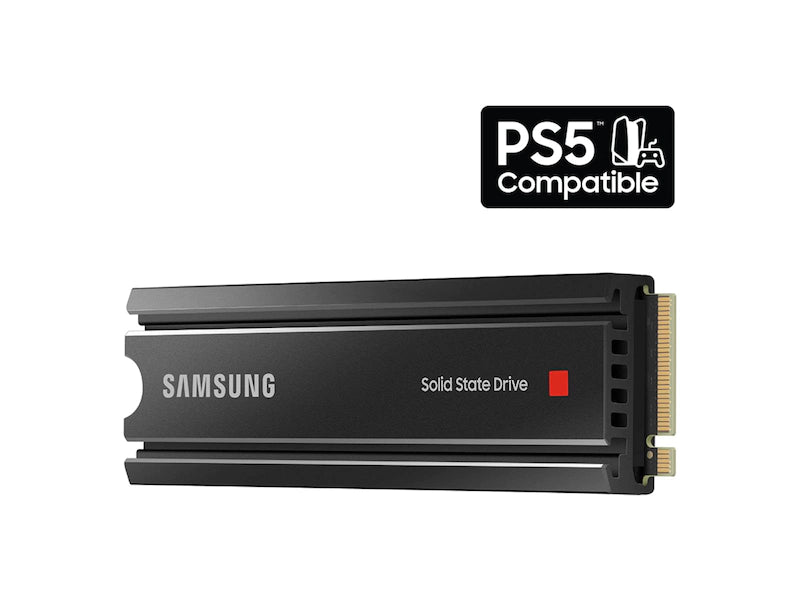

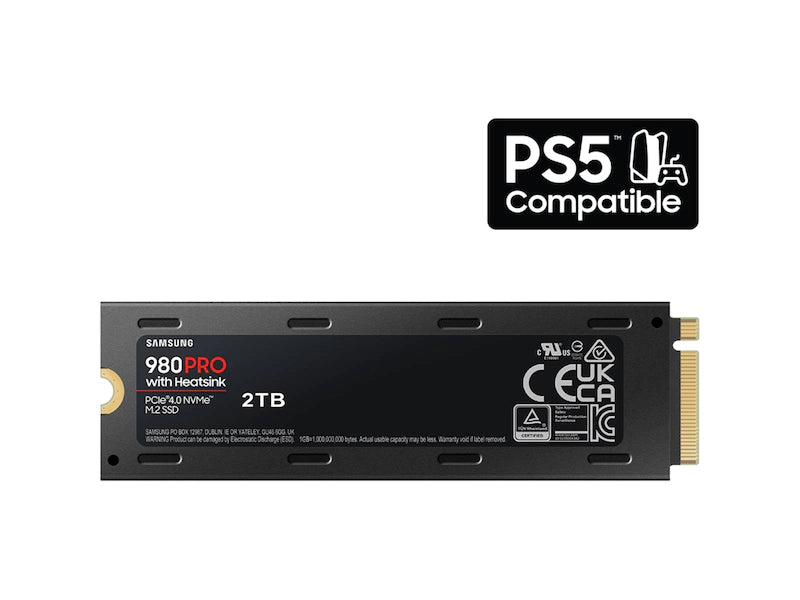

980 PRO with Heatsink PCIe® 4.0 NVMe™ SSD
Capacity
2TB
Interface
PCIe® 4.0
Compatibility
PC & Playstation® 5
-
Performance
Encryption
AES 256-bit (SED), TCG V2.0, Encrypted Drive (IEEE1667)
-
Type
Interface
PCIe Gen 4.0 x4, NVMe 1.3c
Read/Write Speeds
7,000/5,100MB/s
Usage Application
Client PCs, Game Consoles
-
Storage
Capacity
2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
-
Key Features
Sequential Read Speed
Up to 7,000 MB/s * Performance may vary based on system hardware & configuration
Sequential Write Speed
Up to 5,100 MB/s * Performance may vary based on system hardware & configuration
Compatibility
980 PRO is backward compatible with PCIe 3.0. Sequential performances (up to): 3450 MB/s (1TB), 3470 MB/s (2TB) for writes. Random (up to): 690K IOPS (1TB), 680K IOPS (2TB) for reads, 660K IOPS (1TB), 630K IOPS (2TB) for writes.
Cache Memory
Samsung 2GB Low Power DDR4 SDRAM
Trim Support
Supported
S.M.A.R.T. Support
Supported
GC (Garbage Collection)
Auto Garbage Collection Algorithm
WWN Support
Not supported
Device Sleep Mode Support
Yes
Internal Storage
Samsung V-NAND 3-bit MLC
Thermal protection
Heatsink
Heatsink
Yes
M.2 2280
Yes
-
General
Average Power Consumption (system level)
*Average: 6.1 W*Maximum: 7.2 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle)
Max. 35 mW * Actual power consumption may vary depending on system hardware & configuration
Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
-
Environmental Specs
Shock
1,500 G & 0.5 ms (Half sine)
-
Form Factor
Product
M.2 (2280) with Heatsink complying PCI-SIG® D8 standard
-
Dimensions (W x H x D)
Product
24 x 80 x 8.6 mm (with heatsink)
-
Weight
Product
Max 30.5g
-
Warranty
Product
* Limited warranty up to 5 years or up to the TBW for each capacity ***For more information on the warranty, please visit www.samsung.com/support
