描述
QHora-301W
| Number of network ports | 6 |

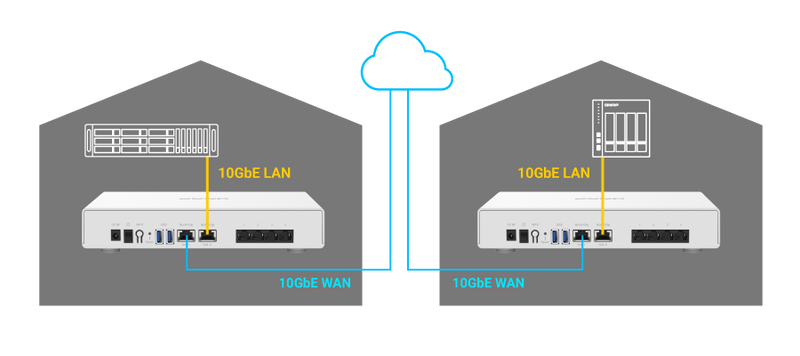

| 10GbE BASE-T (RJ45) | 2 10GBASE-T (10G/5G/2.5G/1G/100M) |
| 1GbE (RJ45) | 4 |
| CPU | Qualcomm IPQ8072A Hawkeye 2 Quad-core 2.2 GHz 64-bit CPU |
| Memory | 1GB |
| flash memory | 4GB eMMC |
| wireless antenna | 8 built-in antennas |
| wireless standards | 802.11a/b/g/n/ac/ax |
| Wireless speed level | AX3600 |
| Wireless speed 2.4 GHz | 2.4G (1182Mbps): 4x4 (40MHz) |
| Wireless speed 5 GHz | 5G (2475Mbps): 4x4 (80MHz), 2x2 (160MHz) |
| Frequency band 2.4 GHz | , dual-band |
| Band 5 GHZ | , dual-band |
| wireless bandwidth | 20/40/80/160MHz |
| Transmission output power | Depends on country code |
| Wireless antenna type | 8 Internal 5dBi Antennas |
| Antenna gain 2.4 GHz | 4.5dBi |
| Antenna gain 5 GHz | 5.2dBi |
| Transmission power | 24dBm |
| Wi-Fi 6 (802.11ax) | |
| Wi-Fi 5 (802.11ac) | |
| USB 3.2 Gen 1 port |
2
Only for connecting USB dongle storage for FTP service on the router
|
| button | Power, WPS, system reset |
| Power settings | 12V DC |
| power consumption | 24W |
| size | 250x180x48mm |
| weight | 1.9kg |
