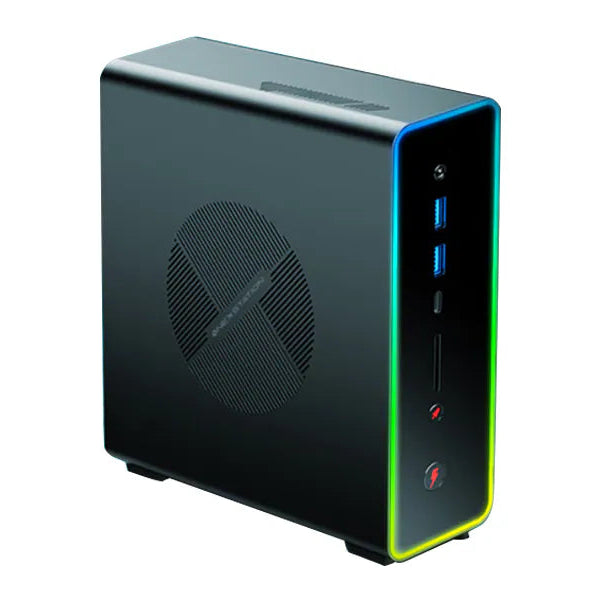

| Model | ONEXStation |
| Processor | AMD Ryzen AI Max+ 395, 16 cores / 32 threads, turbo up to 5.1GHz, 64MB L3 Cache |
| AI Performance | Up to 126 TOPS combined CPU + GPU + NPU |
| Graphics | AMD Radeon 8060S integrated GPU (up to 2.9GHz) |
| Memory | 128GB LPDDR5X (8000MHz) |
| Storage | 2 x M.2 PCIe 4.0 x4 Slots (max. 8TB) Pre-installed : 1TB PCIe 4.0 SSD |
| LAN | 2.5Gb RJ-45 Ethernet Port x 1 |
|
Wireless |
- WiFi 7 - Bluetooth 5.4 |
| Video Output | HDMI (2.0) x 1 DisplayPort (1.4) x 1 USB 4.0 Type-C x 2 Support 4 Displays |
| Audio Output | 3.5mm Audio Jack x 2 |
| I/O Ports * Button | HDMI (2.0) x 1 DisplayPort (1.4) x 1 USB 4.0 Type-C x 2 (40 Gbps, support eGBP & DP 1.4) USB 3.2 Type-A x 3 USB 2.0 x 2 2.5Gb RJ-45 Ethernet Port x 1 3.5mm Audio Jack x 2 SD 4.0 (USH-II) Card Slot x 1 (Up to 300MB/s) Turbo Button x 1 Power Button x 1 |
| Cooling System | 3 Large Pure Copper Heat Pipes 2 Silent Turbo Cooling Fans 1 Internal Down-Blowing Fan Large Aluminium Heatsink Fins |
| Power Modes | Adjustable TDP : 55W / 85W / 120W (One Key Switch) |
| Power Supply | 240W External Power Adapter |
| RGB | 16 Lighting Modes (Front Adjustable) |
| Material | Aerospace-Grade Aluminum |
| Operating System | Windows 11 Pro |
| Dimensions | 186 x 193 x 62 mm |
