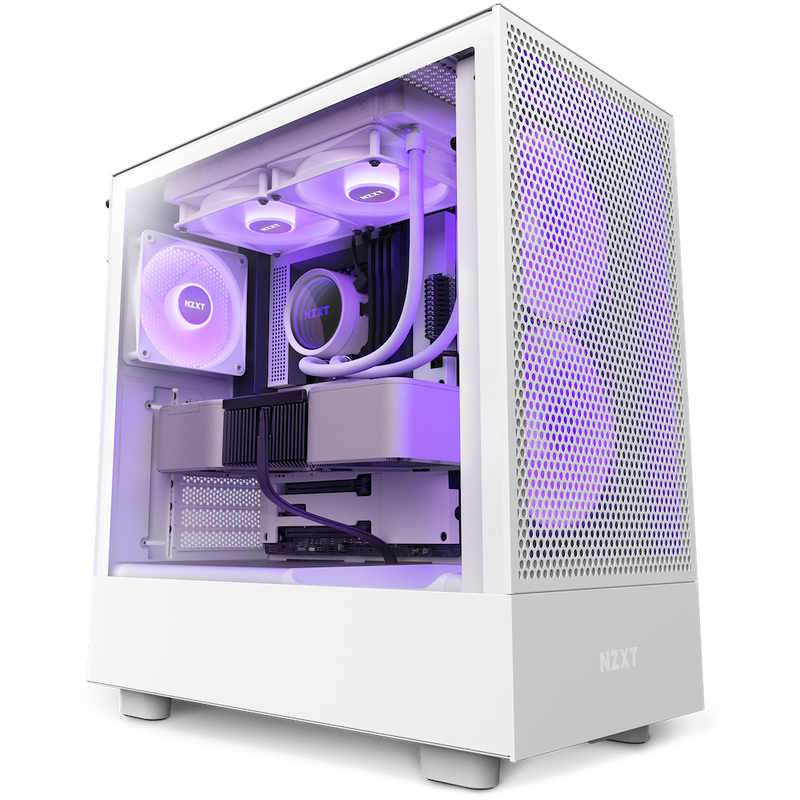

NZXT H5 FLOW RGB (2023) Matte White 啞光白色 Tempered Glass ATX Case CM-H51FW-R1


價格:
特價HK$890.00

描述

The H5 Flow RGB features two pre-installed F140 RGB Core fans & two F120Q Quiet Airflow fans so this compact mid-tower stays cooler than cool. With optimized thermal performance and intuitive cable management, the H5 Flow is an ideal chassis for most builds.

  • Dedicated fan on bottom inside panel is angled to cool GPU
  • Perforated front panel provides optimal ventilation
  • Intuitive cable management system with wide channels, hooks, & straps
  • Tool less access to front and side panels
  • Front panel supports up to 2 x 140mm fans or 280mm radiator
  • Top panel supports up to 2 x 120mm fans or 240mm radiator
  • Includes two pre-installed F140 RGB Core fans & two F120Q Quiet Airflow fans
  • Connects multiple F140 RGB Core fans to 5V ARGB header on the motherboard
  • Two color options (Matte Black, Matte White)

KEY SPECS

  • Motherboard Support:Mini-ITX, Micro-ATX, ATX

  • Enclosure Type:Mid-Tower

  • Case Material (White):SGCC Steel, Ultra-clear Tempered Glass

  • Case Material (Black):SGCC Steel, Dark Tinted Tempered Glass

DIMENSIONS

  • Height (With Feet):464mm

  • Height (Without Feet):448mm

  • Width:227mm

  • Depth:446mm

  • Weight:7.36 kg

COMPATIBILITY & CLEARANCE

  • Max CPU Cooler Clearance:Up to 165mm

  • Max GPU Clearance:Up to 365mm

  • Front Radiator Clearance:45mm

  • Cable Management:Up to 23mm

  • PSU Clearance:Up to 185mm

FRONT I/O PORTS

  • USB 3.2 Gen 1 Type-A:1

  • USB 3.2 Gen 2 Type-C:1

  • Headset Audio Jack:1

EXPANSION SLOTS

  • Standard:7

  • Vertical :0

DRIVE BAYS

  • 2.5":1+1

  • 3.5":1

FAN SUPPORT

  • Front:2 x 120mm / 2 x 140mm (2 x F Series RGB Core 140mm (Case Version) included)

  • Top:2 x 120mm

  • Rear:1 x F Series Quiet 120mm (Case Version) included

  • Bottom:1 x F Series Quiet 120mm (Case Version) included

  • Filters:All Air Intakes

RADIATOR SUPPORT

  • Front:Up to 280mm

  • Top:Up to 240mm

  • Rear:Up to 120mm

FAN SPECS

  • Model:F140 RGB Core Fan (Case Version)

  • Speed:1200 ± 120 RPM

  • Airflow:61.74 CFM

  • Static Pressure:2.06mm-H2O

  • Noise:29.05 dBA

  • Fan Connector:3-pin

FAN SPECS

  • Model:F120Q Airflow Fan (Case Version)

  • Speed:1200 ± 120 RPM

  • Airflow:62.18 CFM

  • Static Pressure:1.05 mm-H2O

  • Noise:25.1 dBA

  • Fan Connector:3-pin

GENERAL

  • Warranty:2 Years
