描述
Cooler Specification
AMD AM5
Height (without fan)
23 mm
Width (without fan)
114 mm
Depth (without fan)
92 mm
Weight (without fan)
390 g
Height (with fan)
37 mm
Width (with fan)
114 mm
Depth (with fan)
92 mm
Weight (with fan)
465 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
61
Max. TDP
see NSPR
Fan compatibility
92x92x14mm, 92x92x25mm

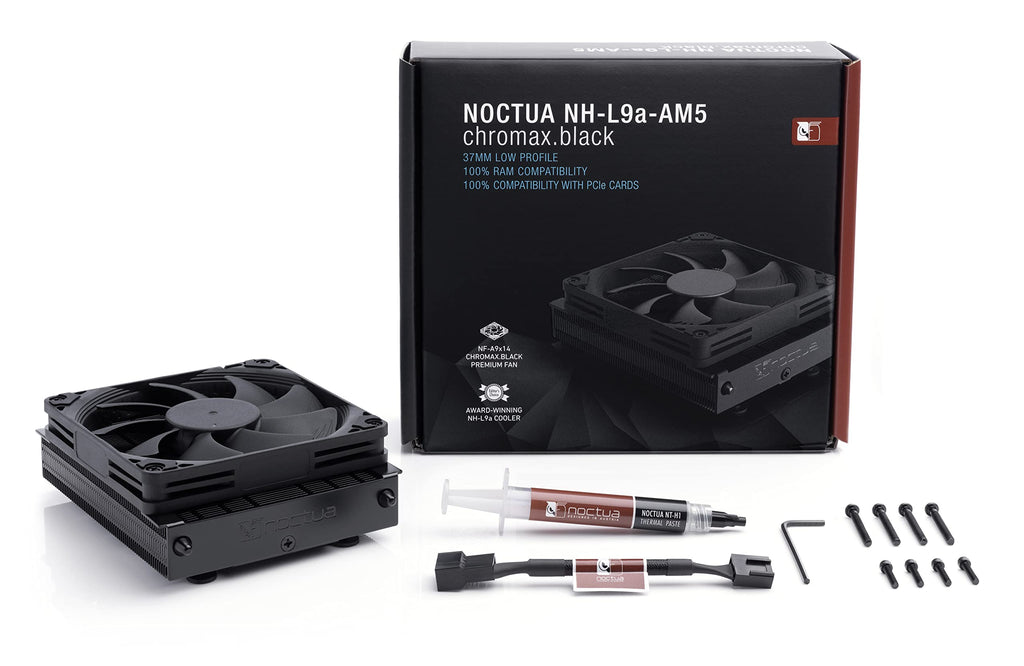

Scope of delivery
- Black NH-L9a-AM5 heatsink
- NF-A9x14 HS-PWM chromax.black premium fan
- NA-RC7 Low-Noise Adaptor (L.N.A)
- NT-H1 high-grade thermal compound
- Black SecuFirm2™ AM5 mounting kit
- Black screws for 92x92x25mm fans
- Noctua Metal Case-Badge
6 Years
FAN Specification
Model
Noctua NF-A9x14 HS-PWM chromax.black
Bearing
Max. rotational speed (+/- 10%)
2500 RPM
Max. rotational speed with L.N.A. (+/- 10%)
1800 RPM
Min. rotational speed @ 20% PWM (+/-20%)
600 RPM
57,5 m³/h
Max. acoustical noise
23,6 dB(A)
Max. acoustical noise with L.N.A.
14,8 dB(A)
Input power (max.)
2,52 W
Voltage range
12 V
MTTF
> 150.000 h
