Cooler Specification
Intel LGA1700 (included since Q4 2021, older coolers require NM-i17xx-MP83), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA2066, LGA2011-0 & LGA2011-3 (Square ILM) & AMD AM4, AM5 (included since 2019, older coolers require NM-AM4)
Height (without fan)
110 mm
Width (without fan)
95 mm
Depth (without fan)
95 mm
Height (with fan)
110 mm
Width (with fan)
95 mm
Depth (with fan)
95 mm
Weight (with fan)
531 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
88
Max. TDP
see NSPR
Fan compatibility
92x92x25

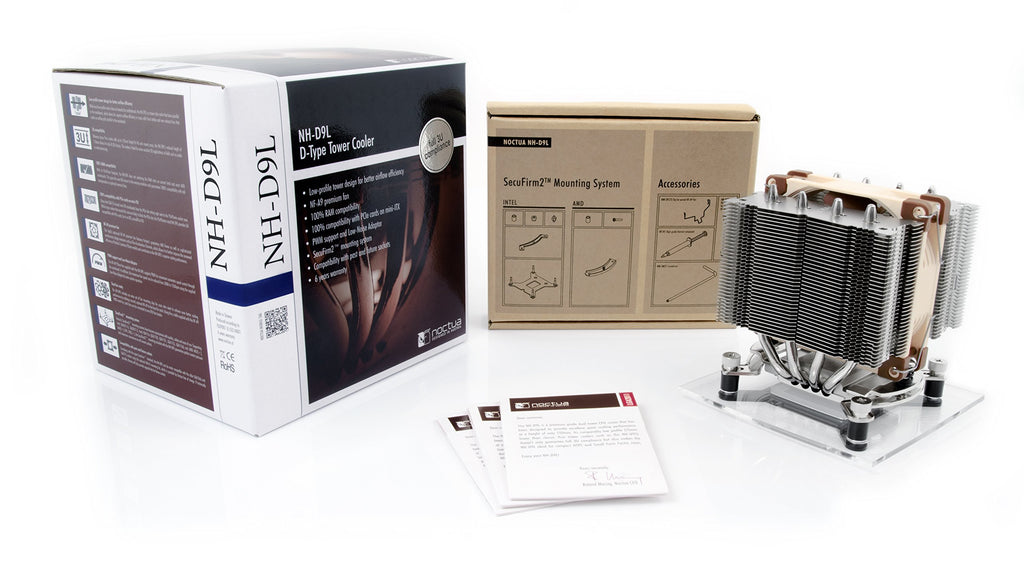

Scope of delivery
- NF-A9 PWM premium fan
- Low-Noise Adaptor (L.N.A.)
- NT-H1 high-grade thermal compound
- SecuFirm2™ Mounting Kit
- Fan-clips for second NF-A9
- Noctua Metal Case-Badge
6 Years
FAN Specification
Model
Bearing
Max. rotational speed (+/- 10%)
2000 RPM
Max. rotational speed with L.N.A. (+/- 10%)
1550 RPM
Min. rotational speed @ 20% PWM (+/-20%)
400 RPM
78,9 m³/h
Max. acoustical noise
22,8 dB(A)
Max. acoustical noise with L.N.A.
16,3 dB(A)
Input power (max.)
1,2 W
Voltage range
12 V
MTTF
> 150.000 h
