描述
FAN Specification
Size
120x120x25 mm
Mounting hole spacing
105x105 mm
4-pin PWM
Cable length
1cm + 30cm NA-EC1 extension cable
Bearing
Blade geometry
S-Series with Anti-Stall Knobs
Frame technology
Rotational speed (+/- 10%)
1200 RPM
Min. rotational speed @ 20% PWM (+/-20%)
300 RPM
Acoustical noise
17,8 dB(A)
Static pressure
1,19 mm H₂O
Input power (typical)
1,19 W
Input power (max.)
1,44 W
Input current (typical)
0,1 A
Max. input current
0,12 A
Operating voltage
12 V
MTTF
> 150.000 h

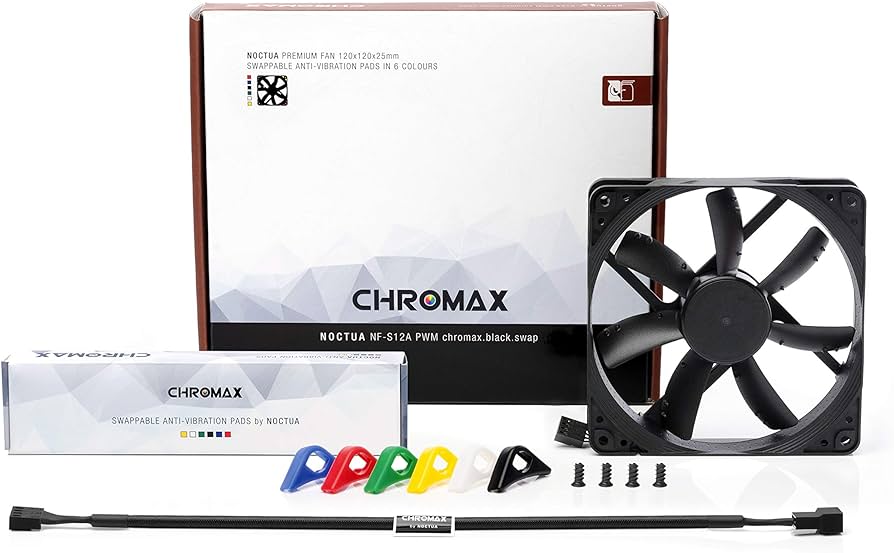

Scope of delivery
- 4x NA-AVP1 chromax.black anti-vibration pads
- 4x NA-AVP1 chromax.blue anti-vibration pads
- 4x NA-AVP1 chromax.green anti-vibration pads
- 4x NA-AVP1 chromax.red anti-vibration pads
- 4x NA-AVP1 chromax.white anti-vibration pads
- 4x NA-AVP1 chromax.yellow anti-vibration pads
- 4x fan screws
6 years
