FAN Specification
Size
92x92x25 mm
Mounting hole spacing
82,5x82,5 mm
4-pin PWM
Cable length
20cm + 30cm NA-EC1 extension cable
Bearing
Blade geometry
A-Series with Flow Acceleration Channels
Frame technology
Rotational speed (+/- 10%)
2000 RPM
Rotational speed with L.N.A. (+/- 10%)
1550 RPM
Min. rotational speed @ 20% PWM (+/-20%)
400 RPM
62,6 m³/h
Acoustical noise
22,8 dB(A)
Acoustical noise with L.N.A.
16,3 dB(A)
Static pressure
2,28 mm H₂O
Static pressure with L.N.A.
1,53 mm H₂O
Input power (typical)
1,12 W
Input power (max.)
1,2 W
Input current (typical)
0,09 A
Max. input current
0,1 A
Operating voltage
12 V
MTTF
> 150.000 h

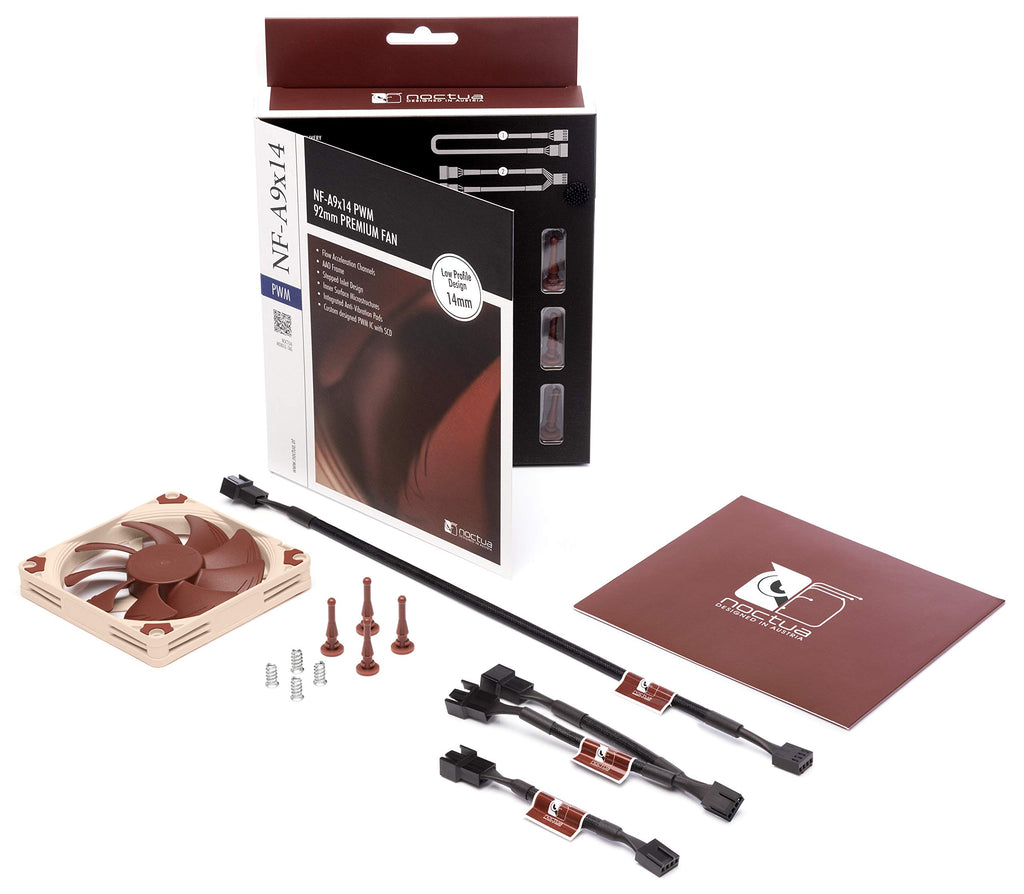

Scope of delivery
- Low-Noise Adaptor (L.N.A.)
- 4-Pin Y-Cable
- 30cm Extension Cable
- 4 Vibration-Compensators
- 4 Fan Screws
6 years
