描述
FAN Specification
Size
92x92x14 mm
Mounting hole spacing
82,5x82,5 mm
4-pin PWM
Cable length
1cm + 30cm NA-EC1 extension cable
Bearing
Blade geometry
A-Series with Flow Acceleration Channels
Frame technology
Rotational speed (+/- 10%)
2500 RPM
Min. rotational speed @ 20% PWM (+/-20%)
600 RPM
Acoustical noise
23,6 dB(A)
Static pressure
2,11 mm H₂O
Input power (typical)
1,848 W
Input power (max.)
2,52 W
Input current (typical)
0,154 A
Max. input current
0,21 A
Operating voltage
12 V
MTTF
> 150.000 h

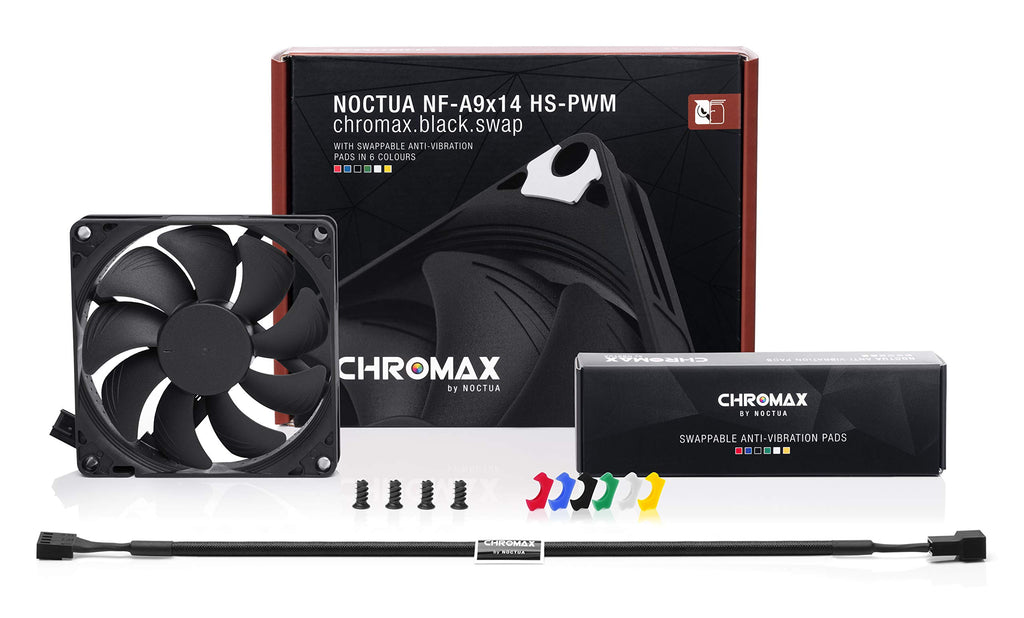

Scope of delivery

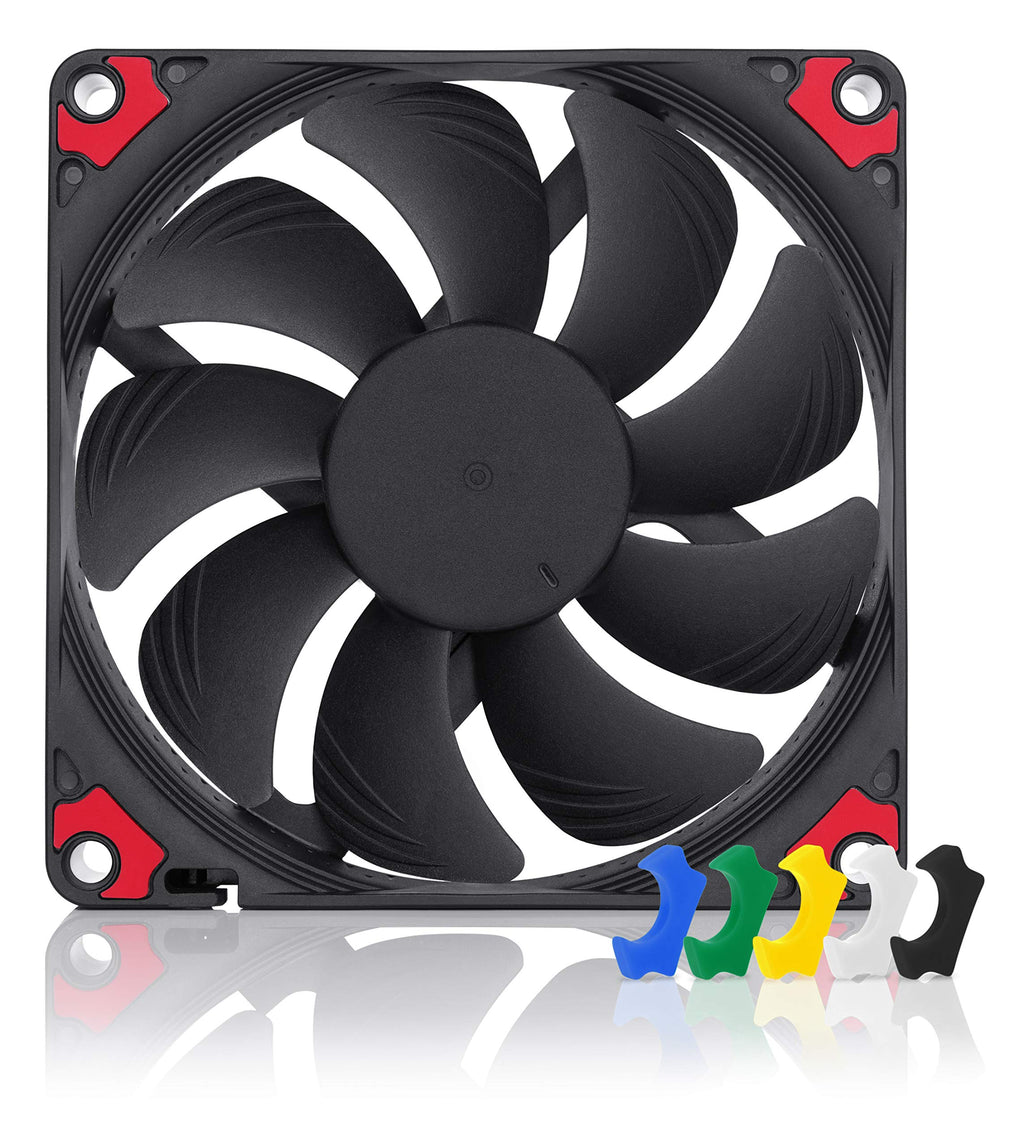

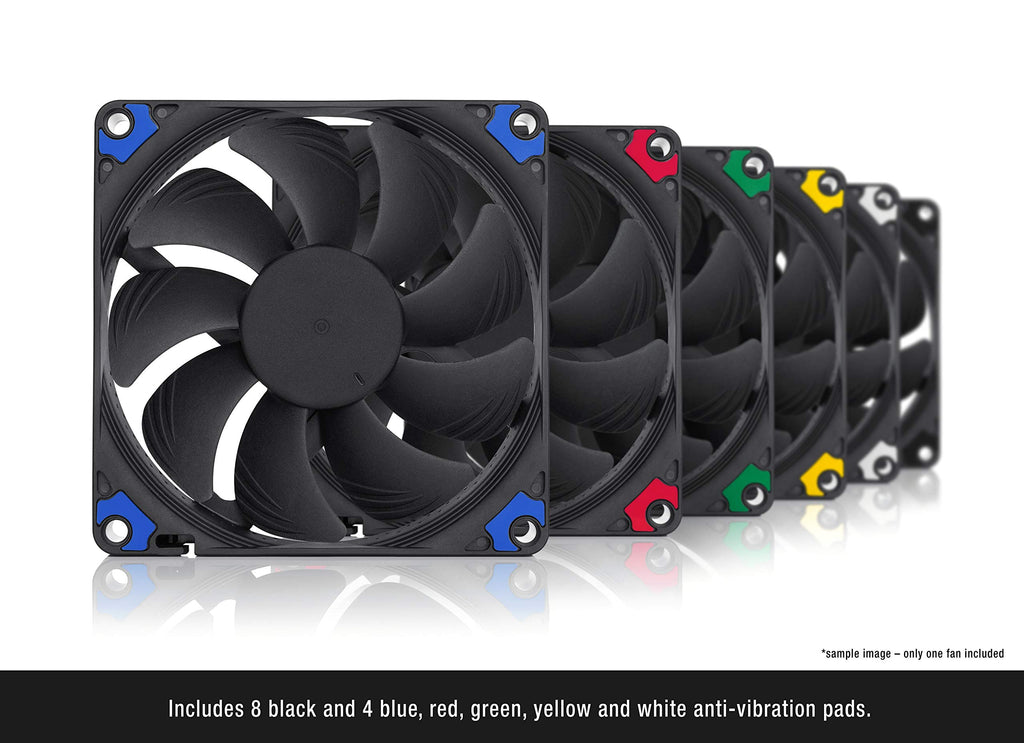

- 8x NA-AVP8 chromax.black anti-vibration pads
- 8x NA-AVP8 chromax.blue anti-vibration pads
- 8x NA-AVP8 chromax.green anti-vibration pads
- 8x NA-AVP8 chromax.red anti-vibration pads
- 8x NA-AVP8 chromax.white anti-vibration pads
- 8x NA-AVP8 chromax.yellow anti-vibration pads
- 4x fan screws
6 years
