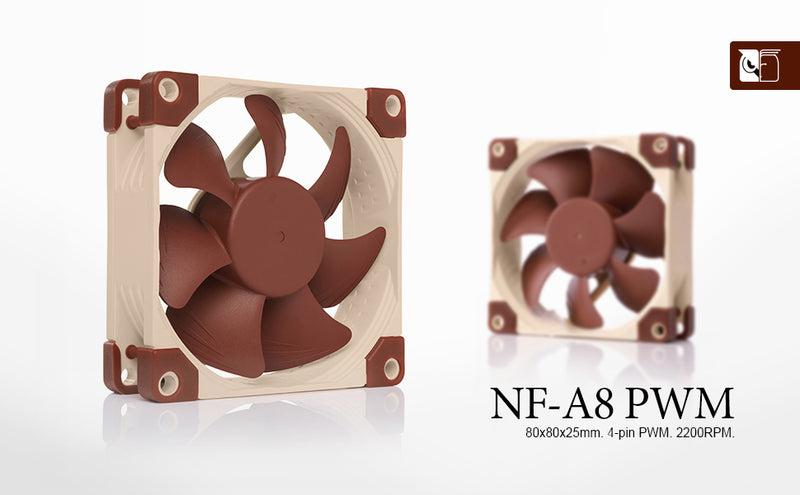

FAN Specification
Size
80x80x25 mm
Mounting hole spacing
71,5x71,5 mm
4-pin PWM
Cable length
20cm + 30cm NA-EC1 extension cable
Bearing
Blade geometry
A-Series with Flow Acceleration Channels
Frame technology
Rotational speed (+/- 10%)
2200 RPM
Rotational speed with L.N.A. (+/- 10%)
1750 RPM
Min. rotational speed @ 20% PWM (+/-20%)
450 RPM
43,9 m³/h
Acoustical noise
17,7 dB(A)
Acoustical noise with L.N.A.
13,8 dB(A)
Static pressure
2,37 mm H₂O
Static pressure with L.N.A.
1,54 mm H₂O
Input power (typical)
0,75 W
Input power (max.)
0,96 W
Input current (typical)
0,06 A
Max. input current
0,08 A
Operating voltage
12 V
MTTF
> 150.000 h
Scope of delivery
- Low-Noise Adaptor (L.N.A.)
- 4-Pin Y-Cable
- 30cm Extension Cable
- 4 Vibration-Compensators
- 4 Fan Screws
6 years
