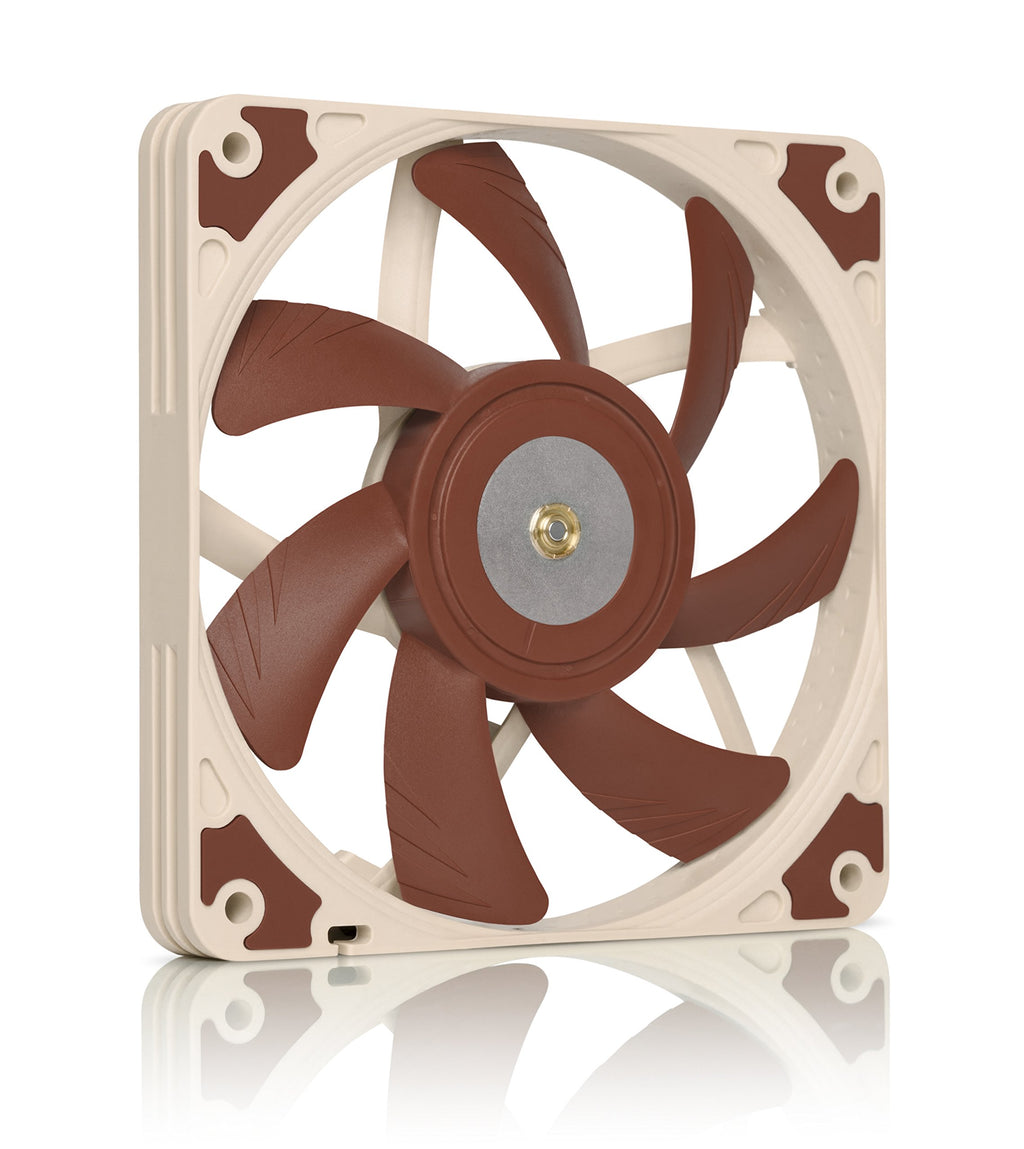

FAN Specification
Size
120x120x15 mm
Mounting hole spacing
105x105 mm
4-pin PWM
Cable length
20cm + 30cm NA-EC1 extension cable
Bearing
Blade geometry
A-Series with Flow Acceleration Channels
Frame technology
Rotational speed (+/- 10%)
1850 RPM
Rotational speed with L.N.A. (+/- 10%)
1400 RPM
Min. rotational speed @ 20% PWM (+/-20%)
450 RPM
70,8 m³/h
Acoustical noise
23,9 dB(A)
Acoustical noise with L.N.A.
16,8 dB(A)
Static pressure
1,53 mm H₂O
Static pressure with L.N.A.
0,9 mm H₂O
Input power (typical)
1,27 W
Input power (max.)
1,56 W
Input current (typical)
0,11 A
Max. input current
0,13 A
Operating voltage
12 V
MTTF
> 150.000 h
Scope of delivery
- Low-Noise Adaptor (L.N.A.)
- 4-pin y-cable
- 30cm extension cable
- NA-AV3 anti-vibration mounts
- Fan screws
6 years
