描述
| Model | M1 Pro-125H / M1 Pro-285H |
| Processor |
Intel® Core™ Ultra 5 125H, 14C / 16T, 4.5GHz Intel® Core™ Ultra 9 285H, 16C / 16T, 5.4GHz |
| Graphics | Intel® Arc™ graphics / Intel® Arc™ 140T GPU |
| Memory | DDR5 (SO-DIMM х 2) 5600Mhz / 6400MHz ,up to 128GB Pre-installed : 0GB / 32GB / 64GB / 96GB DDR5 |
| Storage | 2 x M.2 2280 NVME SSD Slot (up to 4TB) (PCIe4.0x4) Pre-installed : 0TB / 1TB / 2TB SSD |
|
LAN |
2.5Gigabit LAN (RJ-45) х 1 (intel i226-v) |
|
Wireless |
Wi-Fi 7 & Bluetooth® 5.4 |
|
Video Output |
HDMI (2.1) x 1 (Up to 4K@60Hz) (Support TMDS) DisplayPort (1.4) x 1 ((Up to 8K@60Hz / 4K@144Hz) USB 4 Type-C х 2 (Up to 8K@60Hz / 4K@144Hz) |
|
Audio Output |
HDMI x 1 3.5mm Combo Jack x 1 Speaker x 2 |
|
Audio Input |
DMIC x 2 3.5mm Combo Jack x 1 |
|

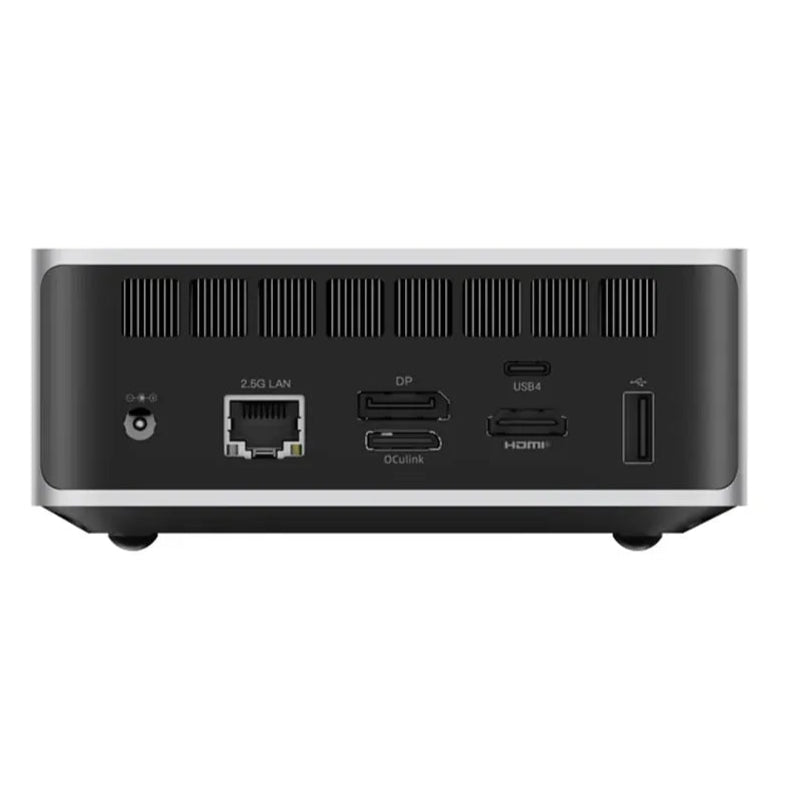

I/O Ports |
HDMI (2.1) x 1 DisplayPort (1.4) x 1 USB 4 x 1 (Alt PD,40 Gbps,Alt PD Out 15W) USB 4 x 1 (Alt PD,40 Gbps,PD in 65-100W,PD out 15W) USB USB 3.2 Gen 2 Type-A х 2 USB 2.0 x 1 OCuLink x 1 2.5Gigabit LAN (RJ-45) х 1 3.5mm combo Jack х 1 DC-in Port x 1 Reset Hole х 1 |
| Button / Hole | Power Button x 1 Reset Hole x 1 |
| VESA Mount | Support |
|
Power Adapter |
DC 19V, 6.32A (120W) |
|
Operating System |
Windows 11 Pro or None (barebone) |
|
Dimensions (L x W x H) |
128 x 126 x 52 mm |
|
Weight |
600 g |
