UPGRADED MODULARITY

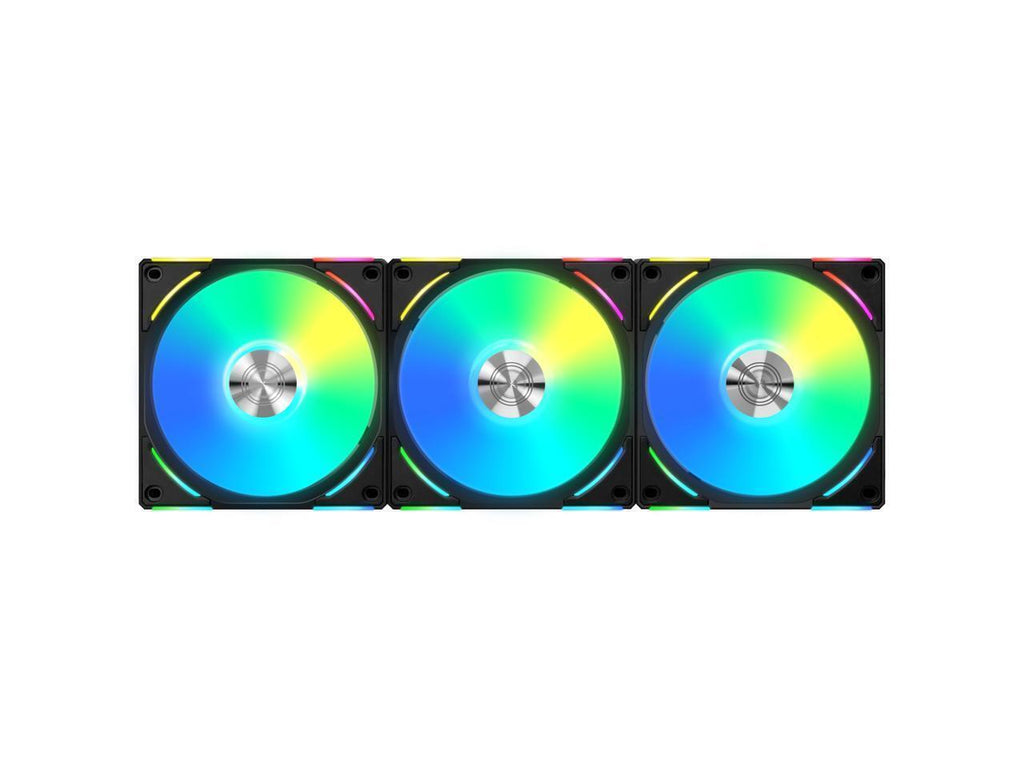

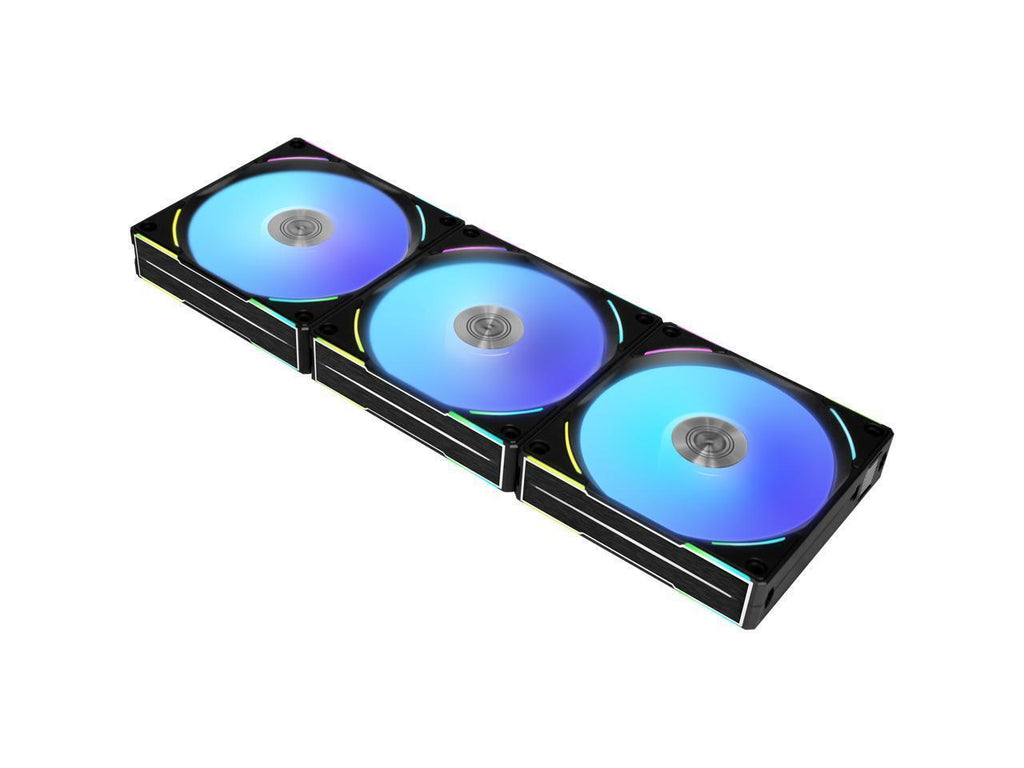

UNI FAN AL V2 features an interlocking system to connect up to 6 fans in two clusters to a single controller port, making fans installation and cable management a simple job.
SINGLE CABLE TO CONTROLLER
Combo of power and LED cable, reduce cable numbers.

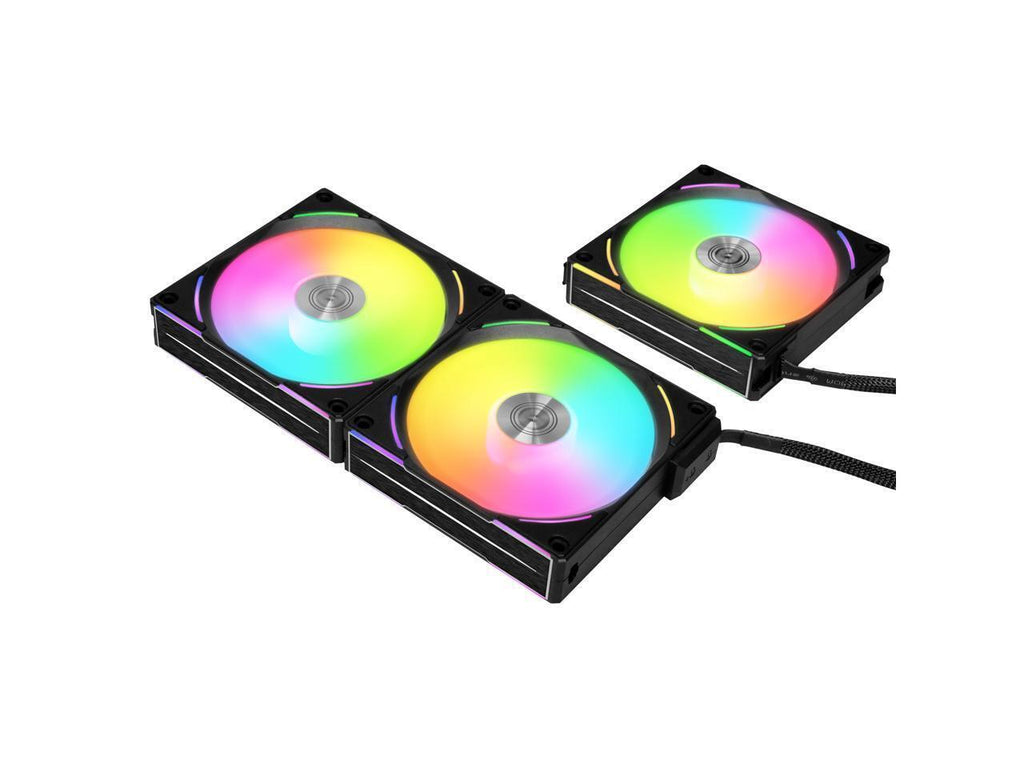

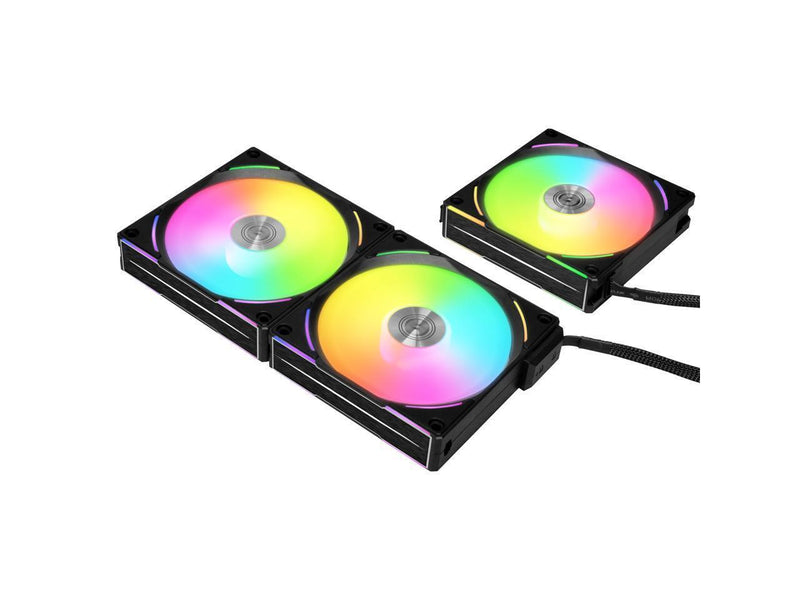

EXTENSION CABLE
Bridge 2 fan cluster, keep as minor cable as possible.
PLUG-IN POWER CABLE MODULE
Flush fan frame, reduce clearance issues.
SLIDE-IN MECHANISM
Pin-to-pad contact, daisy-chain the fan clusters simply.
REMOVABLE KEY
Remove the interlocking key to improving compatibility.
THICKER YET EASY TO INSTALL
The UNI FAN AL120 V2 has been amended to a slightly thicker frame of 28mm, and implements indented screw holes to fit standard 25mm long screws for installation.

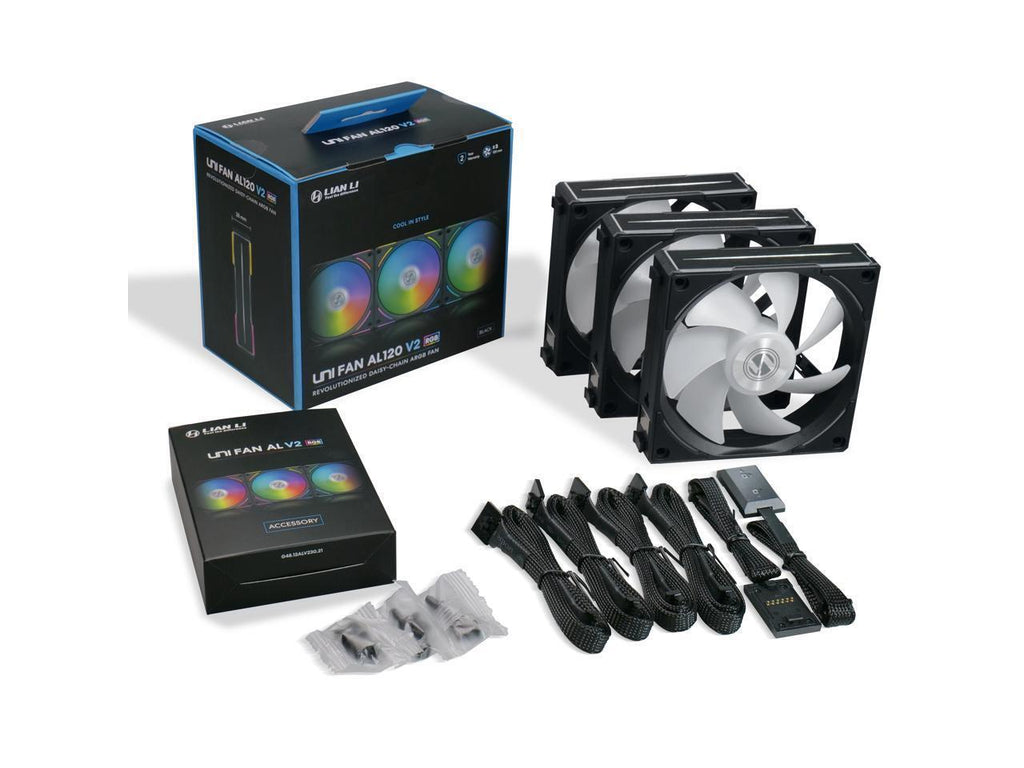

Note: The optional 33.8mm long screw set is provided for those who need to mount the UNI FAN AL120 V2 through a fan bracket used in a push-pull rad/fan combo.
ULTIMATE PERFORMANCE ARGB FAN
Running at peak performance while keeping low noise levels, the UNI FAN AL120 V2 is the best-performing ARGB fan within the entire UNI FAN lineup.
| MODEL | AIRFLOW | STATIC PRESSURE | NOISE | SPEED |
| AL120 V1 | 64.5 CFM | 2.62 mmH2O | 28.3 dB(A) | 800-1900 RPM |
| AL120 V2 | 77.3 CFM | 2.97 mmH20 | 28.7 dB(A) | 0, 250-2000 RPM |
| SL120 V2 | 64.5 CFM | 2.59 mmH2O | 29.2 dB(A) | 0, 250-2000 RPM |
| SLIN120 | 61.3 CFM | 2.66 mmH2O | 29.0 dB(A) | 0, 200-2100 RPM |
DURABLE DESIGN
THICKER IMPELLER
Increased thickness to 28mm for better efficiency
MAGNETIC FRAME
To provide extra support for fan blades
FLUID DYNAMIC BEARING (FDB)
To effectively reduce the internal friction for improved durability
CIRCLIP
To secure the fan blades in place
EXTRA MAGNETIC FORCE
To support the fan blades and reduce vibration levels, thus ensuring low noise levels while in operation
STATOR
To provide a rotating magnetic field that generates momentum
RUBBER PADS
To reduce vibrations and ensure extremely low noise levels
DAZZLING FROM ALL ANGLES
UNI FAN ALV2 has comprehensive lighting all around with independent control of the effects at the fan blades and fan frame, and combined lighting effects.
Sophisticated lighting on the fan blade glows the whole system.
The fine LED strips at the four corners of the fan frame and beside the aluminum sides can be set in different colors, creating an elegant look.
A ring of RGB is visible at the rear side, keeping it attractive no matter as intake or exhaust.
