Engineered for ultimate productivity and versatility, the Lenovo ThinkStation P5 is the all-around industry workhorse for professionals that demand a scalable, future-proof workstation. Optimized for designers, engineers, and creatives alike, it can support a broad range of compute-intensive tasks with ease, including BIM, complex 3D CAD, VFX, and edge deployments.
Extraordinary performance, power, & speed
With its Aston Martin-inspired chassis design and advanced thermals, the ThinkStation P5 workstation is designed to achieve groundbreaking performance. Key features include an Intel®Xeon®W-Series processor, delivering a breakthrough new compute architecture, and support for up to two optional NVIDIA® RTX™ graphics cards, offering unprecedented rendering and AI performance. The result? Enough punch for any workflow, even in mission-critical environments.
Monitor sold separately.
Tried, tested, & true
The ThinkStation P5 workstation has been proven to meet Lenovo’s exacting reliability and durability standards, ensuring that your systems leverage suitable uptime. It also boasts an array of independent software vendor (ISV) certifications, so compute-intensive applications, such as Adobe®and PTC®, are tuned to run seamlessly on even complex tasks.
With high-speed DDR5 memory and ultra-fast PCIe storage, the ThinkStation P5 workstation is designed to improve your productivity. It also has the convenience of front drive access, hot-swap storage, tool-less chassis access, and an array of high-performance configurations. As a result, you can enjoy the flexibility of customizing your P5 to tackle your workload needs of today, knowing you can easily upgrade for the ever-increasing datasets of tomorrow.
Monitors sold separately.
One less thing to worry about
The ThinkStation P5 comes with ThinkShield—a suite of essential hardware and software security solutions that work together to protect your workstation and data. Trusted Platform Module (TPM) encrypts your data, while ensuring that your machine has not been tampered with. There are also various programs to prevent unauthorized access to the BIOS—and even self-heal the BIOS should it become corrupted or is maliciously attacked.
Tech Specification
PERFORMANCE
Processor
Up to Intel vPro®with Intel® Xeon®W7-2595XProcessor with vPro™ (26 Cores, 2.8GHz, 75MB Cache, 250W)
Operating System
Windows 11 Pro for Workstations
Ubuntu Linux®*
Red Hat®Enterprise Linux®(certified)
*Select versions available via preload
Graphics
Optional: Choose up to 2 in total:
NVIDIA® RTX™ 4500 Ada (24GB GDDR6)
NVIDIA® RTX™ 4000 Ada (20GB GDDR6)
NVIDIA® RTX™ 2000 Ada (16GB GDDR6)
NVIDIA® RTX™ A6000 (48GB GDDR6)
NVIDIA® RTX™ A5500 (24GB GDDR6)
NVIDIA® RTX™ A4500 (20GB GDDR6)
NVIDIA® RTX™ A4000 (16GB GDDR6)
NVIDIA® RTX™ A2000 (12GB GDDR6)
NVIDIA® RTX™ A1000 (8GB GDDR6)
NVIDIA® T1000 (8GB GDDR6)
NVIDIA® T400 (4GB GDDR6)
Memory
Up to 512GB DDR5 RDIMM 4800MHz*
*4800MHz max speed; available depending on configuration
Storage
Up to 6 drives in total:
Supports up to 3 maximum, 4TB M.2 NVMe PCIe SSD
Supports up to 3 maximum, 12TB 3.5″ SATA 7200rpm
RAID
M.2 = 0 / 1 / 10 / 5*
SATA = 0 / 1 / 5*
* Available Summer 2023; additional hardware may be required
Audio
Realtek®
CONNECTIVITY
Ports/Slots
Front:
Headphone / mic combo
Optional: 2 x USB-A (USB 10Gbps, 1 always-on)
Optional: 2 x USB-C® (USB 10Gbps)

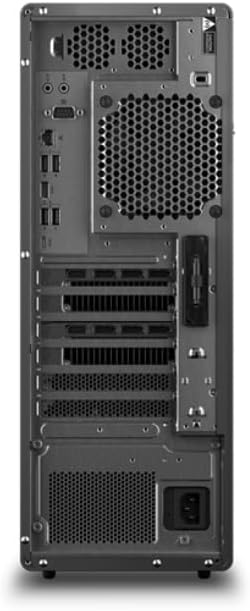

Rear:
2 x USB-A (Hi-Speed USB)
3 x USB-A (USB 10Gbps)*
USB-C® (USB 20Gbps)*
Line in
Line out
Ethernet (RJ45)
Optional: Serial
* USB port transfer speeds are approximate and depend on many factors, such as processing capability of host/peripheral devices, file attributes, system configuration and operating environments; actual speeds will vary and may be less than expected.
Wireless
Onboard Ethernet
Intel® Ethernet I219-LM
Internal WiFi Antenna
Optional Ethernet
Bitland RTL8168H 1000M PCIE Ethernet Adapter
Intel®I210-T1 Single Port Gigabit Ethernet Adapter
Intel®I350-T2 Dual Port Gigabit Ethernet Adapter
Intel®I350-T4 Quad Port Gigabit Ethernet Adapter
Intel®I550-T2 Ethernet Network Adapter
Intel®X710-DA2 Dual Port 10G Ethernet Network Adapter
Optional WLAN
Intel®WiFi 6E AX211 (2x2ax)* with vPro + Bluetooth®5.2
*6GHz WiFi 6E operation is dependent on the support of the operating system, routers/APs/gateways that support WiFi 6E, along with the regional regulatory certifications and spectrum allocation.
DESIGN
Dimensions (H x W x D)
440mm x 165mm x 453mm / 17.3″ x 6.5″ x 17.8″
Weight
Up to 19kg / 41.9lbs
Color
Black with iconic ThinkPad red components
SUSTAINABILITY
Material
System
65% post-consumer content (PCC) recycled plastic in Front and Rear Bezel
