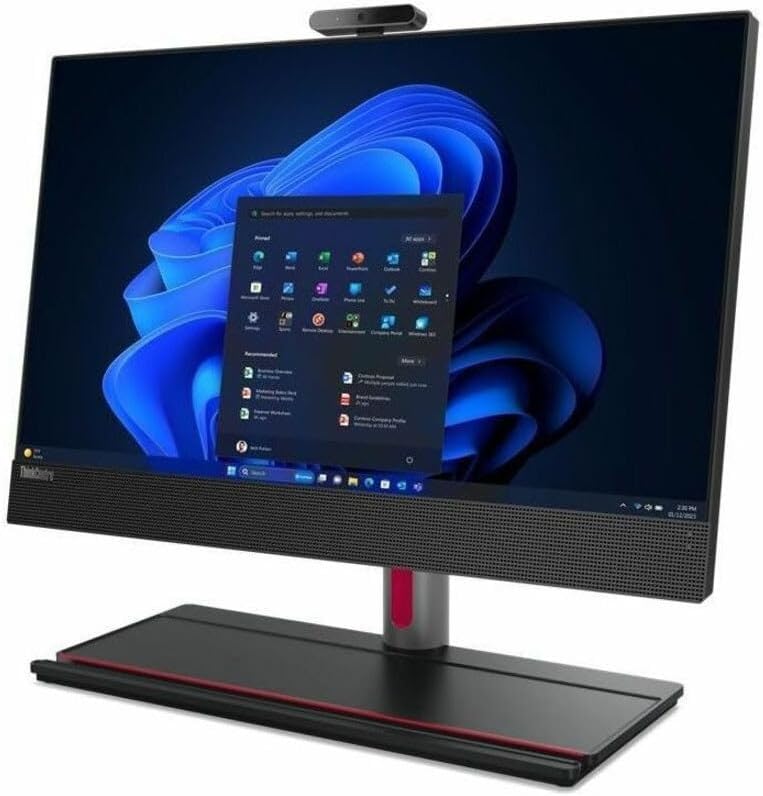

With its sleek design, the Lenovo ThinkCentre M90a Gen 5 all-in-one is a PC powerhouse. It runs on up to the Intel vPro® platform with 14th Gen Intel® Core™ processing muscle and boasts a stunning FHD display, with or without touchscreen. Plus, optional discrete graphics are ideal for video-editing or design work. Mounted on a choice of stands, including one that’s full function with adjustable tilt, lift, pivot, and swivel. And there’s even a docking space for your phone and keyboard to keep your workspace clutter-free.
A smarter way to work, by far
Thanks to our Intelligent Cooling Engine (ICE) 6.0, the ThinkCentre M90a Gen 5 all-in-one offers various power modes to meet your various computing needs. Choose a 15% power boost experience, a super quiet mode that cuts system noise by up to three decibels, or opt for maximum cooling. This cutting-edge PC also features optional smart human presence detection, enhancing both security and energy efficiency by recognizing when you're away from your machine.
Protecting your data, ideas, & more
Experience unparalleled peace of mind with ThinkShield, comprehensive security that comes with every ThinkCentre. The ThinkCentre M90a Gen 5 all-in-one PC leverages up to Intel vPro®for robust, hardware-enhanced device protection. Additional security measures include BIOS-based Smart USB Protection, and an optional physical shutter you can use to open and close the webcam, further safeguarding your privacy.
Because things happen
In addition to our stringent internal testing, the ThinkCentre M90a Gen 5 all-in-one PC has been evaluated against US Department of Defense's MIL-STD 810H standards and undergone more than 200 quality checks to confirm its ability to withstand extreme scenarios. These tests encompass a wide range of challenging factors, from the icy expanses of the Arctic tundra to dust-laden desert winds, including assessments for temperature, pressure, humidity, vibration, and beyond.
Built with the planet in mind
By 2025, Lenovo is committed to obtaining 90% of our global operations electricity from renewable sources, removing one-million tons of greenhouse gas emissions from our supply chain. It’s why this all-in-one PC, for instance, meets global standards for energy-efficiency and health & safety. And why it comes with 90% sustainable packaging and comprises recycled materials.
Tech Specification
PERFORMANCE
Processor
Up to Intel vPro® with 14th Gen Intel® Core™ i7
Operating System
Windows 11 Pro - Lenovo recommends Windows 11 Pro for business
Windows 11 Home
Graphics
Intel®UHD Graphics 770
Intel®UHD Graphics 730
Optional: NVIDIA®GeForce®MX570A 4GB GDDR6
Memory
Up to 64GB 5600Mhz, DDR5
Storage
Up to 4TB SSD for Intel®UHD Graphics model
Up to 2TB SSD for NVIDIA®GeForce®model
Audio
3W x 2 speakers with Dolby Atmos®
Camera
5M RGB non-tilt camera
5M RGB tilt camera
Optional 5M RGB tilt camera + radar
Dual-mic array for AI noise suppression
CONNECTIVITY
Ports/Slots
3 x USB-A (USB 10Gbps)
Optional: 3-in-1 card reader
Headphone / mic combo
USB-C®(USB 10Gbps, supports rapid charge)
3 x USB-A (USB 5Gbps, one supports USB power on)
DisplayPort 1.4 (out)
Ethernet (RJ45)
HDMI in 1.4 / out 2.1 combo (up to HDMI 2.1 TDMS)
Optional: Serial port
* USB port transfer speeds are approximate and depend on many factors, such as processing capability of host/peripheral devices, file attributes, system configuration and operating environments; actual speeds will vary and may be less than expected.
Wireless
Intel®WiFi 6E* 2x2 AX
Intel®WiFi 6 2x2 AX
*6GHz WiFi 6E operation is dependent on the support of the operating system, routers/APs/gateways that support WiFi 6E, along with the regional regulatory certifications and spectrum allocation.
Internal Bay
Optional: Slim Optical Disk Drive (ODD)
DESIGN
Display
23.8″ FHD (1920 x 1080) IPS, near edgeless, antiglare, 99% sRGB, 60Hz refresh rate, 1300:1 contrast ratio, low blue light (hardware controlled), 16.7M color support. 250cd/m2 brightness, 14ms response time
Optional: 23.8″ FHD (1920 x 1080) IPS, touchscreen, near edgeless, antiglare, 72% NTSC, 60Hz refresh rate, 1000:1 contrast ratio, low blue light, 16.7M color support. 250cd/m2 brightness, 14ms response time
Expansion Slot
M.2 for WiFi
2 x M.2 for PCIe Gen 4 SSD
Dimensions (H x W x D)
With Camera
Without stand: Starting from 371mm x 539.6mm x 49.6mm / 14.61″ x 21.24″ x 1.95″
With optional Full Function Monitor Stand: Starting from 393.66mm x 539.6mm x 217.31mm / 15.50″ x 21.24″ x 8.56″
With optional UltraFlex IV Stand: Starting from 227.54mm x 539.6mm x 216.31mm / 8.96″x 21.24″ x 8.52″
With optional Tilt Stand: 453.39mm x 539.6mm x 213.4mm / 17.85″ x 21.24″ x 8.4″
Without Camera
Without stand: Starting from 352mm x 539.6mm x 49.6mm / 13.86″ x 21.24″ x 1.95″
With optional Full Function Monitor Stand: Starting from 374.15mm x 539.6mm x 217.31mm / 14.73″ x 21.24″ x 8.56″
With optional UltraFlex IV Stand: Starting from 219.5mm x 539.6mm x 216.31mm / 8.64″ x 21.24″ x 8.52″
With optional Tilt Stand: 453.4mm x 539.6mm x 213.38mm / 17.85″ x 21.24″ x 8.4″
Weight
Without stand: Starting from 6.06 kg / 13.35lbs
With optional Full Function Monitor Stand: Starting from 8.05Kg / 17.74lbs
With optional UltraFlex IV Stand: Starting from 8.56kg / 18.86lbs
With optional Tilt Stand: Starting from 7.61kg / 16.78lbs
Color
Black
SUSTAINABILITY
Material
Low-temperature solder
90% recycled and/or sustainable packaging*
*On average, product packaging contains a minimum total percentage of 90% by weight of any combination of the following materials: recycled content, biobased plastic, non-wood biobased fiber material, and/or sustainably forested material.
Certifications / Registries
ENERGY STAR®8.0
EPEAT® Gold, where applicable*
TCO 9.0
TCO Certified Edge
RoHS
TÜV Rheinland certified Low Blue Light
TÜV Rheinland certified Flicker Free
TÜV Rheinland certified Eyesafe (non-touchscreen)
Ultra-Low Noise
12 MIL-SPEC
*Visit www.epeat.net for registration status by country.
OTHER INFORMATION
ThinkShield Security
Intel vPro®Enterprise
Optional: Human Presence Detection Sensor 2.0
BIOS-based Smart USB Protection
Intel®Context Sensing Technology (Intel®CST)
Discrete Trusted Platform Module (dTPM) 2.0
EC Self-healing (level 1)
Optional: Intrusion switch
Webcam privacy shutter
Kensington Security Slot™
Windows Hello
Display Stand
Optional: Full Function Monitor Stand
Tilt: -5 to 20 degrees
Lift: 110mm
Pivot: 90 degrees
Swivel: 90 degrees, 45 degrees left and 45 degrees right
Optional: UltraFlex IV Stand
Tilt: -5 to 70 degrees
Lift: 70 degrees ± 2° with vertical lift range of 84.37mm
Optional: Tilt Stand
Tilt: -5 to 20 degrees
Mounting Options
Without stand
Optional: Full Function Monitor Stand
Optional: UltraFlex IV Stand
Optional: Tilt Stand
What’s in the Box
ThinkCentre M90a Gen 5 (24″ Intel)
Up to 230W power supply unit
Quick Start Guide
