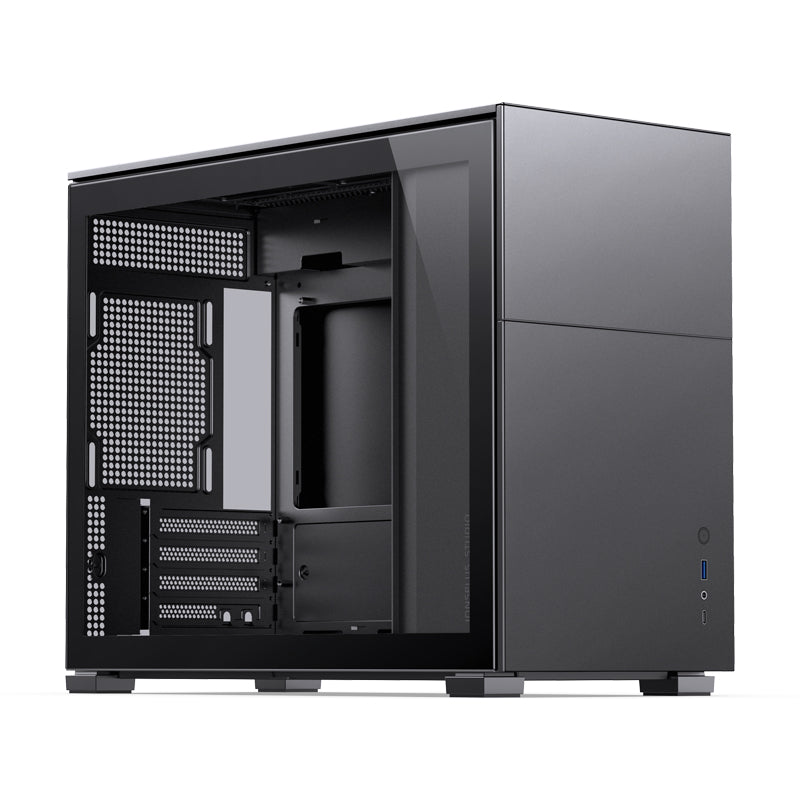

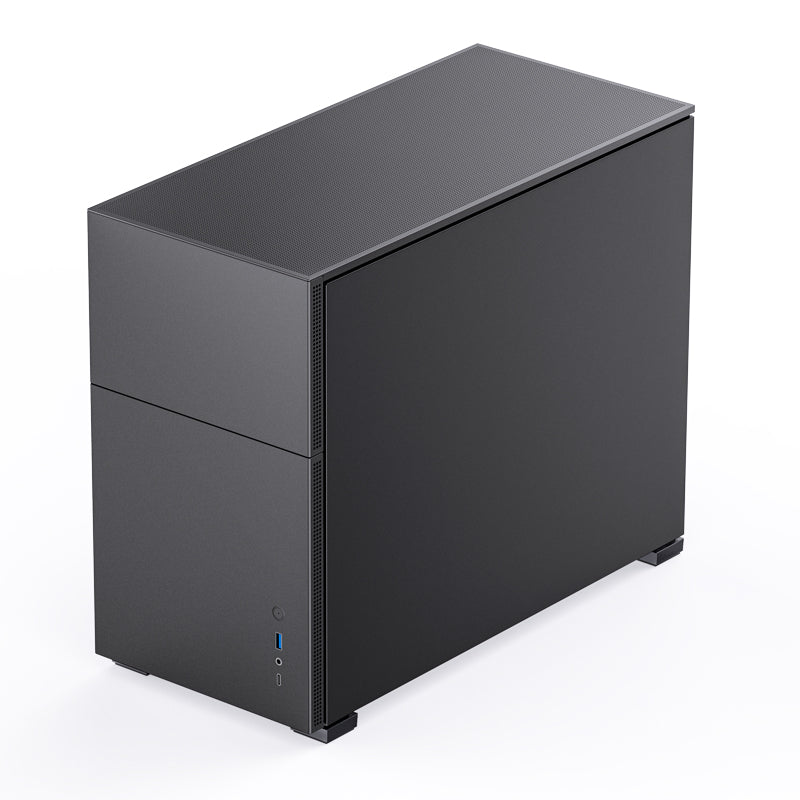

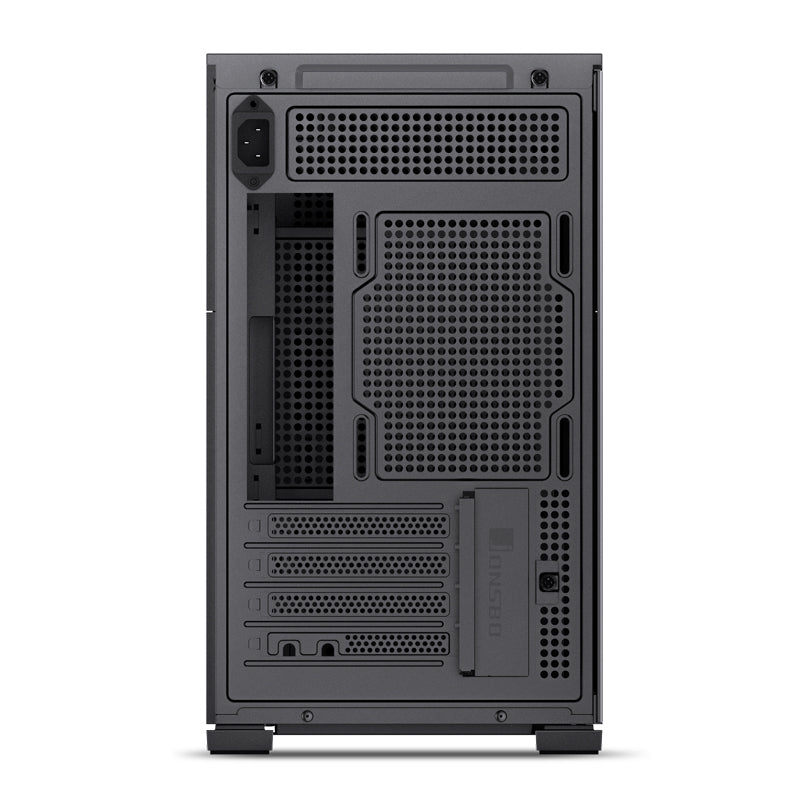

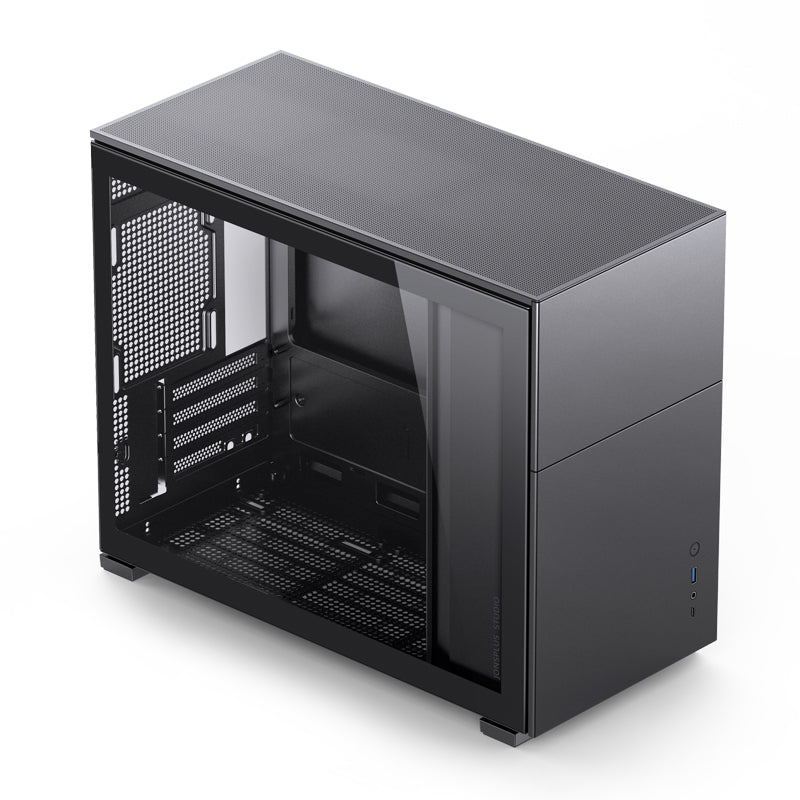

JONSBO D31 STD Black 黑色 Tempered Glass ATX Case



Model:D31 STD Black

Dimension: 205mm (W) * 347.5mm(H) *440mm(D) (Vol: 31.3L)

                *Depth does not include the PCI brackets outside the chassis, height does not include case stand

                 205mm (W) * 363mm(H) * 452mm(D) (overall size)

Material:0.6mm+0.7mm steel panel

Drive Bay:2.5〞SSD*2+3.5〞HDD*1

Motherboard:ITX / DTX / M-ATX

PCI expansion slots:4

Front I/O:USB3.2 Gen 2 Type-C*1 / USB3.0*1/Audio & Mic*1

Power supply support:ATX

CPU cooler support:168mm

Graphics card support:330-400mm

Fan mounting position:Top 120mm*3 or 140mm*2       Rear 120*1mm       Bottom 120mm*3 or 140mm*2       Front 120mm*1

Radiator support: Top 240/280/360*1                         Rear 120*1             Bottom 240/360*1

Weight:Net 5.9KG
