描述

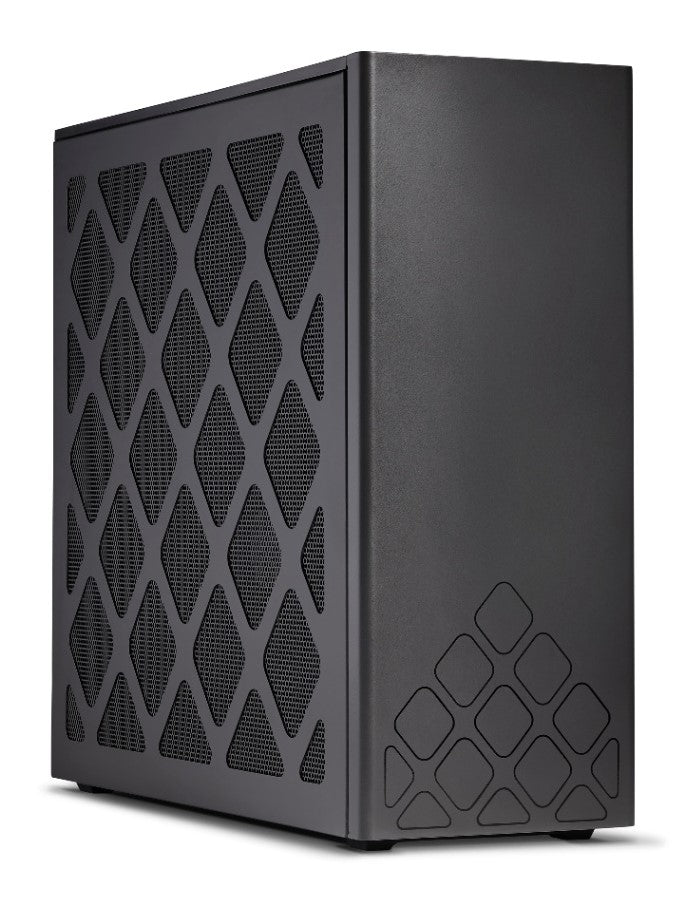

Intel® NUC Kit with 13th Generation Intel® Core™ Processors
Code Name
Processor Included
Discrete Graphics
Supports PCIe x16 Gen5 3-slot wide GPU
Board Number
NUC13SBBi5
Board Chipset
Supported Operating Systems
Windows 11, 64-bit*
Supplemental Information
Warranty Period
3 yrs
CPU Specifications
Total Cores
14
Total Threads
20
Max Turbo Frequency
5.10 GHz
Memory & Storage
Max Memory Size (dependent on memory type)
64 GB
# of Memory Slots
2
Memory Types
DDR5 SODIMM
Max # of Memory Channels
2
ECC Memory Supported ‡
No
# of Internal Drives Supported
5
M.2 Card Slot (storage)
2x via PCH + 1x via CPU (NVMe)
I/O Specifications
Graphics Output
2x Thunderbolt 4, HDMI 2.1 TMDS compatible (4K60)
# of Displays Supported ‡
3
# of Thunderbolt™ Ports
2x Thunderbolt™ 4
# of USB Ports
11
USB Configuration
Rear: 6x USB 3.2g2, 2x TB4 (USB4); Front: 2x USB 3.2g1 Type-A, USB 3.2g2x2 Type-C
USB Revision
3.2 Gen1, Gen2, Gen2x2, USB4
Total # of SATA Ports
4
Max # of SATA 6.0 Gb/s Ports
4
RAID Configuration
RAID-0 or RAID-1
Audio (back channel + front channel)
(R) 7.1 digital, 3x 3.5mm + (F) 3.5mm
Integrated LAN
10GbE (AQC113) + Intel® i226-V
Wireless Included
Intel® Killer™ Wi-Fi 6E AX1690 (i/s)
Bluetooth Version
5.3
M.2 Card Slot (wireless)
Killer™ Wi-Fi 6E AX1690i
Additional Headers
FRONT_PANEL
Expansion Options
PCI Express Revision
Gen5, Gen4
Package Specifications
TDP
125 W
Chassis Dimensions
337 x 318 x 129mm
Board Form Factor
PCIe
Advanced Technologies
Intel® Rapid Storage Technology
Yes
Intel® Optane™ Memory Supported ‡
Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡
Yes
Intel® Virtualization Technology (VT-x) ‡
Yes
Security & Reliability
Intel® Platform Trust Technology (Intel® PTT)
Yes
Intel® AES New Instructions
Yes
