描述

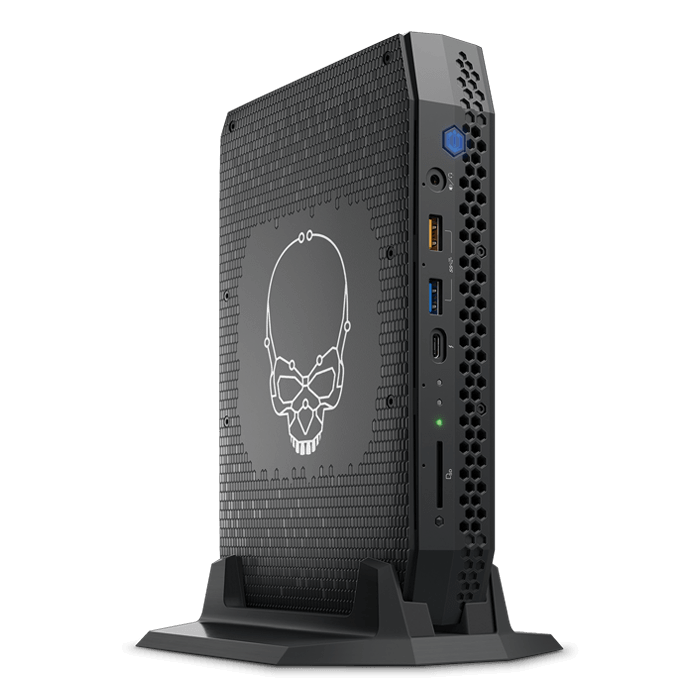

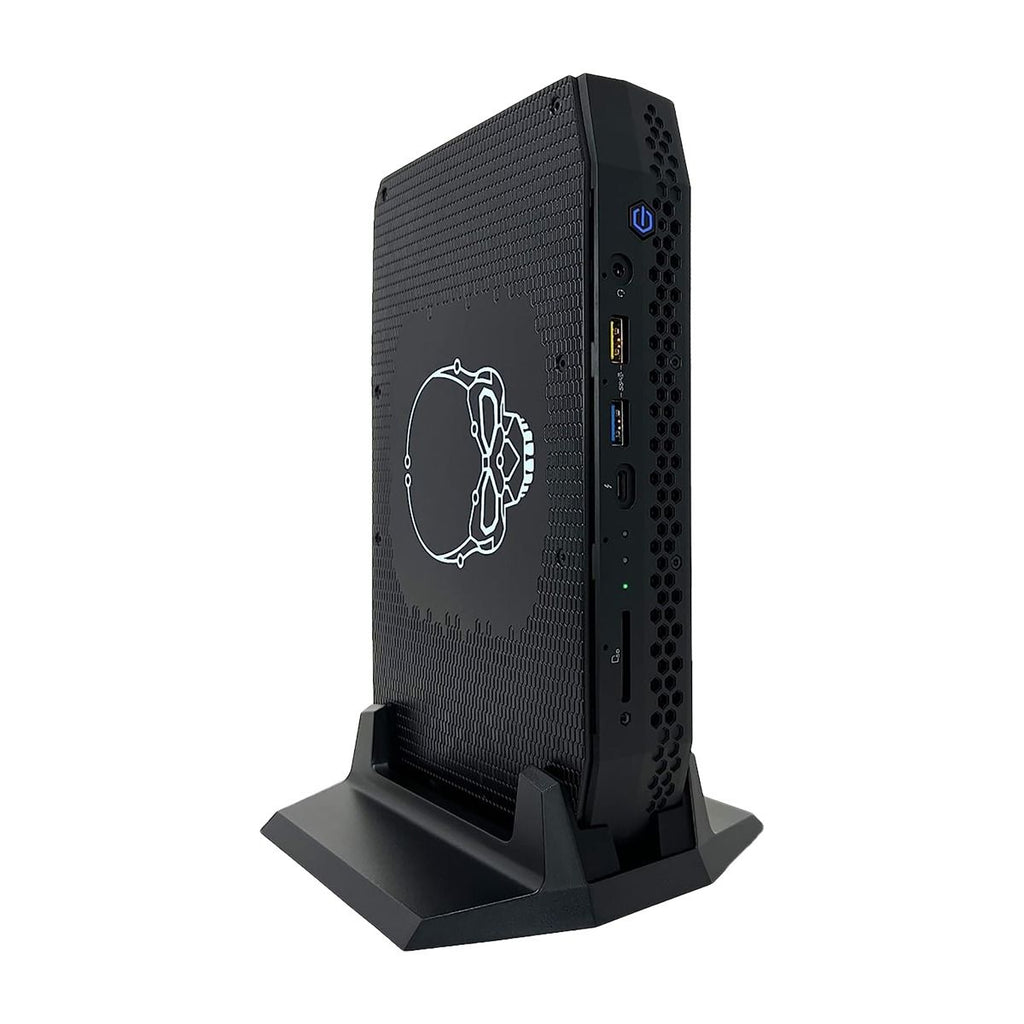

Intel® NUC Kit with 11th Generation Intel® Core™ Processors
Code Name
Processor Included
Discrete Graphics
Nvidia Geforce RTX 2060
Board Number
NUC11PHBi7
Supported Operating Systems
Windows 11, 64-bit*, Windows 10, 64-bit*
Use Conditions
PC/Client/Tablet
Supplemental Information
Warranty Period
3 yrs
Description
NVIDIA RTX 2060 w/ 6GB VRAM included.
Other features: Includes far-field quad array microphones, PC Stand for vertical operating orientation, VESA mounting plate, RGB-backlit logo with replaceable mask.
Other features: Includes far-field quad array microphones, PC Stand for vertical operating orientation, VESA mounting plate, RGB-backlit logo with replaceable mask.
Additional Information
CPU Specifications
Total Cores
4
Total Threads
8
Max Turbo Frequency
4.70 GHz
Memory & Storage
Max Memory Size (dependent on memory type)
64 GB
# of Memory Slots
2
Memory Types
DDR4-3200 1.2V SO-DIMM
Max # of Memory Channels
2
Max Memory Bandwidth
51.2 GB/s
ECC Memory Supported ‡
No
Internal Drive Form Factor
M.2 SSD
# of Internal Drives Supported
2
Removable Memory Card Slot
SDXC with UHS-II support
M.2 Card Slot (storage)
22x80; 22x80,110
I/O Specifications
Graphics Output
2x TBT4; HDMI 2.0a; mDP 1.4
# of Displays Supported ‡
4
# of Thunderbolt™ Ports
2x Thunderbolt™ 4
# of USB Ports
10
USB Configuration
3x front (2x Type-A, 1x Type-C) and 5x rear (4x Type-A, 1x Type-C); 2x USB 2.0 via internal headers
USB Revision
2.0, 3.2 Gen2
USB 2.0 Configuration (External + Internal)
2
USB 3.0 Configuration (External + Internal)
8
Total # of SATA Ports
1
Max # of SATA 6.0 Gb/s Ports
1
Audio (back channel + front channel)
7.1 digital; L+R+mic (F); L+R+TOSLINK (R)
S/PDIF Out Connector
TOSLINK
Integrated LAN
Intel® Ethernet Connection i225-LM
Wireless Included
Intel® Wi-Fi 6 AX201 (Gig+)
Bluetooth Version
5.2
Consumer Infrared Rx Sensor
Yes
Expansion Options
PCI Express Revision
Gen3
PCI Express Configurations ‡
Dual M.2 slots with PCIe x4 lanes
Package Specifications
TDP
150 W
DC Input Voltage Supported
19.5 VDC
Board Form Factor
UCFF (5.5" x 8")
Advanced Technologies
Intel® HD Audio Technology
Yes
Intel® Rapid Storage Technology
Yes
Intel® Optane™ Memory Supported ‡
Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡
Yes
Security & Reliability
Intel® Platform Trust Technology (Intel® PTT)
Yes
TPM
No
