Essentials
-
Product CollectionIntel® Core™ i7 Processors (14th gen)
-
Code NameProducts formerly Raptor Lake
-
Vertical SegmentDesktop
-

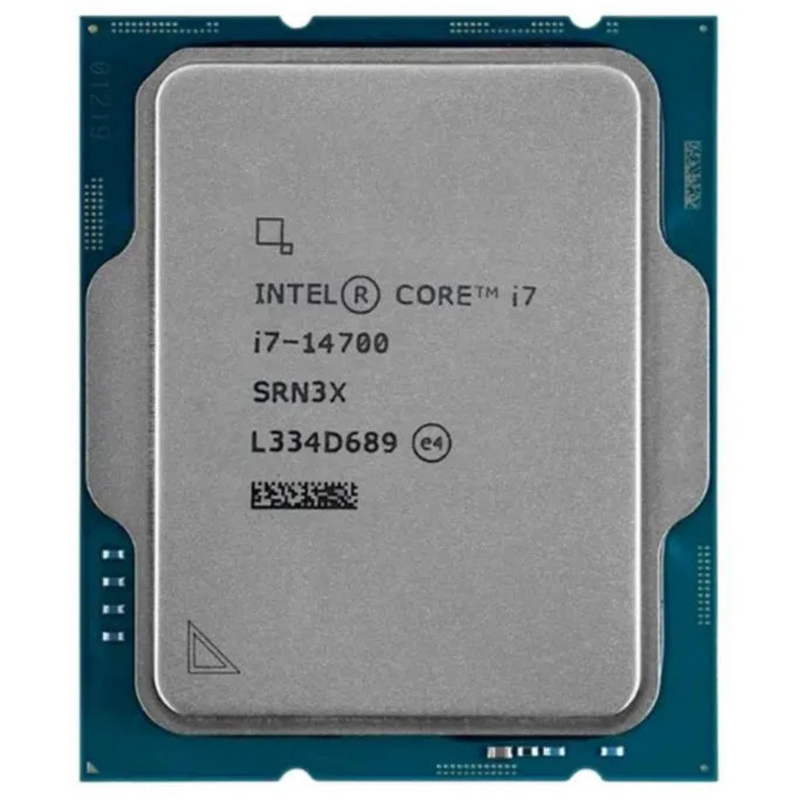

Processor Numberi7-14700
-
LithographyIntel 7
- Use ConditionsPC/Client/Tablet, Workstation
CPU Specifications
-
Total Cores20
-
# of Performance-cores8
-
# of Efficient-cores12
-
Total Threads28
-
Max Turbo Frequency5.4 GHz
-
Intel® Turbo Boost Max Technology 3.0 Frequency ‡5.4 GHz
-
Performance-core Max Turbo Frequency5.3 GHz
-
Efficient-core Max Turbo Frequency4.2 GHz
-
Performance-core Base Frequency2.1 GHz
-
Efficient-core Base Frequency1.5 GHz
-
Cache33 MB Intel® Smart Cache
-
Total L2 Cache28 MB
-
Processor Base Power65 W
-
Maximum Turbo Power219 W
Supplemental Information
-
Marketing StatusLaunched
-
Launch DateQ1'24
-
Embedded Options AvailableYes
Memory Specifications
-
Max Memory Size (dependent on memory type)192 GB
-
Memory TypesUp to DDR5 5600 MT/s
Up to DDR4 3200 MT/s
-
Max # of Memory Channels2
-
Max Memory Bandwidth89.6 GB/s
-
ECC Memory Supported ‡Yes
GPU Specifications
-
GPU Name‡Intel® UHD Graphics 770
-
Graphics Base Frequency300 GHz
-
Graphics Max Dynamic Frequency1.6 GHz
-
Graphics OutputeDP 1.4b, DP 1.4a, HDMI 2.1
-
Execution Units32
-
Max Resolution (HDMI)‡4096 x 2160 @ 60Hz
-
Max Resolution (DP)‡7680 x 4320 @ 60Hz
-
Max Resolution (eDP - Integrated Flat Panel)‡5120 x 3200 @ 120Hz
-
DirectX* Support12
-
OpenGL* Support4.5
-
OpenCL* Support3.0
-
Multi-Format Codec Engines2
-
Intel® Quick Sync VideoYes
-
Intel® Clear Video HD TechnologyYes
-
# of Displays Supported ‡4
-
Device ID0xA780
Expansion Options
-
Direct Media Interface (DMI) Revision4.0
-
Max # of DMI Lanes8
-
Scalability1S Only
-
PCI Express Revision5.0 and 4.0
-
PCI Express Configurations ‡Up to 1x16+4, 2x8+4
-
Max # of PCI Express Lanes20
Package Specifications
-
Sockets SupportedFCLGA1700
-
Max CPU Configuration1
-
Thermal Solution SpecificationPCG 2020C
-
TJUNCTION100°C
-
Package Size45.0 mm x 37.5 mm
Advanced Technologies
-
Intel® Gaussian & Neural Accelerator3.0
-
Intel® Thread DirectorYes
-
Intel® Deep Learning Boost (Intel® DL Boost) on CPUYes
-
Intel® Speed Shift TechnologyYes
-
Intel® Turbo Boost Max Technology 3.0 ‡Yes
-
Intel® Turbo Boost Technology ‡2.0
-
Intel® Hyper-Threading Technology ‡Yes
-
Intel® 64 ‡Yes
-
Instruction Set64-bit
-
Instruction Set ExtensionsIntel® SSE4.1, Intel® SSE4.2, Intel® AVX2
-
Idle StatesYes
-
Enhanced Intel SpeedStep® TechnologyYes
-
Thermal Monitoring TechnologiesYes
-
Intel® Volume Management Device (VMD)Yes
Security & Reliability
-
Intel® Standard Manageability (ISM) ‡Yes
-
Intel® Control-Flow Enforcement TechnologyYes
-
Intel® AES New InstructionsYes
-
Secure KeyYes
-
Intel® OS GuardYes
-
Execute Disable Bit ‡Yes
-
Intel® Boot GuardYes
-
Mode-based Execute Control (MBEC)Yes
-
Intel® Virtualization Technology (VT-x) ‡Yes
-
Intel® Virtualization Technology for Directed I/O (VT-d) ‡Yes
- Intel® VT-x with Extended Page Tables (EPT) ‡Yes
