Product Collection12th Generation Intel® Core™ i5 Processors
-
Code NameProducts formerly Alder Lake
-
Vertical SegmentDesktop
-

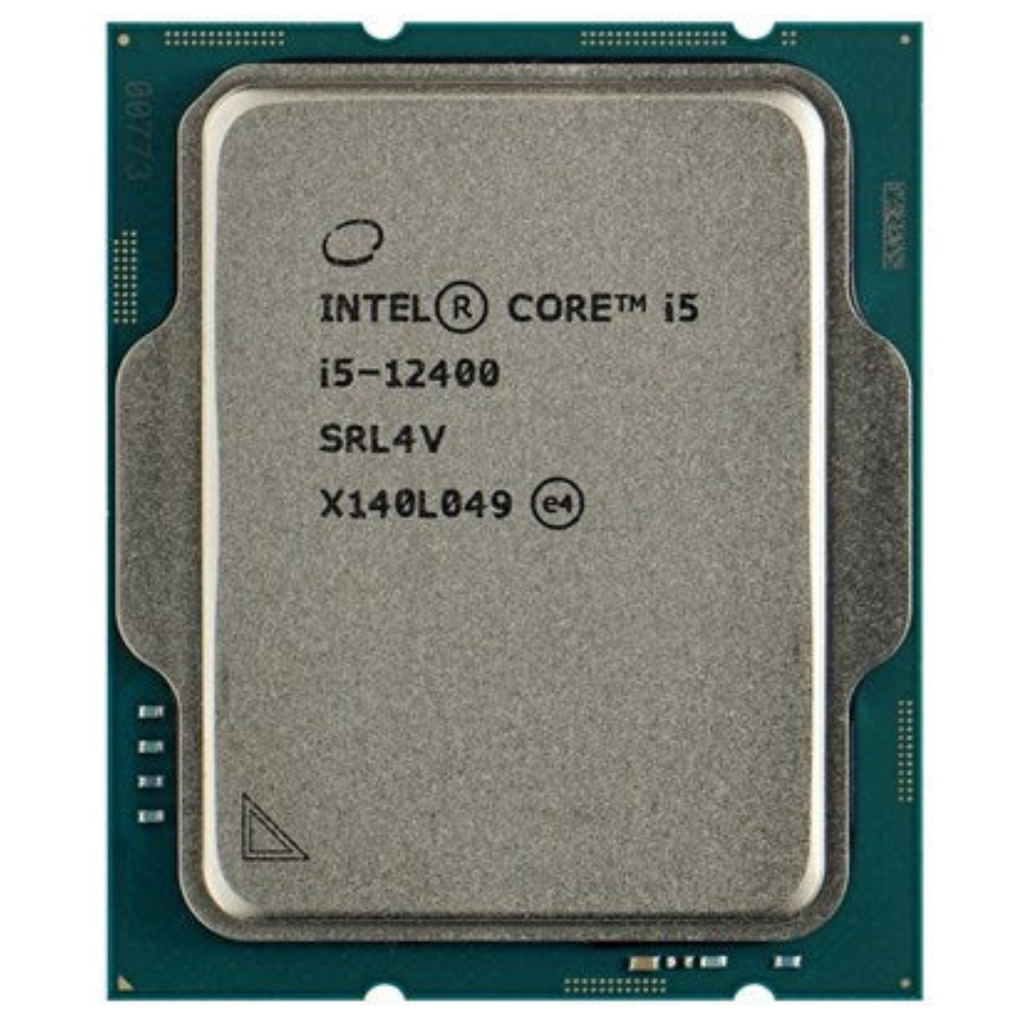

Processor Numberi5-12400
-
LithographyIntel 7
- Use ConditionsPC/Client/Tablet
CPU Specifications
-
Total Cores6
-
# of Performance-cores6
-
# of Efficient-cores0
-
Total Threads12
-
Max Turbo Frequency4.40 GHz
-
Performance-core Max Turbo Frequency4.40 GHz
-
Performance-core Base Frequency2.50 GHz
-
Cache18 MB Intel® Smart Cache
-
Total L2 Cache7.5 MB
-
Processor Base Power65 W
-
Maximum Turbo Power117 W
Supplemental Information
-
Marketing StatusLaunched
-
Launch DateQ1'22
-
Embedded Options AvailableYes
-
DatasheetView now
Memory Specifications
-
Max Memory Size (dependent on memory type)128 GB
-
Memory TypesUp to DDR5 4800 MT/s
Up to DDR4 3200 MT/s
-
Max # of Memory Channels2
-
Max Memory Bandwidth76.8 GB/s
Processor Graphics
-
Processor Graphics ‡Intel® UHD Graphics 730
-
Graphics Base Frequency300 MHz
-
Graphics Max Dynamic Frequency1.45 GHz
-
Graphics OutputeDP 1.4b, DP 1.4a, HDMI 2.1
-
Execution Units24
-
Max Resolution (HDMI)‡4096 x 2160 @ 60Hz
-
Max Resolution (DP)‡7680 x 4320 @ 60Hz
-
Max Resolution (eDP - Integrated Flat Panel)‡5120 x 3200 @ 120Hz
-
DirectX* Support12
-
OpenGL* Support4.5
-
OpenCL* Support3.0
-
Multi-Format Codec Engines1
-
Intel® Quick Sync VideoYes
-
Intel® Clear Video HD TechnologyYes
-
# of Displays Supported ‡4
-
Device ID0x4692 / 0x4682
Expansion Options
-
Direct Media Interface (DMI) Revision4.0
-
Max # of DMI Lanes8
-
Scalability1S Only
-
PCI Express Revision5.0 and 4.0
-
PCI Express Configurations ‡Up to 1x16+4, 2x8+4
-
Max # of PCI Express Lanes20
Package Specifications
-
Sockets SupportedFCLGA1700
-
Max CPU Configuration1
-
Thermal Solution SpecificationPCG 2020C
-
TJUNCTION100°C
-
Package Size45.0 mm x 37.5 mm
Advanced Technologies
-
Intel® Gaussian & Neural Accelerator3.0
-
Intel® Thread DirectorNo
-
Intel® Deep Learning Boost (Intel® DL Boost)Yes
-
Intel® Optane™ Memory Supported ‡Yes
-
Intel® Speed Shift TechnologyYes
-
Intel® Turbo Boost Max Technology 3.0 ‡No
-
Intel® Turbo Boost Technology ‡2.0
-
Intel® Hyper-Threading Technology ‡Yes
-
Intel® 64 ‡Yes
-
Instruction Set64-bit
-
Instruction Set ExtensionsIntel® SSE4.1, Intel® SSE4.2, Intel® AVX2
-
Idle StatesYes
-
Enhanced Intel SpeedStep® TechnologyYes
-
Thermal Monitoring TechnologiesYes
-
Intel® Volume Management Device (VMD)Yes
Security & Reliability
-
Intel® Threat Detection Technology (TDT)Yes
-
Intel® Standard Manageability (ISM) ‡Yes
-
Intel® Control-Flow Enforcement TechnologyYes
-
Intel® AES New InstructionsYes
-
Secure KeyYes
-
Intel® OS GuardYes
-
Execute Disable Bit ‡Yes
-
Intel® Boot GuardYes
-
Mode-based Execute Control (MBEC)Yes
-
Intel® Virtualization Technology (VT-x) ‡Yes
-
Intel® Virtualization Technology for Directed I/O (VT-d) ‡Yes
- Intel® VT-x with Extended Page Tables (EPT) ‡Yes
