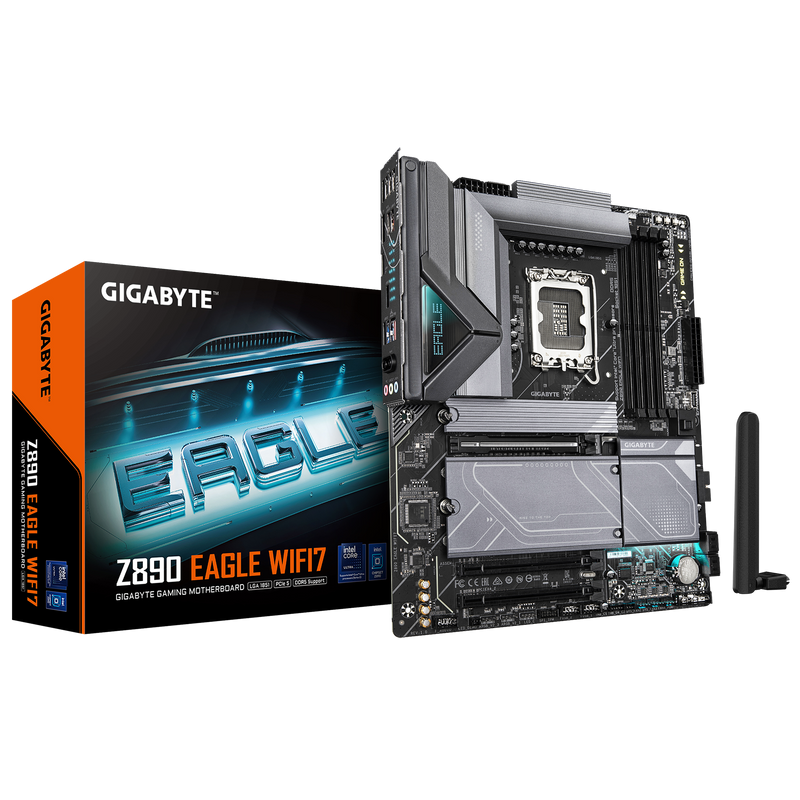

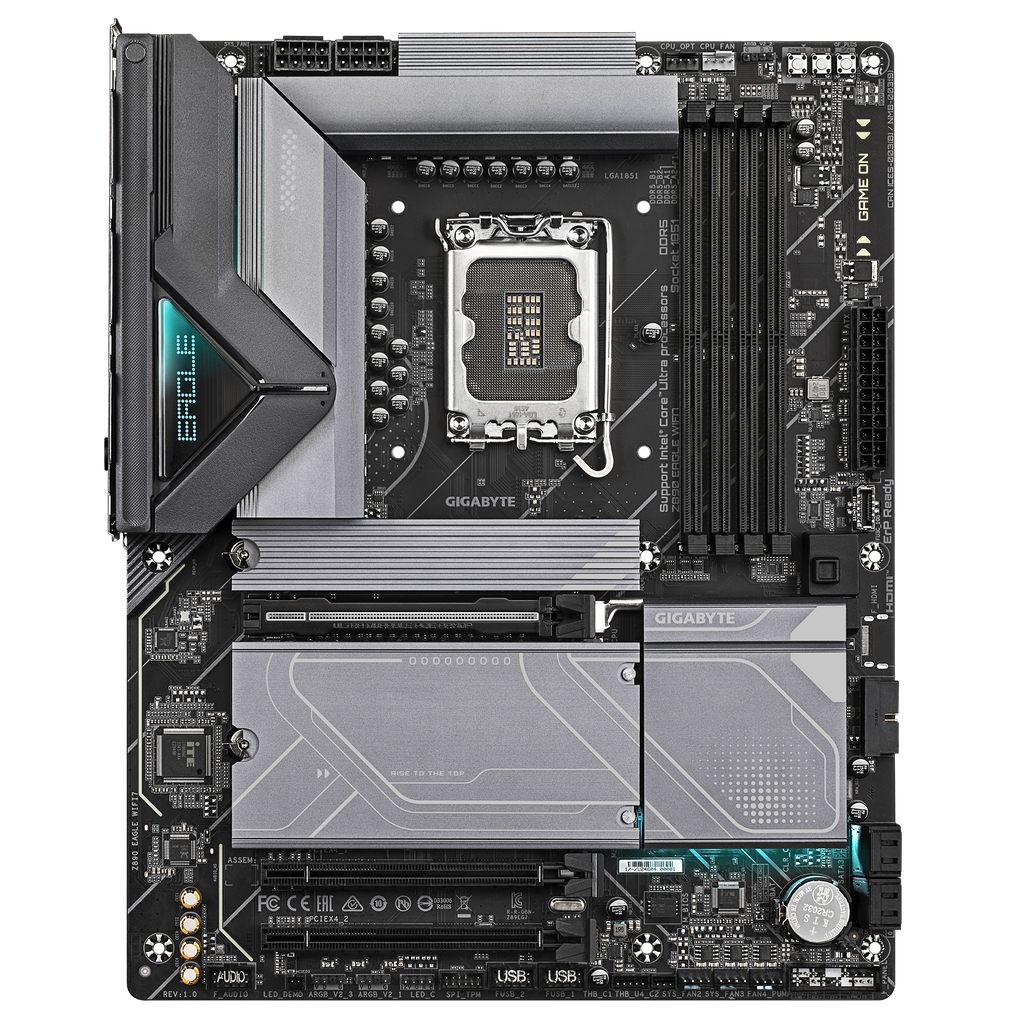

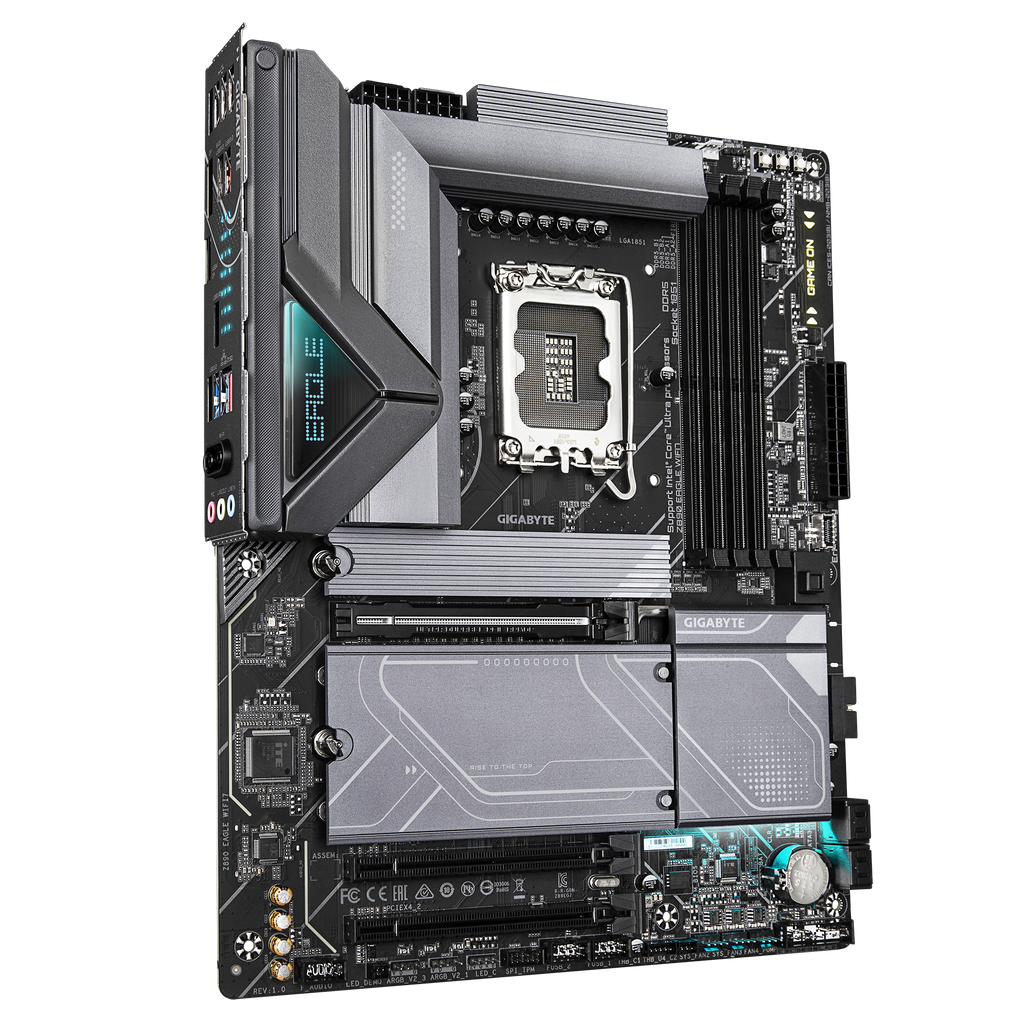

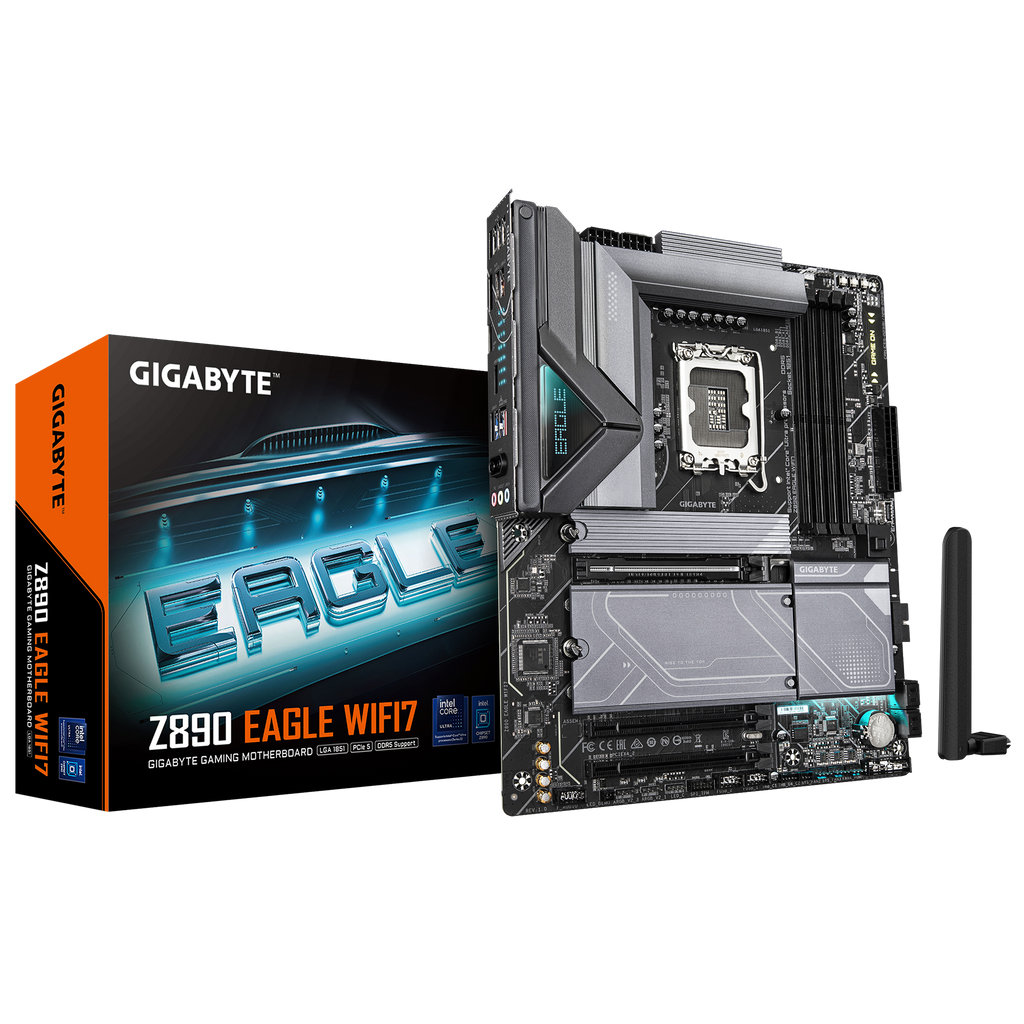

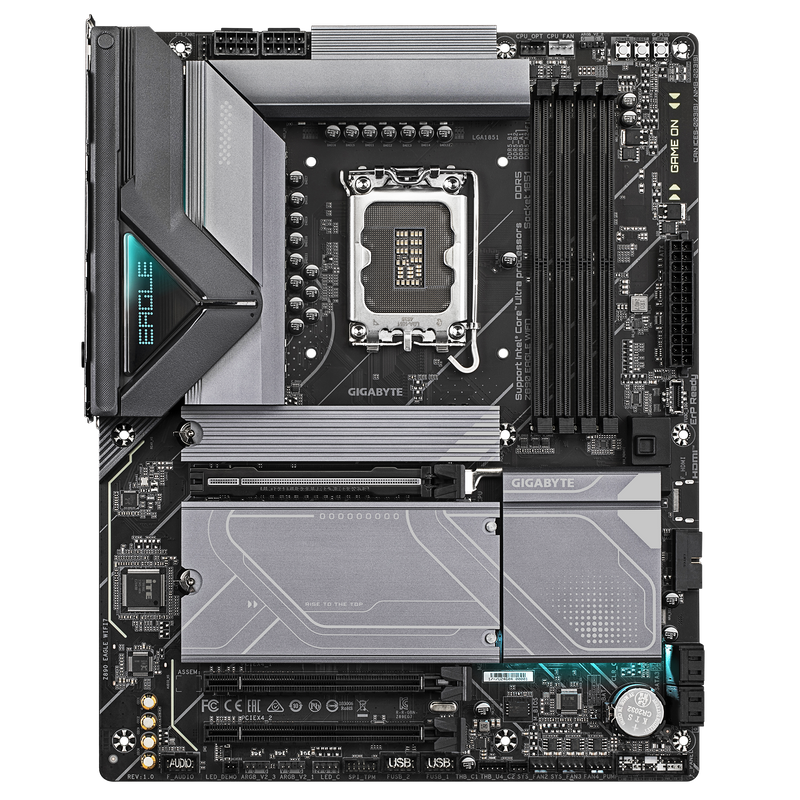

GIGABYTE Z890 EAGLE WIFI7 DDR5,LGA 1851 ATX Motherboard


價格:
特價HK$2,080.00 原價HK$2,159.00

描述

Z890 EAGLE WIFI7

    • CPU
      LGA1851 socket: Support for Intel® Core™ Ultra Processors
      L3 cache varies with CPU
      * Please refer to "CPU Support List" for more information.
    • Chipset
      Intel® Z890 Express Chipset
    • Memory
      Support for DDR5 8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
      4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
      Dual channel memory architecture
      Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
      Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
      Support for Extreme Memory Profile (XMP) memory modules
      Support CUDIMM memory module
      (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
    • Onboard Graphics
      Integrated Graphics Processor-Intel® HD Graphics support:
      - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz

      * Support for DisplayPort 2.1 version


      - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

      * Support for DisplayPort 2.1 version


      (Graphics specifications may vary depending on CPU support.)
    • Audio
      Realtek® Audio CODEC
      High Definition Audio
      2/4/5.1/7.1-channel

      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

    • LAN
      Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    • Wireless Communication module
      MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
      - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
      - BLUETOOTH 5.4
      - Support for 11be 160MHz wireless standard
      Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
      - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
      - BLUETOOTH 5.4
      - Support for 11be 160MHz wireless standard
      (Actual data rate may vary depending on environment and equipment.)

      * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
      ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.

    • Expansion Slots
      CPU:
      - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

      * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.


      Chipset:
      - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)
    • Storage Interface
      CPU:
      - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
      - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
      Chipset:
      - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
      - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
      - 4 x SATA 6Gb/s connectors
      RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
      RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
    • USB
      CPU:
      - 1 x USB4® USB Type-C® port on the back panel
      Chipset:
      - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
      - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
      - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
      Chipset+2 USB 2.0 Hubs:
      - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    • Internal I/O Connectors
      1 x 24-pin ATX main power connector
      2 x 8-pin ATX 12V power connectors
      1 x CPU fan header
      1 x CPU fan/water cooling pump header
      3 x system fan headers
      1 x system fan/water cooling pump header
      3 x addressable RGB Gen2 LED strip headers
      1 x RGB LED strip header
      4 x M.2 Socket 3 connectors
      4 x SATA 6Gb/s connectors
      1 x front panel header
      1 x front panel audio header
      1 x USB Type-C® header, with USB 3.2 Gen 2 support
      1 x USB 3.2 Gen 1 header
      2 x USB 2.0/1.1 headers
      2 x Thunderbolt™ add-in card connectors
      1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
      1 x power button
      1 x Q-Flash Plus button
      1 x reset button
      1 x reset jumper
      1 x Clear CMOS jumper

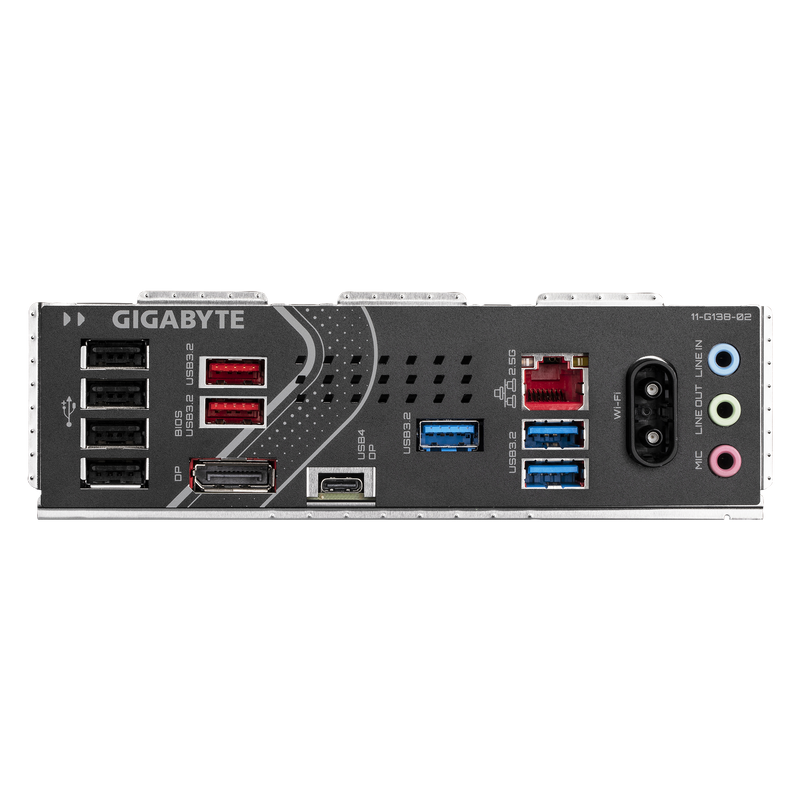

    • Back Panel Connectors
      1 x USB4® USB Type-C® port (DisplayPort (Note))
      2 x USB 3.2 Gen 2 Type-A ports (red)
      3 x USB 3.2 Gen 1 ports
      4 x USB 2.0/1.1 ports
      1 x DisplayPort (Note)
      2 x antenna connectors (2T2R)
      1 x RJ-45 port
      3 x audio jacks

      (Note) Actual support may vary by CPU.
    • I/O Controller
      iTE® I/O Controller Chip
    • H/W Monitoring
      Voltage detection
      Temperature detection
      Fan speed detection
      Water cooling flow rate detection
      Fan fail warning
      Fan speed control

      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

    • BIOS
      1 x 256 Mbit flash
      Use of licensed AMI UEFI BIOS
      PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Unique Features
      Support for GIGABYTE Control Center (GCC)

      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


      Support for Q-Flash
      Support for Q-Flash Plus
      Support for Smart Backup
    • Bundled Software
      Norton® Internet Security (OEM version)
      LAN bandwidth management software
    • Operating System
      Support for Windows 11 64-bit
    • Form Factor
      ATX Form Factor; 30.5cm x 24.4cm
