節省 $69.00
GIGABYTE
價格:
HK$2,130.00 HK$2,199.00

描述

  • Central Processing Unit (CPU)
    AMD AM5 socket, supports:
    AMD Ryzen™ 9000 series processors/
    AMD Ryzen™ 8000 series processors/
    AMD Ryzen™ 7000 series processors
    (Please visit GIGABYTE website for the list of supported processors)
  • Chipset
    AMD B850
  • Memory
    Supports DDR5 8200(OC) /8000(OC) / 7950(OC) / 7900(OC) / 7800(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s
    4 DDR5 DIMM slots, supporting up to 256 GB (single slot supports 64 GB capacity)
    Supports dual channel memory technology
    Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory
    Supports AMDEXtended Profiles forOverclocking (AMDEXPO™) and ExtremeMemory Profile (XMP) memory
    (CPU and memory configuration may affect the supported memory type, speed, and number of DRAM modules. Please visit GIGABYTE's website for a complete list of supported memory modules.)
  • Display functions
    Onboard AMD Radeon™ graphics processor:
    - 1 HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    * Supports HDMI 2.1, HDCP 2.3 and HDR.
    ** Only supports interfaces compatible with the native HDMI 2.1 TMDS specification.


    (The supported specifications of the display function will vary depending on the CPU used.)
  • Sound
    Built-in Realtek® ALC1220 chip

    * The audio output jack on the rear audio source socket supports DSD audio.


    Support High Definition Audio
    Support 2/4/5.1/7.1 channels

    * The audio source jack function can be redefined through audio software. To enable 7.1-channel audio output, please enter the audio software settings.


    Support S/PDIF output
  • network
    Built-in Realtek® 5GbE network chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless communication module
    Realtek® Wi-Fi 7 RTL8922AE
    - 802.11a, b, g, n, ac, ax, be, supports 2.4/5/6 GHz wireless bands
    - BLUETOOTH 5.4
    - supports 11be 160MHz wireless communication standard
    (Actual transmission speed will vary depending on the usage environment and device.)

    * The full functionality of Wi-Fi 7 depends on the support of Windows 11 SV3. No relevant drivers are provided for Windows 10.
    ** The available channel numbers of Wi-Fi 7 on the 6 GHz carrier are subject to the communication regulations of each country.

  • Expansion slot
    1 PCI Express x16 slot (PCIEX16), built into the CPU:
    AMD Ryzen™ 9000/7000 series processors, support PCIe 5.0 and x16 operation specifications
    AMD Ryzen™ 8000 series-Phoenix 1 processors, support PCIe 4.0 and x8 operation specifications
    AMD Ryzen™ 8000 series-Phoenix 2 processors, support PCIe 4.0 and x4 operation specifications

    * The PCIEX16 slot only supports graphics cards or NVMe SSDs. If you only want to install one graphics card, be sure to install it in the PCIEX16 slot.


    Chipset:
    - 1 PCI Express x16 slot, supporting PCIe 4.0 and x4 operation (PCIEX4)

    * Because the PCIEX4 slot shares bandwidth with the M2D_SB connector, the PCIEX4 slot will become unavailable when a device is installed in the M2D_SB connector.

  • Storage device interface
    1 M.2 connector (M2A_CPU), built into the CPU, supports Socket 3, M key, type 25110/22110/2580/2280 SSD:
    AMD Ryzen™ 9000/7000 series processors, support PCIe 5.0 x4/x2 SSD
    AMD Ryzen™ 8000 series-Phoenix 1 processors, support PCIe 4.0 x4/x2 SSD
    AMD Ryzen™ 8000 series-Phoenix 2 processors, support PCIe 4.0 x4/x2 SSD
    1 M.2 connector (M2B_CPU), built into the CPU, support Socket 3, M key, type 22110/2280 SSD:
    AMD Ryzen™ 9000/7000 series processors, support PCIe 5.0 x4/x2 SSD
    AMD Ryzen™ 8000 Series-Phoenix 1 processor, supports PCIe 4.0 x4/x2 SSD

    * When using AMD Ryzen™ 8000 Series-Phoenix 2 processors, the M2B_CPU socket is disabled.


    2 M.2 connectors (M2C_SB, M2D_SB), integrated into the chipset, support Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD
    2 SATA 6Gb/s connectors
    NVMe SSD support RAID 0, RAID 1, RAID 5, and RAID 10

    *RAID 5 is only available on AMD Ryzen™ 9000 series processors.


    SATA hard disk supports RAID 0 and RAID 1
  • USB
    Built-in CPU:
    - 1 USB Type-C® port on the back panel, supporting USB 3.2 Gen 2
    Built-in CPU + USB 3.2 Gen 1 Hub:
    - 4 USB 3.2 Gen 1 ports on the back panel
    Built-in CPU + USB 2.0 Hub:
    - 4 USB 2.0/1.1 ports on the back panel
    Built-in Chipset:
    - 1 USB Type-C® port, supporting USB 3.2 Gen 2x2, available through the internal USB header
    - 2 USB 3.2 Gen 2 Type-A ports (red) on the back panel
    - 2 USB 3.2 Gen 1 ports, available through the internal USB header
    - 4 USB 2.0/1.1 ports, available through the internal USB header
  • internal socket
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x 4-pin ATX 12V power connector
    1 x CPU fan header
    1 x CPU fan/water pump header
    4 x system fan headers
    2 x system fan/water pump headers
    3 x addressable RGB Gen2 LED strip light headers
    1 x RGB LED strip light header
    4 x M.2 Socket 3 connectors
    2 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front audio header
    1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x noise detection header
    1 x security encryption module header (for use with GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 only)
    1 x Q-Flash Plus button
    1 power button
    1 system reset button
    1 system reset pin
    2 temperature sensor pins
    1 clear CMOS data pin

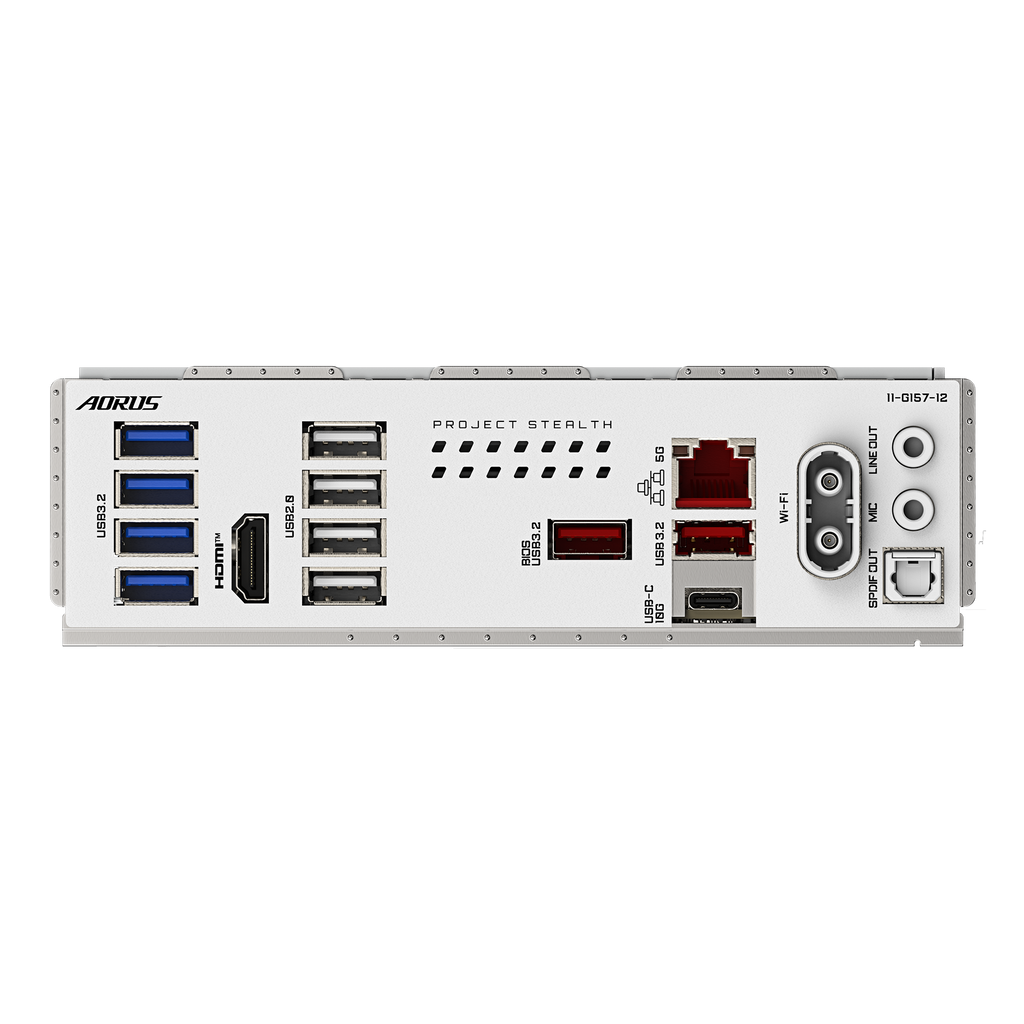

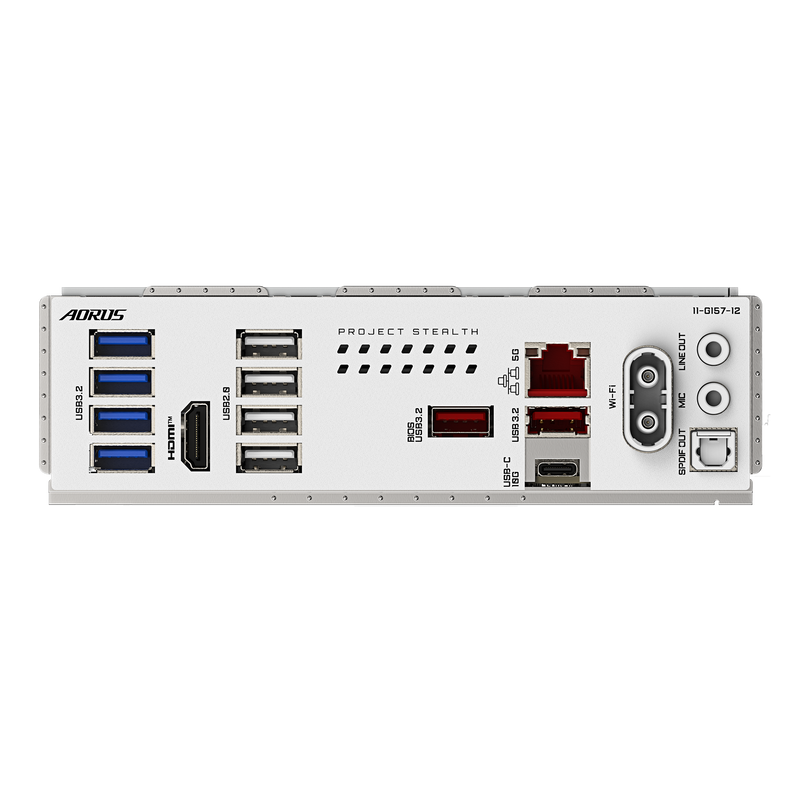

  • Rear panel device connection socket
    1 x HDMI port (Note)
    2 x antenna ports (2T2R)
    1 x USB Type-C® port with USB 3.2 Gen 2 support
    2 x USB 3.2 Gen 2 Type-A ports (red)
    4 x USB 3.2 Gen 1 ports
    4 x USB 2.0/1.1 ports
    1 x RJ-45 port
    1 x optical S/PDIF Out connector
    2 x audio jacks

    (Note) Whether this specification is supported depends on the CPU.
  • I/O Controller
    Built-in iTE® I/O controller chip
  • Hardware monitoring
    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling system flow rate detection
    Fan failure warning
    Smart fan control

    * Whether the smart fan (pump) control function is supported will depend on the different cooling fans (pumps).

  • BIOS
    1 x 512 Mbit flash
    using licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Additional Tools
    Supports GIGABYTE Control Center (GCC)

    * The programs supported by GCC may vary depending on the motherboard; the functions supported by each program may also vary depending on the motherboard specifications.


    Support Q-Flash
    Support Q-Flash Plus
    Support Smart Backup
  • Free Software
    Norton® Internet Security (OEM version)
  • operating system
    Supports Windows 11 64-bit
  • PCB Specifications
    ATX form factor; 30.5 cm x 24.4 cm
