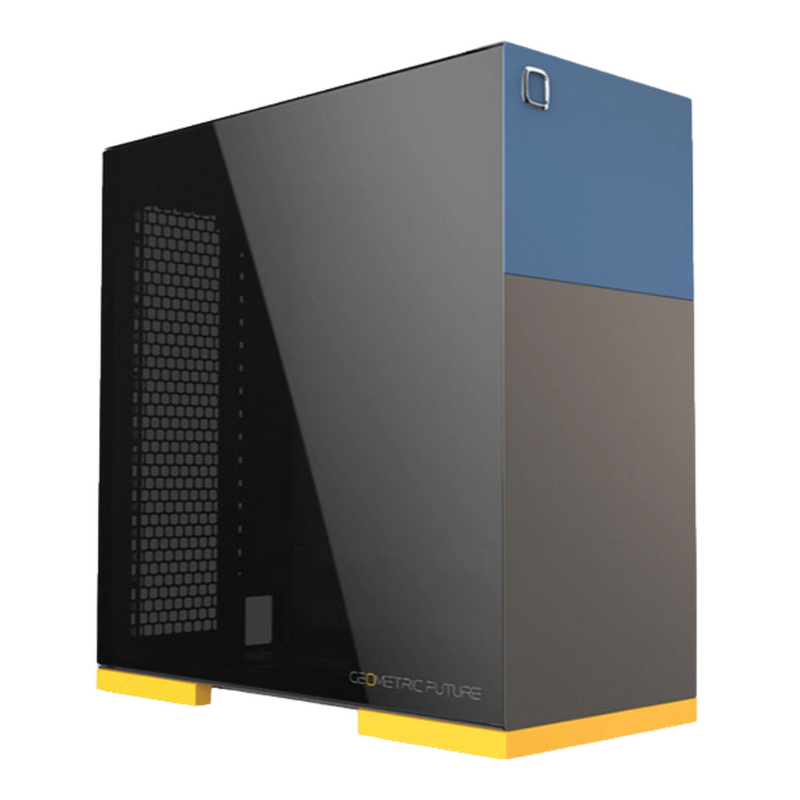

Geometric Future MODEL 8 Celluloid Tempered Glass ATX Case


價格:
特價HK$799.00

描述

Specifications
Case Type Mid Tower
Material Steel T1.0 ,Tempered Glass T4.0
Product Dimension ( H x W x D ) 500×230×500mm, 19.7"×9.1"×19.7"
Drive Bay Max : 3x3.5'', 3x2.5''/ 6x2.5'' tray
M/B Compatibility

E-ATX(12"×13"), ATX, Micro-ATX, Mini-ITX

Power Supply PSII : ATX 12V(Length < 220 mm)

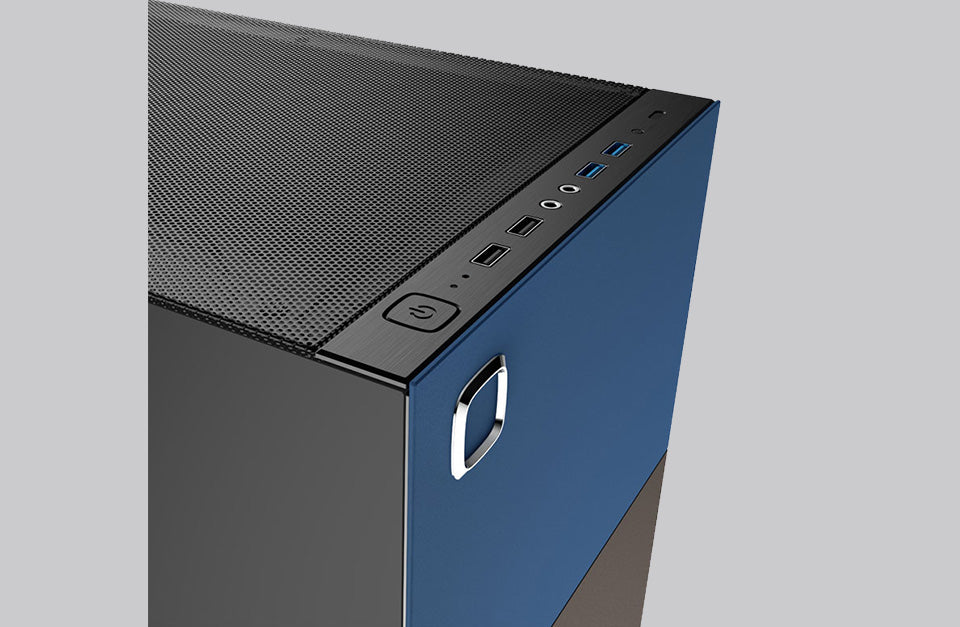

I/O Ports USB 3.0 x 2 , USB 2.0 x 2 , HD Audio(CTIA-SPK/MIC ) , Type – C USB3.1 Gen .2
Expansion Slots( Maximum Space) PCI-E x 7:Length<400mm(No Cooling of bottom) / Width <175mm
Lateral PCI-E x 3:Length<412mm(No Cooling of bottom) / Width<150mm ( CPU Heatsink Height<105mm) /  Height<65mm
Thermal Solution

Top : 120mm Fan x 120mm Radiator (Optional)

Rear : 120/140mm Fan x 3 420mm Radiator( Length<470mm / Thickness < 55mm ) (Optional)

360/280mm Radiator ( Length<400mm / Thickness < 65mm )(Optional)

Bottom : 120/140mm Fan x 3 360/280mm Radiator ( Length < 485mm )(Optional)

CPU  Heatsink

Height<170mm
