Essentials

Product Collection

Intel® Core™ i5 Processors (14th gen)

Code Name

Products formerly Raptor Lake

Vertical Segment

Desktop

Processor Number

i5-14500

Lithography

Intel 7

Use Conditions

PC/Client/Tablet, Workstation

CPU Specifications

Total Cores

14

# of Performance-cores

6

# of Efficient-cores

8

Total Threads

20

Max Turbo Frequency

5 GHz

Performance-core Max Turbo Frequency

5 GHz

Efficient-core Max Turbo Frequency

3.7 GHz

Performance-core Base Frequency

2.6 GHz

Efficient-core Base Frequency

1.9 GHz

Cache

24 MB Intel® Smart Cache

Total L2 Cache

11.5 MB

Processor Base Power

65 W

Maximum Turbo Power

154 W

Supplemental Information

Marketing Status

Launched

Launch Date

Q1'24

Embedded Options Available

Yes

Memory Specifications

Max Memory Size (dependent on memory type)

192 GB

Memory Types

Up to DDR5 4800 MT/s
Up to DDR4 3200 MT/s

Max # of Memory Channels

2

Max Memory Bandwidth

76.8 GB/s

ECC Memory Supported ^‡

Yes

GPU Specifications

GPU Name^‡

Intel® UHD Graphics 770

Graphics Max Dynamic Frequency

1.55 GHz

Graphics Output

eDP 1.4b, DP 1.4a, HDMI 2.1

Execution Units

32

Max Resolution (HDMI)^‡

4096 x 2160 @ 60Hz

Max Resolution (DP)‡

7680 x 4320 @ 60Hz

Max Resolution (eDP - Integrated Flat Panel)‡

5120 x 3200 @ 120Hz

DirectX* Support

12

OpenGL* Support

4.5

OpenCL* Support

3.0

Multi-Format Codec Engines

2

Intel® Quick Sync Video

Yes

Intel® Clear Video HD Technology

Yes

# of Displays Supported ^‡

4

Device ID

0x4680

Expansion Options

Direct Media Interface (DMI) Revision

4.0

Max # of DMI Lanes

8

Scalability

1S Only

PCI Express Revision

5.0 and 4.0

PCI Express Configurations ^‡

Up to 1x16+4, 2x8+4

Max # of PCI Express Lanes

20

Package Specifications

Sockets Supported

FCLGA1700

Max CPU Configuration

1

Thermal Solution Specification

PCG 2020C

T_JUNCTION

100°C

Package Size

45.0 mm x 37.5 mm

Advanced Technologies

Intel® Gaussian & Neural Accelerator

3.0

Intel® Thread Director

Yes

Intel® Deep Learning Boost (Intel® DL Boost) on CPU

Yes

Intel® Speed Shift Technology

Yes

Intel® Turbo Boost Technology ^‡

2.0

Intel® Hyper-Threading Technology ^‡

Yes

Intel® 64 ^‡

Yes

Instruction Set

64-bit

Instruction Set Extensions

Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

Idle States

Yes

Enhanced Intel SpeedStep® Technology

Yes

Thermal Monitoring Technologies

Yes

Intel® Volume Management Device (VMD)

Yes

Security & Reliability

Intel® Standard Manageability (ISM) ^‡

Yes

Intel® Control-Flow Enforcement Technology

Yes

Intel® AES New Instructions

Yes

Secure Key

Yes

Intel® OS Guard

Yes

Execute Disable Bit ^‡

Yes

Intel® Boot Guard

Yes

Mode-based Execute Control (MBEC)

Yes

Intel® Virtualization Technology (VT-x) ^‡

Yes

Intel® Virtualization Technology for Directed I/O (VT-d) ^‡

Yes

Intel® VT-x with Extended Page Tables (EPT) ^‡

Yes

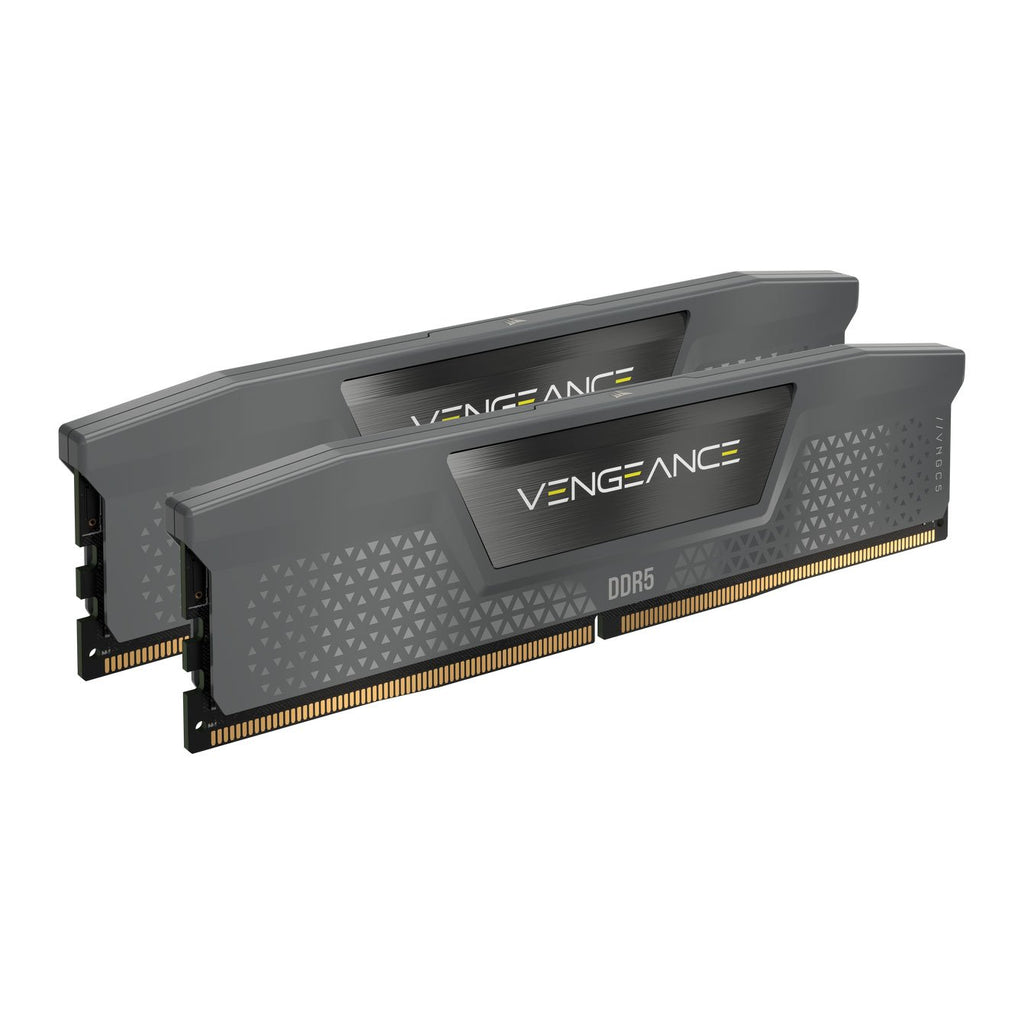

CORSAIR 64GB Kit (2x32GB) VENGEANCE CMK64GX5M2B5600Z40 DDR5 5600MHz Memory (AMD EXPO & Intel XMP 3.0)
