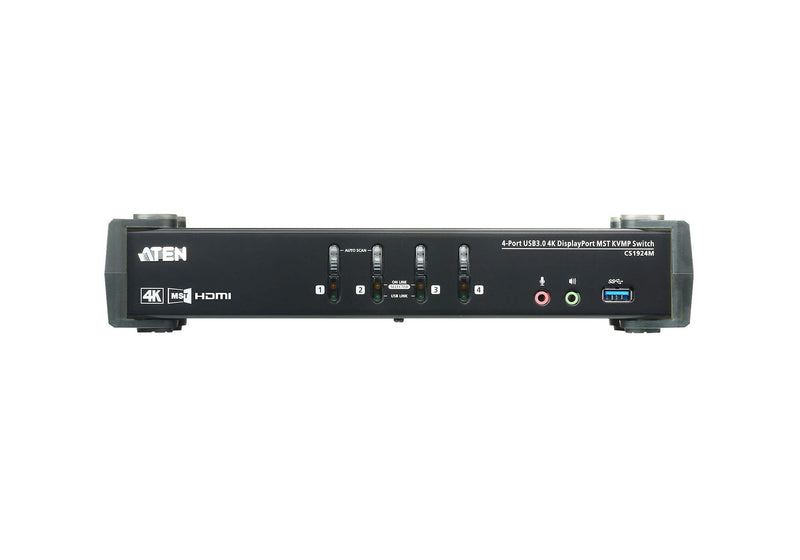

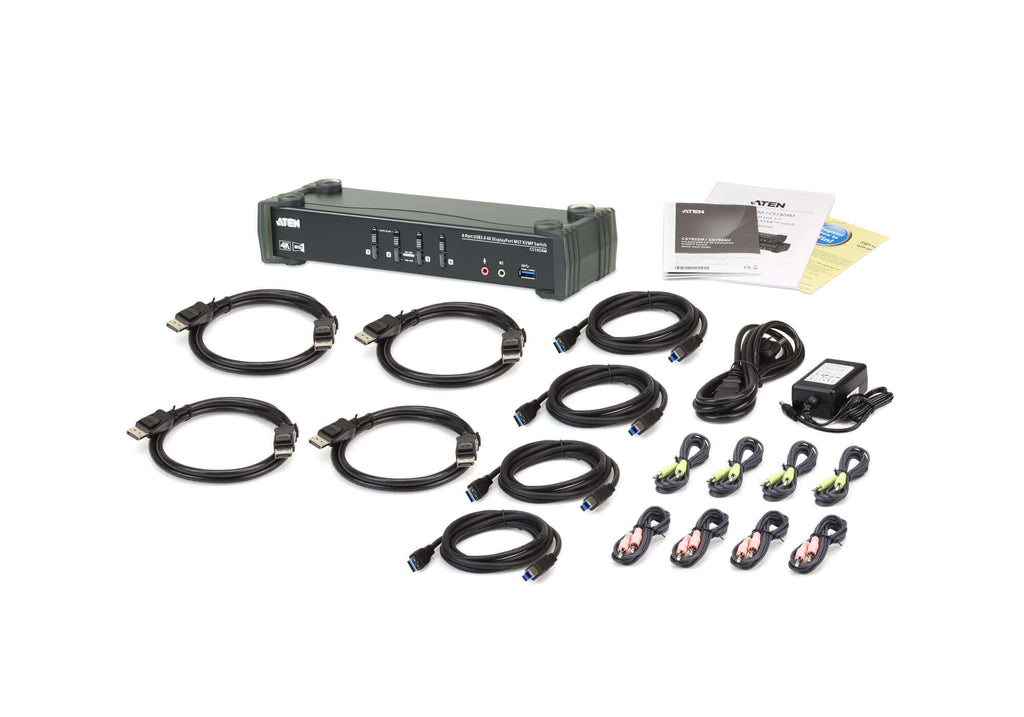

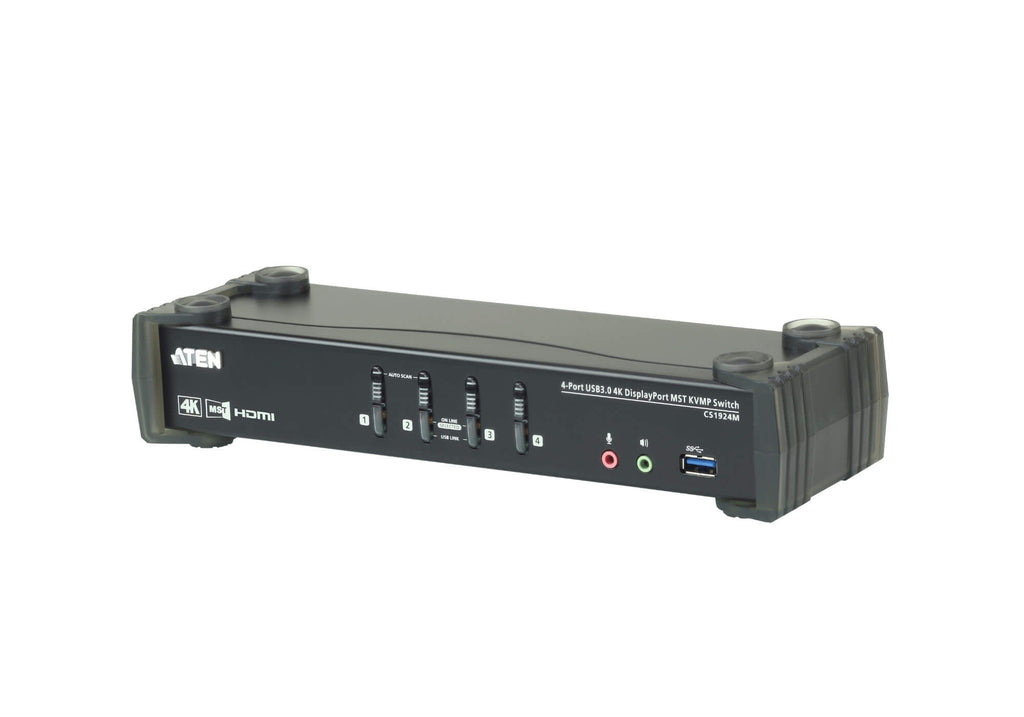

ATEN CS1924M 4-Port USB 3.0 4K DisplayPort MST KVMP Switch (Cables included)

ATEN's  world's first !!!

Built-in MST Hub (DP + HDMI dual output ) Display Port KVM!!

2/4 Port USB 3.0 4K DisplayPort MST Multi-Computer Switch - CS1922M/CS1924M

● Built-in MST Hubs: DP + HDMI dual output

● DisplayPort 1.2 display up to 4K UHD/DCI @ 60Hz

●SuperSpeed USB 3.1 (Gen 1)

● 2.1 -channel high-quality multimedia applications

●Dual-mode DisplayPort (DP++)

● Independent switching of KVM/USB/Audio

● Three switching methods cross-platform support

ATEN , the world’s No. 1 KVM Switch brand – has been innovating over the years. In order to meet the increasing visual and auditory requirements, it has recently launched the world ’s first 2/4 Port USB 3.0 4K DisplayPort with built-in MST Hub (DP + HDMI dual output ) MST multi-computer switch - CS1922M/CS1924M , can independently switch 2/4 sets of audio and video signals up to 4K and display them on DisplayPort and HDMI devices. Supports HDCP and Dual-mode DisplayPort (DP++) for easy integration with hardware devices; SuperSpeed ​​USB 3.1 (Gen 1) provides 5Gbps multimedia / file transfer speed; 2.1- channel and 3.5mm audio outputs provide high-quality audio-visual enjoyment and can be switched independently KVM/USB/ audio ; can be switched in three ways and supports PC/MAC/Linux cross-platform .

● Built-in MST Hubs: DP + HDMI dual output

CS1922M/CS1924M is the world's first multi-computer switch with built-in MST (Multi-Stream Transport) Hub , supporting DisplayPort and HDMI screen dual output . Users can select MST Mode , Splitter Mode and Single Mode display according to their needs.

● DisplayPort 1.2 4K top quality HDCP perfect output

CS1922M/CS1924M supports DisplayPort 1.2 , high image quality up to 4K UHD/DCI@ 60Hz . Users can control 2/4 4K computers with a USB keyboard , mouse and display . It also supports HDCP protection standard, ensuring that high -quality audio and video such as Bluray can be perfectly presented through CS1922/CS1924 .

●SuperSpeed USB 3.1 (Gen 1)

CS1922M/CS1924M is equipped with USB 3.1 (Gen 1) , which can provide a transfer rate of 5Gbps , which is 10 times faster than the previous generation USB 2.0 . The access speed is faster, and the application is more convenient and efficient.

Supports Dual -mode DisplayPort (DP++)

CS1922M/CS1924M supports Dual-mode DisplayPort (DP++) , and users can use it with an HDMI/DVI adapter . When the Dual-mode chipset detects the adapter, it can automatically switch to HDMI/DVI mode to facilitate the use of different hardware.

● HD 2.1 channel and 3.5mm audio output

The DisplayPort output of CS1922M/CS1924M can provide 2.1 -channel HD Audio , and the body is also equipped with a 3.5mm port for 2.0 -channel output .

● Independent switching of KVM/USB/Audio

To facilitate different applications, users can independently switch the KVM/USB/3.5mm port audio connected to CS1922M /CS1924M .

● Three switching methods cross-platform support

Users can use the CS1922M/CS1924M 's three switching methods: panel buttons / hot keys / mouse wheel , which greatly improves the flexibility of computer switching. Compatible with Windows/Mac/Linux , higher flexibility of use.
