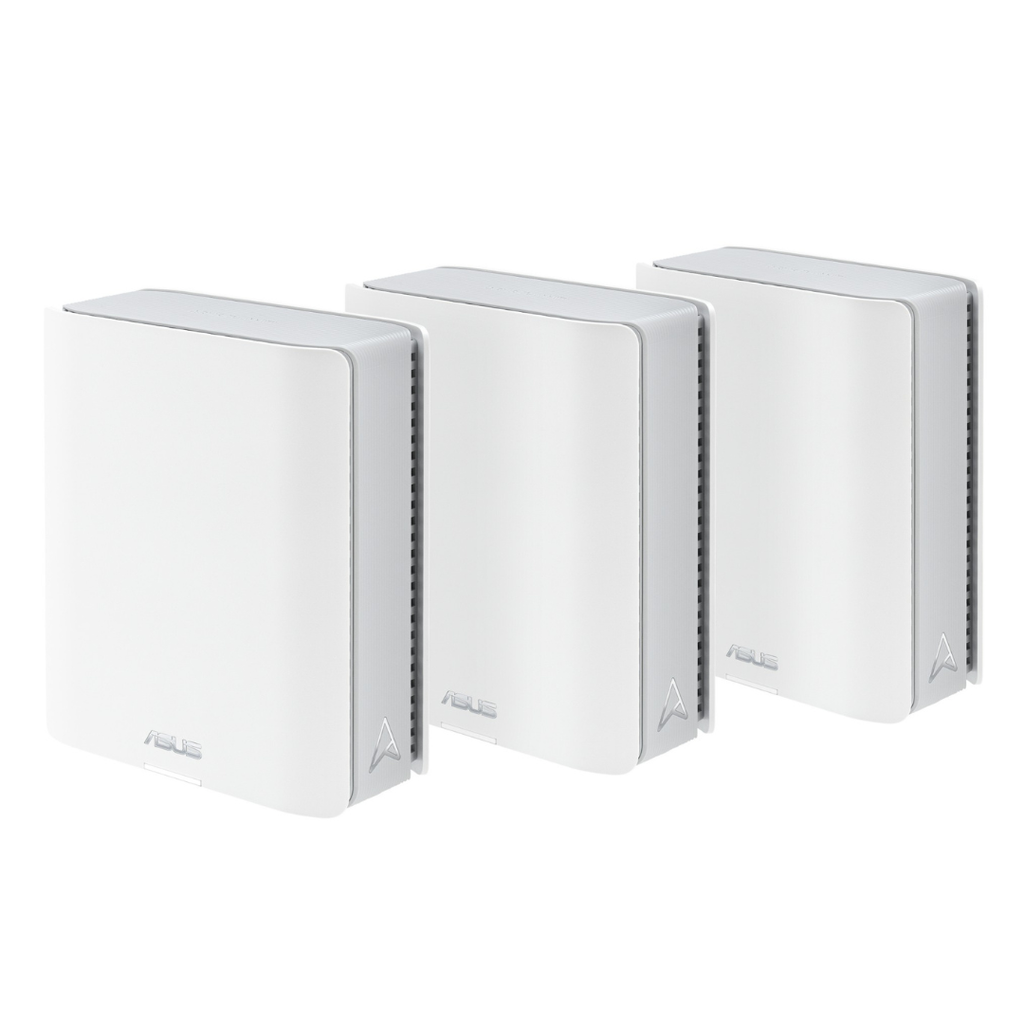

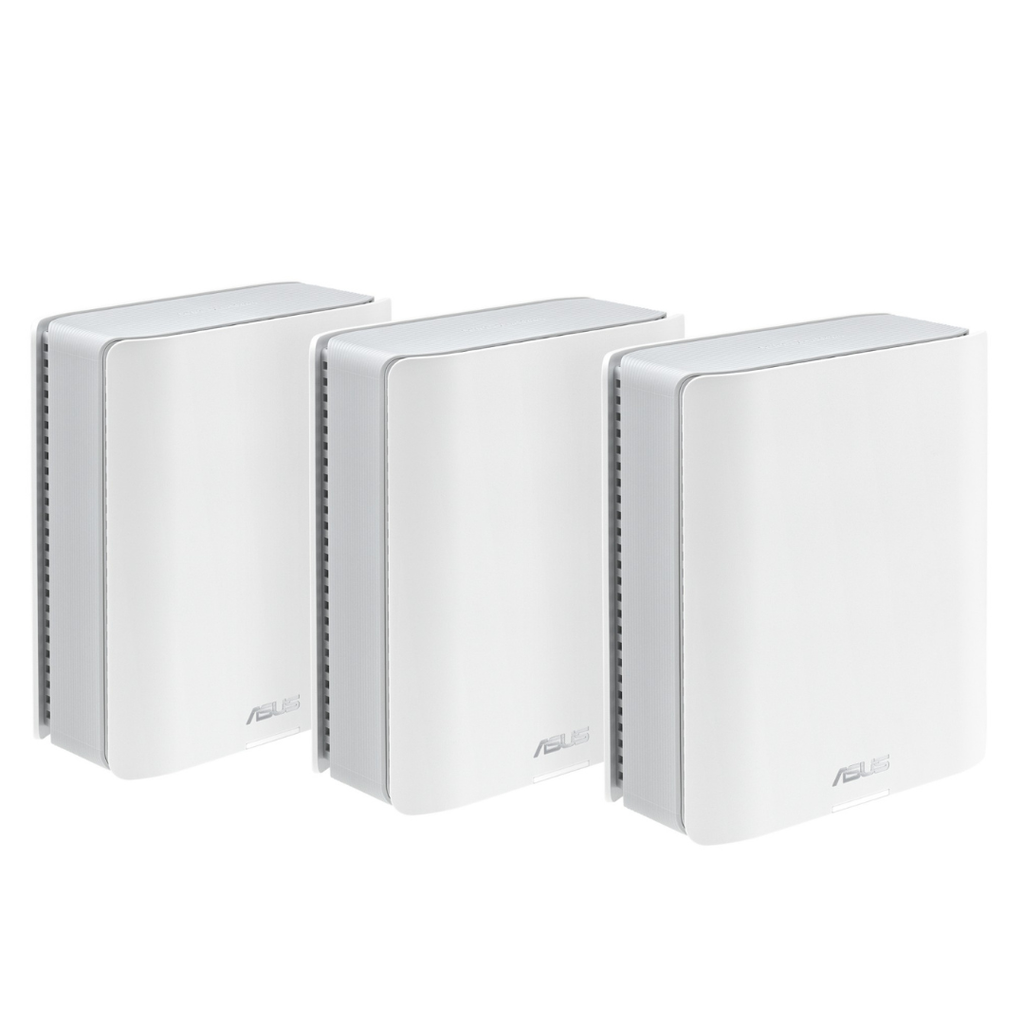

ASUS ZENWIFI BT8(3-PK)/WHITE BE14000 Tri Band Mesh WiFi System (NE-AZBET8C)

BT8(W-3-PK)

IPv6
IPv4
WiFi 7 (802.11be)
WiFi 6E (802.11ax)
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a

BE14000 ultimate BE performance : 688+4323+8643 Mbps

WiFi 7 (802.11be) (6GHz): up to 8643 Mbps
WiFi 7 (802.11be) (5GHz): up to 4323 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps

Internal antennas x 7

6GHz 3x3
5GHz 3x3
2.4GHz 2x2

RAM 1GB , Flash 128MB

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160/320 MHz bandwidth

6 GHz
5 GHz
2.4 GHz

Access Point Mode
AiMesh Node Mode
Wireless Router Mode

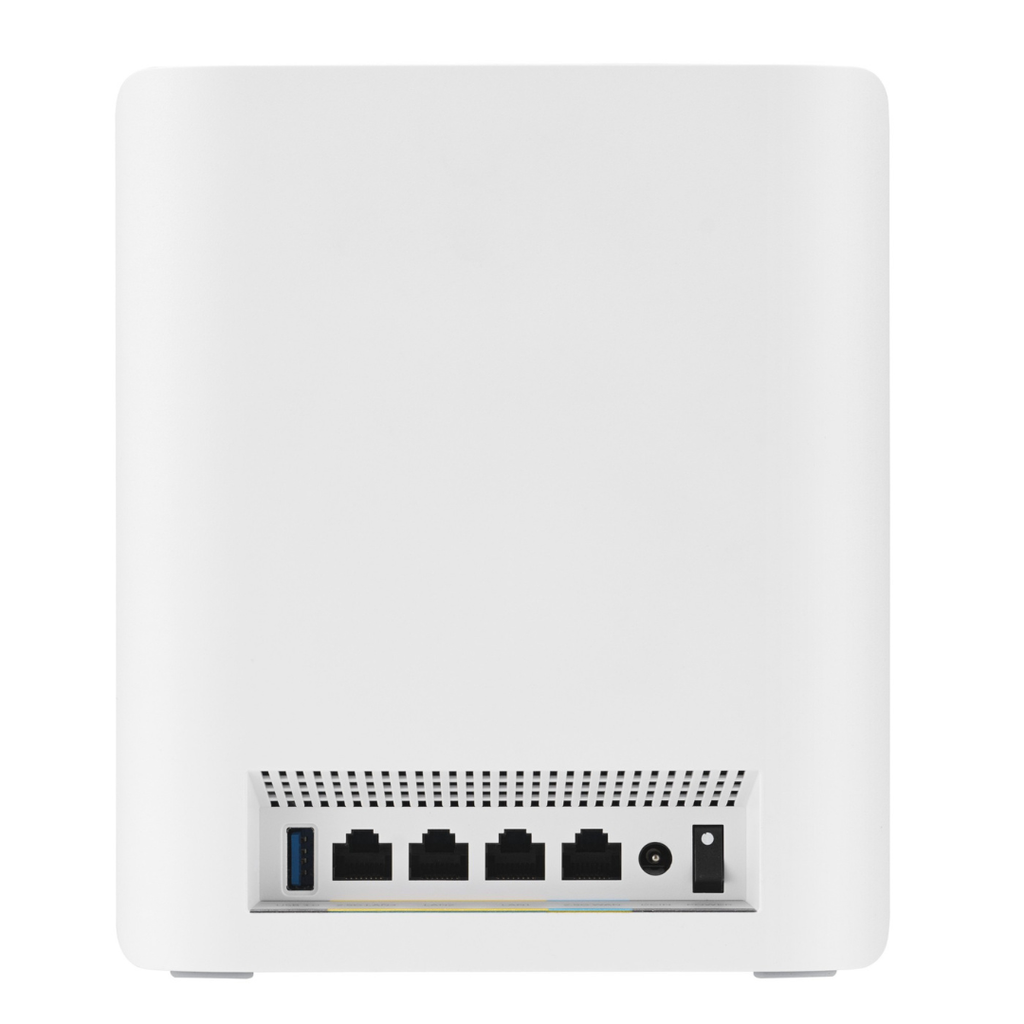

2.5G WAN x 1
2.5G LAN x 1
1G LAN x 2
USB 3.0 x1

WPS button, Reset button, Power switch

Power x 1

AC Input : 110V~240V(50~60Hz)
DC Output : 12V with max. 3A current

ZenWiFi BT8
RJ45 cable
Power adapter
Warranty card
Quick start guide

159 x 72 x 186 mm

Content may vary in different regions and packages.

AiMesh, Primary AiMesh router, AiMesh node

Time Scheduling, Reward, Parental Control - Safe Browsing, Parental Control Customized Internet schedule

ASUS Router APP

"The Guest Network provides Internet connection for guests but restricts access to your local network.", Guest Network

AiProtection, VPN, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS, Let's Encrypt, DNS-over-TLS, Security Scan, Firewall

有, Malicious site blocking, 有, Infected Device Prevention and Blocking

Instant Guard, VPN Client L2TP, VPN Client OVPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server OVPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion

有, Bandwidth Monitor, Bandwidth limiter, Traditional QoS, 有, 有, 有

有, 有, Android tethering, Port forwarding, Port triggering, DMZ, DDNS

DHCP Server, IGMP snooping, IPTV, 有, Manually assign IP address, Wake on LAN (WOL)

MU-MIMO, UTF-8 SSID, 有, 有, 有, 有, 有, 有

Android tethering, 有, 有, 有, 有, 有, 有, 有, 有, 有, 有

Diagnosis tools, Feedback system, System log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update

Support Google Assistant
