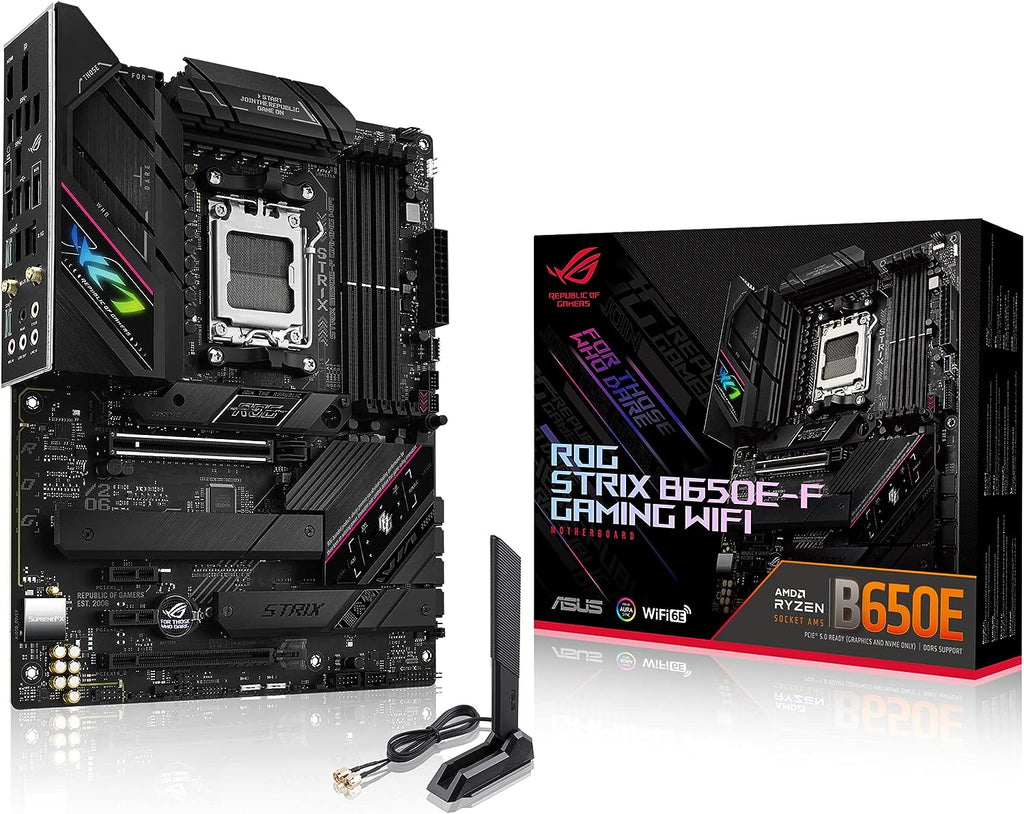

ASUS ROG STRIX B650-F GAMING WIFI
ASUS ROG Strix B650E-F Gaming WiFi AMD Ryzen AM5 ATX motherboard, 12 + 2 power stages, DDR5, three M.2 slots, PCIe 5.0, WiFi 6E, 2.5G LAN, USB 3.2 Gen 2x2 Type-C port, and Aura Sync RGB
- AMD Socket AM5: Ready for AMD Ryzen 7000 Series desktop processors

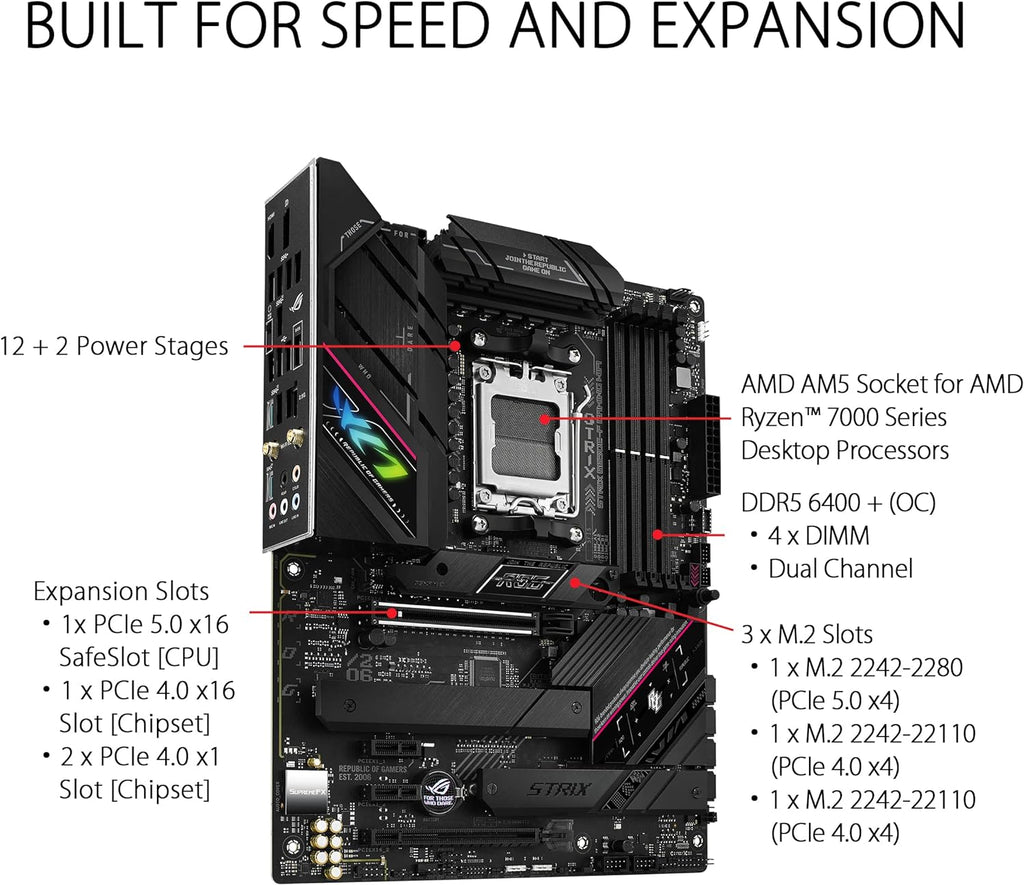

- Robust Power Solution: 12 + 2 power stages with 8 + 4 pin ProCool power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors

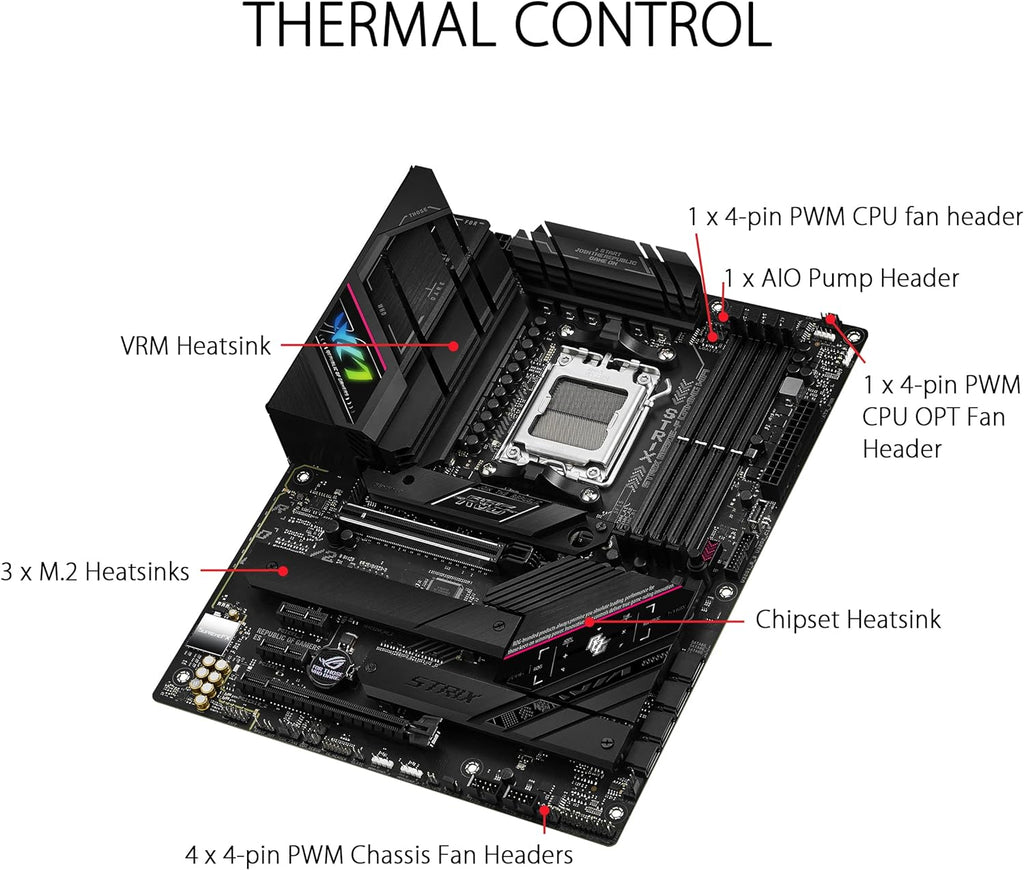

- Optimized Thermal Design: Massive VRM heatsinks with strategically cut airflow channels and high conductivity thermal pads
- Next-Gen M.2 Support: One PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots, all with heatsinks to maximize performance

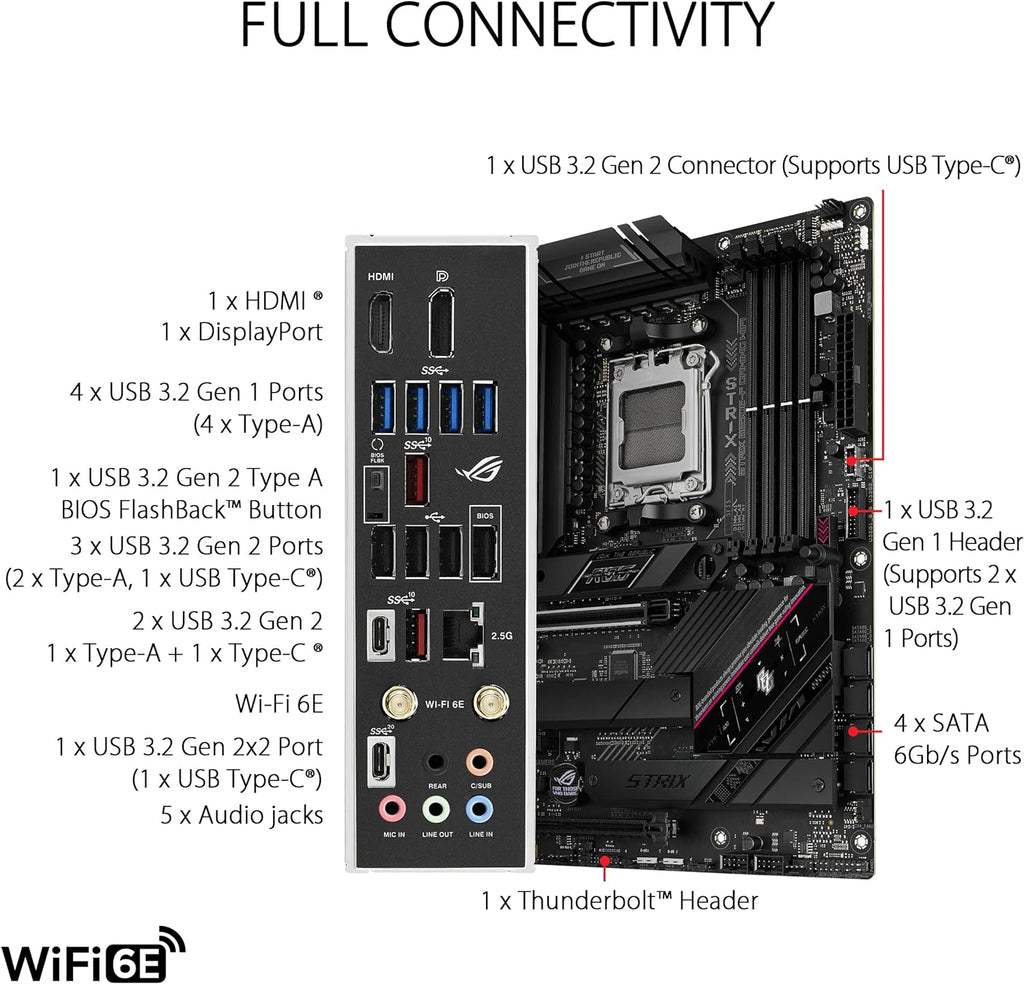

- Advanced Connectivity: One USB 3.2 Gen 2x2 Type-C and ten additional rear USB ports, USB 3.2 Gen 2 Type-C front-panel connector, HDMI 2.1, DisplayPort 1.4, and one PCIe 5.0 x16 SafeSlot
- High-Performance Networking: On-board WiFi 6E (802.11ax), Bluetooth 5.2, and Intel 2.5G Ethernet with ASUS LANGuard
- Intelligent Control: ASUS-exclusive Two-Way AI Noise Cancelation and AI Networking

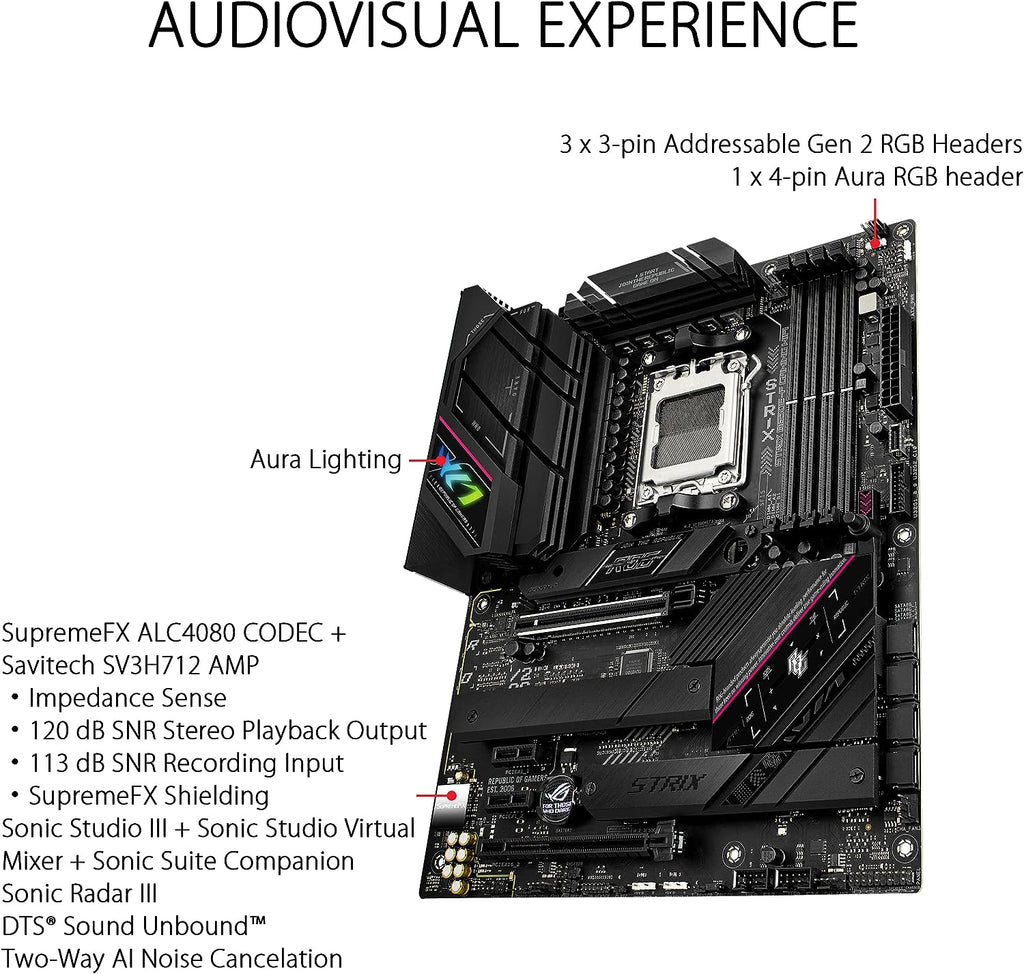

- Immersive Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS Sound Unbound and Sonic Studio III
