描述
ROG Rapture GT6
模型名稱
GT6(B-2-PK)
Design
Black Moonlight White
網路標準
Wi-Fi 6 (802.11ax)
IPv4
IPv6
向後相容於802.11a/b/g/n/ac Wi-Fi
產品區段
AX10000 ultimate AX performance
數據速率
2.4GHz AX: 2x2 (Tx/Rx) 1024 QAM 20/40MHz, up to 574Mbps
5G-1Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, 達4804Mbps
5G-2Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, 達4804Mbps
天線
Internal antenna x 9
傳送/接收
2.4 GHz 2 x 2
5 GHz-1 4 x 4
5 GHz-2 4 x 4
處理器
1.7GHz tri-core processor
記憶體
256MB Flash 512MB DDR4 RAM
Wi-Fi技術
OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
運作頻率
2.4G Hz 5 GHz-1 5 GHz-2
Operating Mode
Wireless router mode Access point mode Aimesh mode

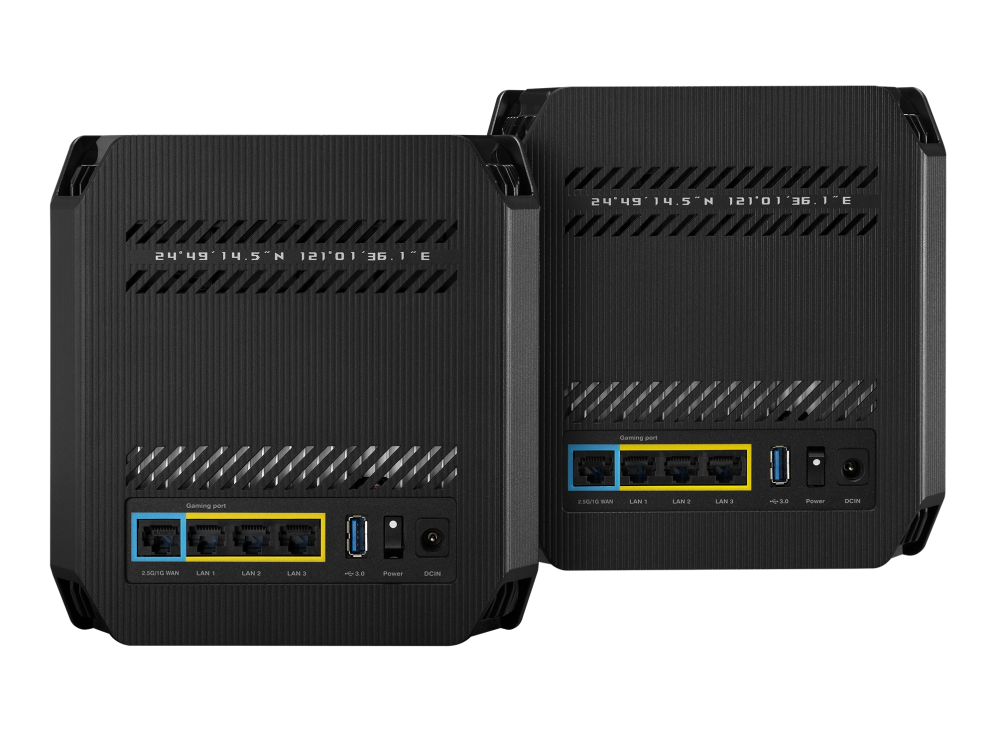

連接埠
1 x 2.5 Gigabit WAN Port 3 x Gigabit LAN Ports 1 x USB 3.2 Gen 1x1 Port
按鍵
WPS Button Reset Button Power Switch
LED指示燈
Power x 1
電源
AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current
套包內容
ROG Rapture GT6 RJ-45 Cable Power Adapter Quick Start Guide Warranty Card
產品重量 (克)
880 g
Product Dimensions
172.3 x 78.1 x 176.75 mm
AiMesh
是
遊戲
是
家長控制
是
Guest Network
是
Guest Network Connection time limit
Security
WiFi Encryption : WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, Open System
是
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : Max 64 rules
• Maximum Firewall Network Service Filter : Max 32 rules
• Maximum Firewall URL Filter : Max 64 rules
AiProtection
AiProtection Pro
是
VPN
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
訊務控制
是
• Traffic Analysis Period : Daily, Weekly, Monthly
WAN
Dual WAN
3G / 4G LTE Dongle
4G / 5G Auto Mobile Tethering
Port Forwarding
• Maximum Port Forwarding Rule : 64
Port Triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough, PPPoE relay
LAN
DHCP Server
IGMP Snooping
IPTV
LAN Link Aggregation
Manually Assign IP Address
Wake on LAN (WOL)
無線
是
• Maximum MAC Filters : 64
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
USB應用
4G / 5G Auto Mobile Tethering
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges
管理
Configuration Backup and Restore
Diagnosis Tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
