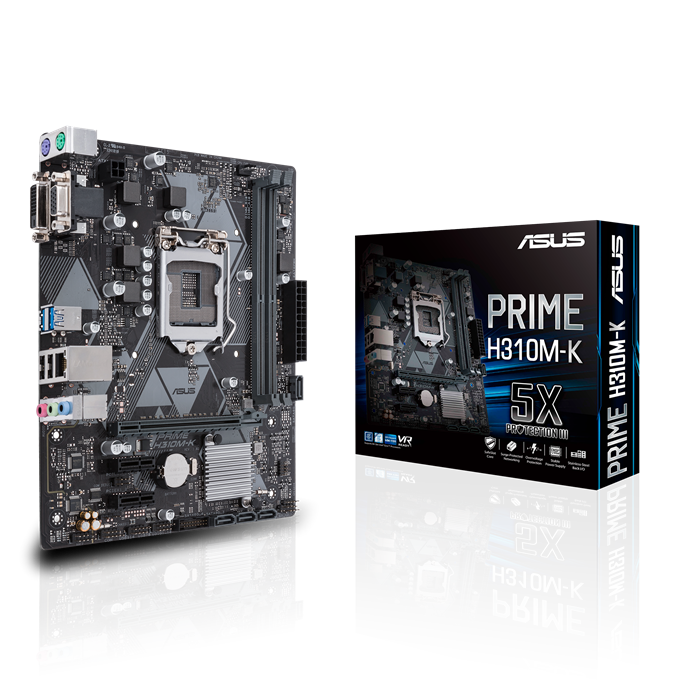

ASUS PRIME H310M-K DDR4,LGA 1151 mATX Motherboard

節省 $100.00

價格:
特價HK$455.00 原價HK$555.00

描述

型號
PRIME H310M-K
CPU
Intel® Socket 1151 for 8th Generation Core™ i7 /Core™ i5 /Core™ i3 /奔腾®/赛扬® Processors
* 有關支援的 CPU 型號資訊,請參閱www.asus.com 網站內容。
支援 Intel® Turbo Boost 技術2.0
Supports Intel® 14 nm CPU
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
晶片組
Intel® H310
系統記憶體
2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
雙通道 Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* 有關記憶體合格廠商清單(QVL)的相關資訊,請參閱 www.asus.com 網站或本使用手冊。
* The maximum memory frequency supported varies by processor
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
顯示晶片
Integrated Graphics Processor- Intel® HD Graphics support
支援多 VGA 輸出 : DVI-D/D-Sub ports
- Supports DVI-D with max. resolution 1920  x 1200  @ 60 Hz
- Supports D-sub with max. resolution 1920  x 1200  @ 60  Hz
最大共享記憶體1024  MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
擴充槽
1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
2 x PCIe 2.0 x1
儲存裝置
Intel® H310 Chipset :
4 x SATA 6Gb/s port(s), gray,
LAN
Realtek® RTL8111H, 1 x Gigabit LAN
音效
Realtek® ALC887 8通道 高傳真音效 CODEC
- 支援 : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports
Intel® H310 Chipset :
4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
Intel® H310 Chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
獨特功能
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 4  Phase digital power design
ASUS OptiMem:
- Optimem (Improved DDR4 stability)
ASUS EPU :
- EPU
華碩獨家功能 :
- AI Suite 3
- Ai Charger
- PC Cleaner
- File Transfer
華碩靜音散熱解決方案 :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-DIMM
背板 I/O 埠
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x LAN (RJ45) 連接埠
3 x 音訊插孔
2 x USB 3.1 Gen 1 (blue) Type-A, up to 5Gbps
2 x USB 2.0
Internal I/O
1 x USB 3.0 接頭支援額外的 2 USB 3.0 連接埠 (19-pin)
2 x USB 2.0 接頭支援額外的 4 USB 2.0 連接埠
1 x COM port(s) 接頭
4 x SATA 6Gb/s 接頭
1 x CPU 風扇接頭(1 x 4 -pin)
1 x 機殼風扇接頭 (1 x 4 -pin)
1 x S/PDIF 輸出接頭
1 x 24-pin EATX 電源接頭
1 x 4-pin ATX 12V 電源接頭
1 x 前面板音訊接頭 (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Speaker connector
配件
使用者手冊
2 x Serial ATA 6.0Gb/s 纜線
I/O Shield
1 x Supporting DVD
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information
管理能力
WOL by PME, PXE
作業系統
Windows® 10 64-bit
主機板尺寸
mATX 主機板尺寸
8.9  inch x 7.3  inch ( 22.6  cm x 18.5  cm )
