ASUS P10S-V/4L Intel C236,DDR4,LGA 1151 ATX Workstation Motherboard


價格:
特價$1,780.00

描述

  • Processor / System Bus

    1 x Socket LGA1151
    Intel®Xeon®processor E3-1200 v6 product family
    Intel® Xeon® processor E3-1200 v5 product family
    Intel® Core™ i3 processors
    Intel® Pentium™ processors
    Intel® Celeron™ processors
  • Core Logic

    Intel® C236 Chipset
  • Memory

    Total Slots : 4 (2-channel)
    Capacity : Maximum up to 64GB UDIMM
    Memory Type :
    DDR4 2400 /2133  UDIMM non ECC and with ECC
    Memory Size :
    16GB, 8GB, 4GB
    * Refer to support page for more information
  • Expansion Slots

    Total Slot : 6
    Slot Location 1 : PCI 32bit/33MHz
    Slot Location 2 : PCI 32bit/33MHz
    Slot Location 3 : PCI 32bit/33MHz
    Slot Location 4 : PCI 32bit/33MHz
    Slot Location 5 : PCI-E x8 (Gen3 X4 Link)
    Slot Location 6 : PCI-E x16 (Gen3 X16 Link) *10
    Slot Location 7 : MIO Slot for Audio card
    Follow SSI Location#
  • Form Factor

    ATX, 12" x 9.6"
  • ASUS Features

    FAN speed control
    Rack Ready (Rack and Pedestal dual use)
    ASWM Enterprise
  • Storage

    SATA Controller :
    Intel® C236
    8 x SATA3 6Gb/s ports
    Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
    (Support Software RAID 0, 1, 5, 10 )
    SAS Controller :
    ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)
    ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional)
  • Networking

    4 x Intel® I210AT
  • Graphic

    Aspeed AST1400 with 64MB VRAM
  • On Board I/O

    1 x TPM header
    1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
    1 x USB 3.0 pin header , Up to 2 Devices
    1 x USB 2.0 pin header , Up to 2 Devices
    1 x USB connector*1
    6 x Fan Header , 4pin
    1 x Chassis Intruder
    4 x Front LAN LED
    1 x Device Power Connector*2
    1 x VGA Header
    1 x LPT

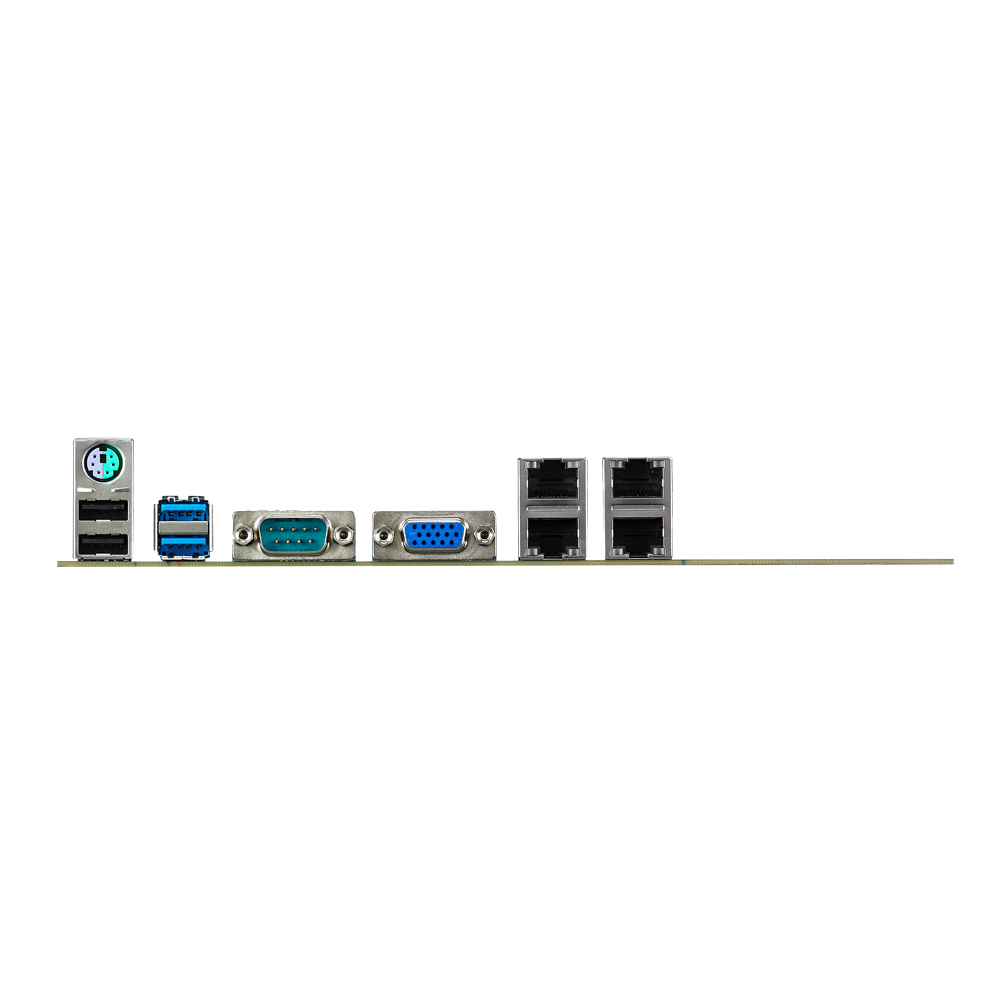

  • Back I/O Ports

    1 x External Serial Port
    2 x USB 3.1 Gen 1, 2 x USB 2.0
    1 x VGA Port
    4 x GbE LAN
    1 x PS/2, KB/Mous
  • Management Solution

    ASWM Enterprise
  • Weight

    Gift Box (1-in-1)
    Net Weight : 0.694 KG
    Gross Weight : 1.4 KG

    Bulk Pack (10-in-1)
    Net Weight : 6.8 KG
    Gross Weight : 9.6 KG
  • Environment

    Operation temperature: 10℃ ~ 35℃
    Non operation temperature: -40℃ ~ 70℃
    Non operation humidity: 20% ~ 90% ( Non condensing)
  • Accessories

    Gift Box (1-in-1)
    2 x Support CD
    1 x I/O shield
    8 x SATA 6G cables
    1 x Plate for LGA1151

    Bulk Pack (10-in-1)
    2 x Support CD
    1 x I/O shield
    1 x Plate for LGA1151
  • Monitoring

    CPU Temperature
    Fan RPM
  • Note

    *1 1 x USB 3.0 connector (Type A USB socket)
    *2 4-pin power connector
