描述

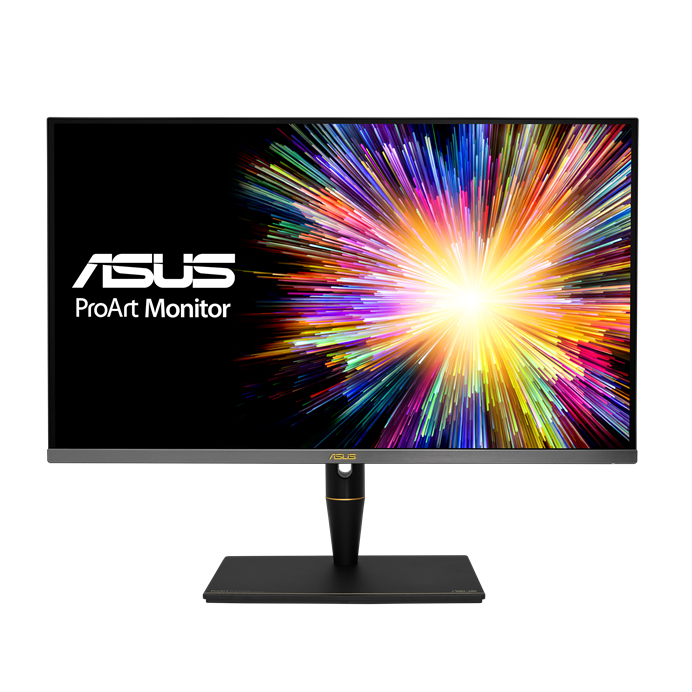

ASUS ProArt PA32UCX-PK 4K HDR IPS Mini LED 專業螢幕 - 32 吋、1200 NIT、離軸對比優化(OCO)技術、10 位元、Dolby Vision、HLG、1152 區、ΔE < 1、 89% Rec.2020 、99% DCI-P3、99.5% Adobe RGB、硬體校準、Thunderbolt™ 3、Calman Ready、顯示器遮光罩
- 32 吋 4K HDR 專業螢幕，具備 1,152 區 mini-LED 背光及 1,200 cd/m2 峰值亮度
- 從廣角檢視螢幕時，ASUS離軸對比優化(OCO)技術可減少 80% 光環效應，並為圖像中的暗色部分提供強化 7 倍的對比度。
- 真 10 位元色彩與量子點技術提供 89% Rec.2020、99.5% Adobe RGB、99% DCI-P3 及100% sRGB 色彩空間以達到極佳的色彩真實度
- 支援多種 HDR 格式 (Dolby Vision、HDR-10、HLG) 以提供栩栩如生的觀看體驗與彈性
- 領先全球搭具備Delta-E (△E) <1的 sRGB 和 Adobe RGB 色差值及 ASUS ProArt 硬體校準技術，可提供色彩準確度最佳化、均勻性及色彩設定檔回寫功能
- Thunderbolt 3 支援最高 40Gbps 資料傳輸速度，以及為外部裝置提供最高 60W 電力的 Power Delivery 供電功能
- 含 X-rite i1 Display Pro
--------------------------------------------------------
Display
Panel Size (inch) : 32
Pixels Per Inch (PPI) : 138
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 708.48 x 398.52 mm
Display Surface : Non-Glare
Backlight Type : Mini-LED
Panel Type : IPS
Viewing Angle (CR≧10, H/V) : 178°/ 178°
Pixel Pitch : 0.185mm
Resolution : 3840x2160
Color Space (sRGB) : 100%
Color Space (Adobe RGB) : 99.5%
Color Space (DCI-P3) : 99%
Color Space (Rec.2020) : 89%
Brightness (HDR, Peak) : 1,200 cd/㎡
Brightness (Typ.) : 600cd/?
Contrast Ratio (HDR, Max) : 1,000,000:1
Contrast Ratio (Typ.) : 20,000:1
Display Colors : 16.7M
Response Time : 5ms(GTG)
HDR (High Dynamic Range) Support : HDR10
HDR (High Dynamic Range) Support : HLG
HDR (High Dynamic Range) Support : Dolby Vision
Flicker-free : Yes
LCD ZBD Warranty : Yes(3 yr)
Pixels Per Inch (PPI) : 138
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 708.48 x 398.52 mm
Display Surface : Non-Glare
Backlight Type : Mini-LED
Panel Type : IPS
Viewing Angle (CR≧10, H/V) : 178°/ 178°
Pixel Pitch : 0.185mm
Resolution : 3840x2160
Color Space (sRGB) : 100%
Color Space (Adobe RGB) : 99.5%
Color Space (DCI-P3) : 99%
Color Space (Rec.2020) : 89%
Brightness (HDR, Peak) : 1,200 cd/㎡
Brightness (Typ.) : 600cd/?
Contrast Ratio (HDR, Max) : 1,000,000:1
Contrast Ratio (Typ.) : 20,000:1
Display Colors : 16.7M
Response Time : 5ms(GTG)
HDR (High Dynamic Range) Support : HDR10
HDR (High Dynamic Range) Support : HLG
HDR (High Dynamic Range) Support : Dolby Vision
Flicker-free : Yes
LCD ZBD Warranty : Yes(3 yr)
Video Feature
Trace Free Technology : Yes
ProArt Preset : Standard
ProArt Preset : sRGB
ProArt Preset : Adobe RGB
ProArt Preset : DCI-P3
ProArt Preset : Rec. 2020
ProArt Preset : DICOM
ProArt Preset : Rec. 709
ProArt Preset : HDR_PQ DCI
ProArt Preset : HDR_PQ Rec2020
ProArt Preset : HDR_HLG
ProArt Preset : Dolby Vision
ProArt Preset : User mode1
ProArt Preset : User mode2
SPLENDID Technology : 有
Color Temp. Selection : Yes(5 modes)
Color Adjustment : 6-axis adjustment(R,G,B,C,M,Y)
Gamma Adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 )
Color Accuracy : △E< 1
ASUS ProArt Hardware Calibration : Yes
ProArt Palette : Yes
QuickFit : Yes
PIP / PBP Technology : Yes
HDCP : Yes
VRR Technology : Yes (Adaptive-Sync)
Motion Sync : Yes
HDR Preview : Yes
Low Blue Light : Yes
ProArt Preset : Standard
ProArt Preset : sRGB
ProArt Preset : Adobe RGB
ProArt Preset : DCI-P3
ProArt Preset : Rec. 2020
ProArt Preset : DICOM
ProArt Preset : Rec. 709
ProArt Preset : HDR_PQ DCI
ProArt Preset : HDR_PQ Rec2020
ProArt Preset : HDR_HLG
ProArt Preset : Dolby Vision
ProArt Preset : User mode1
ProArt Preset : User mode2
SPLENDID Technology : 有
Color Temp. Selection : Yes(5 modes)
Color Adjustment : 6-axis adjustment(R,G,B,C,M,Y)
Gamma Adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 )
Color Accuracy : △E< 1
ASUS ProArt Hardware Calibration : Yes
ProArt Palette : Yes
QuickFit : Yes
PIP / PBP Technology : Yes
HDCP : Yes
VRR Technology : Yes (Adaptive-Sync)
Motion Sync : Yes
HDR Preview : Yes
Low Blue Light : Yes
Audio Feature
Speaker : Yes(3Wx2)
I/O Ports
Thunderbolt 3 x 2
DisplayPort 1.2 x 1
HDMI(v2.0) x 3
USB Hub : 3x USB 3.2 Gen 1 Type-A
Earphone Jack : Yes
USB-C Power Delivery : 65W
DisplayPort 1.2 x 1
HDMI(v2.0) x 3
USB Hub : 3x USB 3.2 Gen 1 Type-A
Earphone Jack : Yes
USB-C Power Delivery : 65W
Signal Frequency
Digital Signal Frequency : DisplayPort, Thunderbolt™ 3: 142~142 KHz (H) / 40~60 Hz (V)
HDMI: 109~142 KHz (H) / 29~65 Hz (V)
HDMI: 109~142 KHz (H) / 29~65 Hz (V)
Power Consumption
Power Consumption : 60W
Power Saving Mode : <0.5W
Power Off Mode : <0.5W
Voltage : 100-240V, 50/60Hz
Power Saving Mode : <0.5W
Power Off Mode : <0.5W
Voltage : 100-240V, 50/60Hz

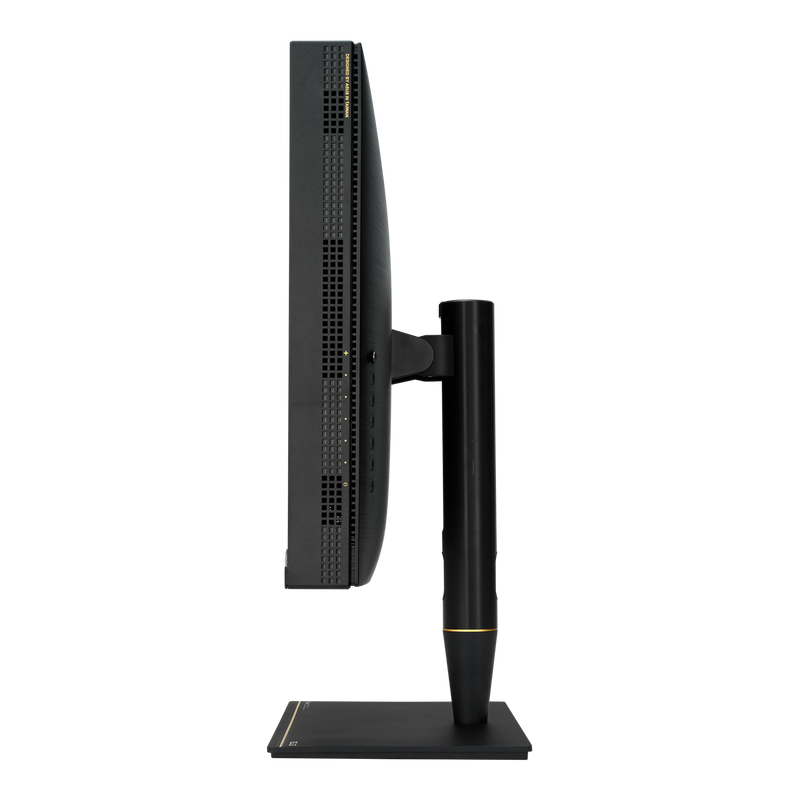

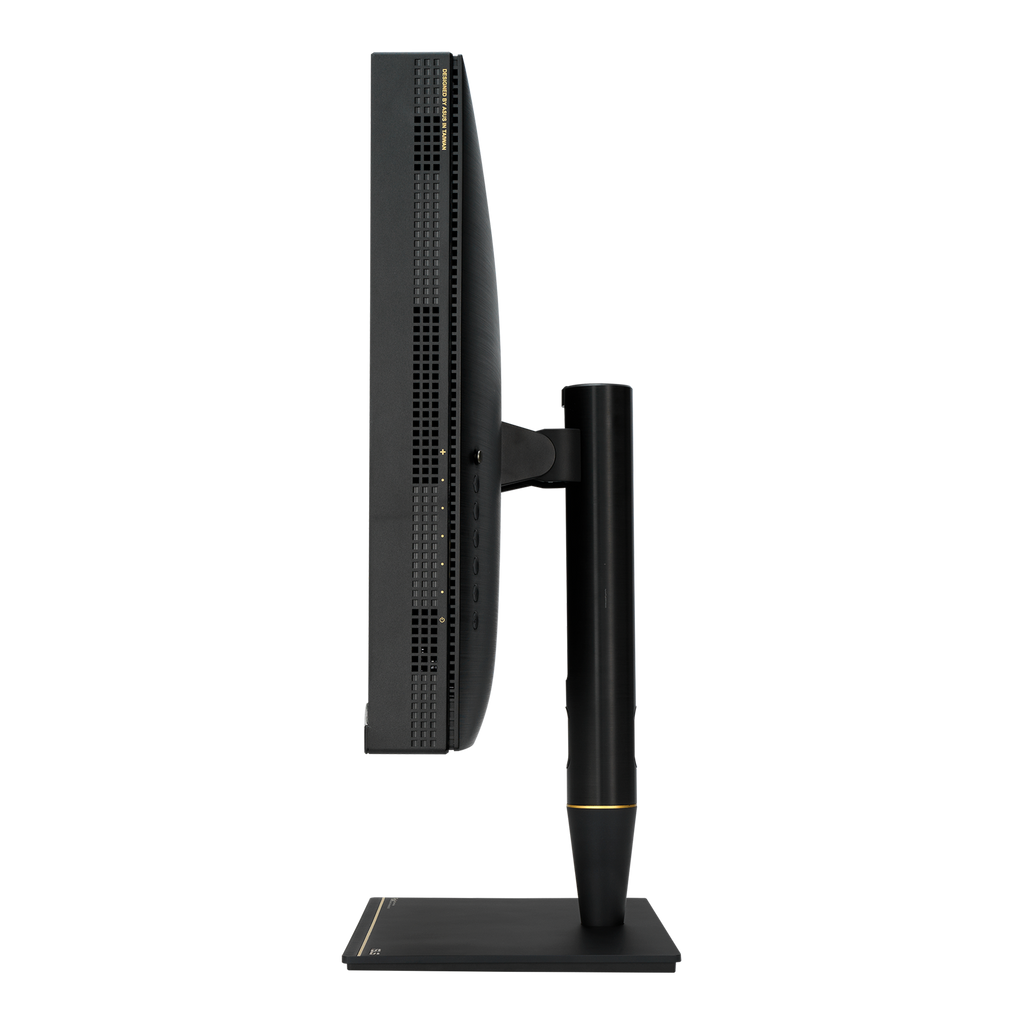

Mechanical Design
Tilt : Yes (+20° ~ -5°)
Swivel : Yes (+60° ~ -60°)
Pivot : Yes (+90° ~ -90°)
Height Adjustment : 0~130mm
Ambient Light Sensor : Yes
VESA Wall Mounting : 100x100mm
Kensington Lock : Yes
Swivel : Yes (+60° ~ -60°)
Pivot : Yes (+90° ~ -90°)
Height Adjustment : 0~130mm
Ambient Light Sensor : Yes
VESA Wall Mounting : 100x100mm
Kensington Lock : Yes
Dimensions (Esti.)
Phys. Dimension with Stand (W x H x D) : 727 x (470~600) x 240 mm
Phys. Dimension without Stand (W x H x D) : 727 x 426 x 93 mm
Box Dimension (W x H x D) : 923 x 525 x 386 mm
Phys. Dimension without Stand (W x H x D) : 727 x 426 x 93 mm
Box Dimension (W x H x D) : 923 x 525 x 386 mm
Weight (Esti.)
Net Weight with Stand : 14 Kg
Net Weight without Stand : 11 Kg
Gross Weight : 19.1 Kg
Net Weight without Stand : 11 Kg
Gross Weight : 19.1 Kg
Accessories (vary by regions)
Color pre-calibration report
DisplayPort cable
HDMI cable

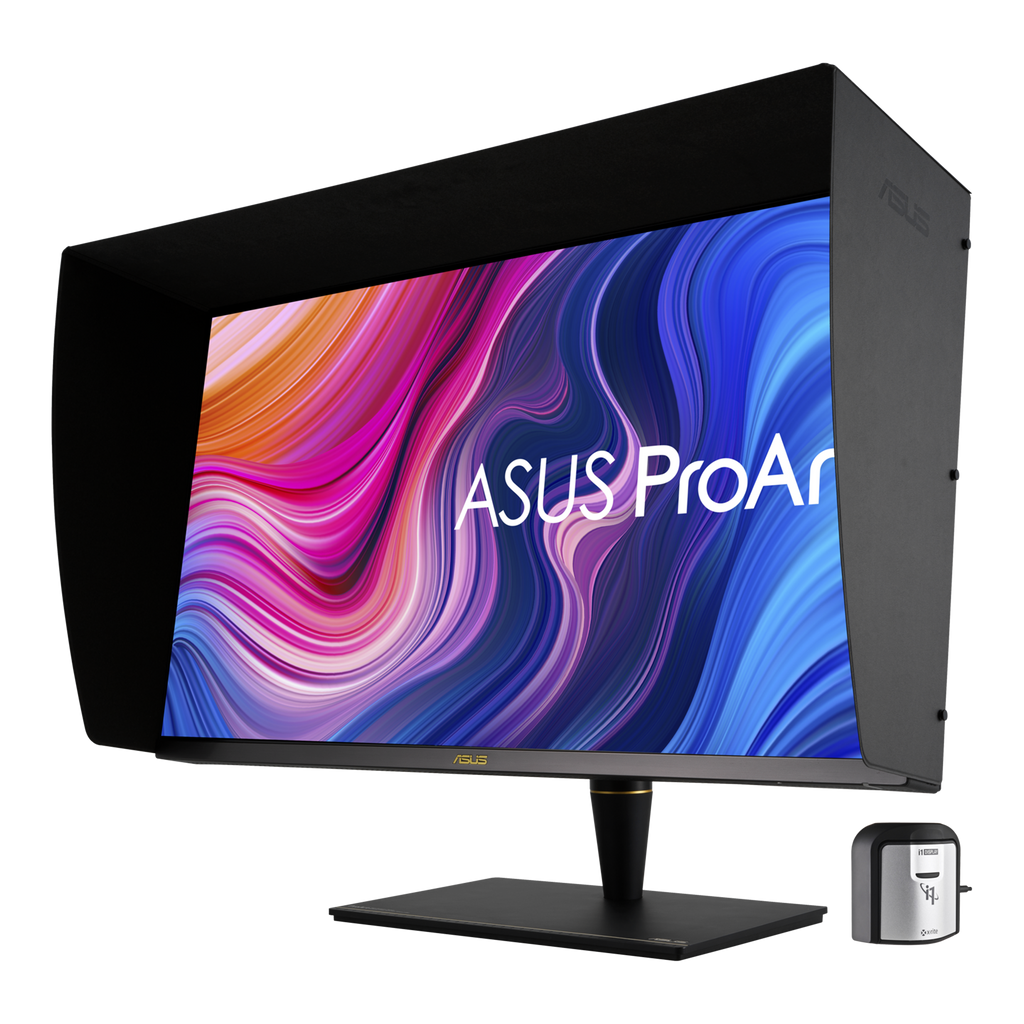

Monitor hood
Power cord
Quick release stand
Quick start guide
Thunderbolt™ 3 Cable
USB Type-C to A adapter
USB-C cable
Warranty Card
X-rite i1 Display Pro Calibrator
DisplayPort cable
HDMI cable
Monitor hood
Power cord
Quick release stand
Quick start guide
Thunderbolt™ 3 Cable
USB Type-C to A adapter
USB-C cable
Warranty Card
X-rite i1 Display Pro Calibrator
Operation Temperature / Humidity
Operation temperature : 0~45
Operation humidity : 75%
Operation humidity : 75%
Certificate
TÜV Flicker-free
TÜV Low Blue Light
VESA DisplayHDR 1000
Calman Ready
TÜV Low Blue Light
VESA DisplayHDR 1000
Calman Ready
